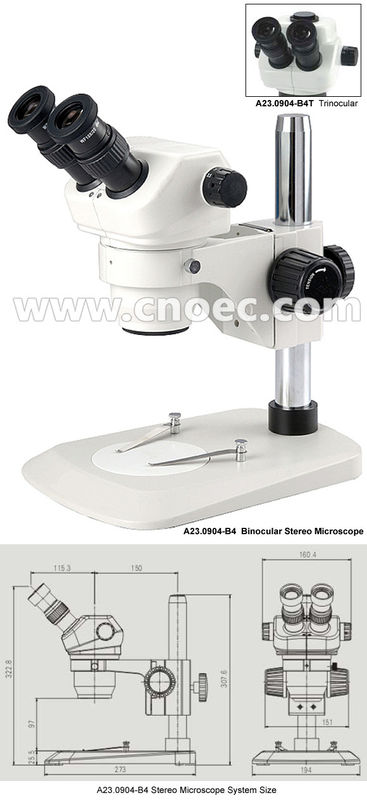

Outstanding White Gem Stereo Optical Microscope 8X - 35X A23.0904-B4
Description:
A23.0904-B4 Zoom Stereo Microscope, 0.8x-3.5x, Designed for common industry inspection and biological
observation, greenough optical, magnification 8~35x. Zoom stereo
len's magnification 0.8~3.5x, wide field, high eyepoint WF10x/20mm
eyepiece.
--0.8~3.5x Zoom Lens, with WF10x/20mm Eyepiece,
--Total Optical Magnification 8~35x
--Pole Stand, No Light Source
--Trinocular Head Splitting Ratio 50:50.
Specifications:
A23.0904-B4 Zoom Stereo Microscope, 0.8x-3.5x Specification | A23.0904-B4 | A23.0904-B4T | |
Head | Brinocular, 45° Inclined, 360° Rotatable, +/-5° Diopter Adjustable, Interpupillary Adjustment 54~75mm | o | |
Trinocular, 45° Inclined, 360° Rotatable, +/-5° Diopter Adjustable, Interpupillary Adjustment 54~75mm, Splitting Ratio 50:50 | o | ||
Zoom Range | 0.8~3.5x | ||
Zoom Ratio | 1:4.4 | ||
Eyepiece | WF10x/20mm | ||
Magnification | 8~35x | ||
Working Distance | 97mm, With Standard 1x Lens | ||
Stand | Pole Stand B4, With Focusing Knob | ||
Illumination | No Light Source | ||
A23.0904-B4 Zoom Stereo Microscope, 0.8x-3.5x Optional Accessories | |||
Eyepiece | WF15x/15mm | A51.0923-15 | |
WF20x/10mm | A51.0923-20 |
![]() |
