Parallel Gem Dark field Microscope Stereo Microscopes A23.1201-E

    Buy cheap Parallel Gem Dark field Microscope Stereo Microscopes A23.1201-E from wholesalers

    Buy cheap Parallel Gem Dark field Microscope Stereo Microscopes A23.1201-E from wholesalers
    • Buy cheap Parallel Gem Dark field Microscope Stereo Microscopes A23.1201-E from wholesalers
    • Buy cheap Parallel Gem Dark field Microscope Stereo Microscopes A23.1201-E from wholesalers

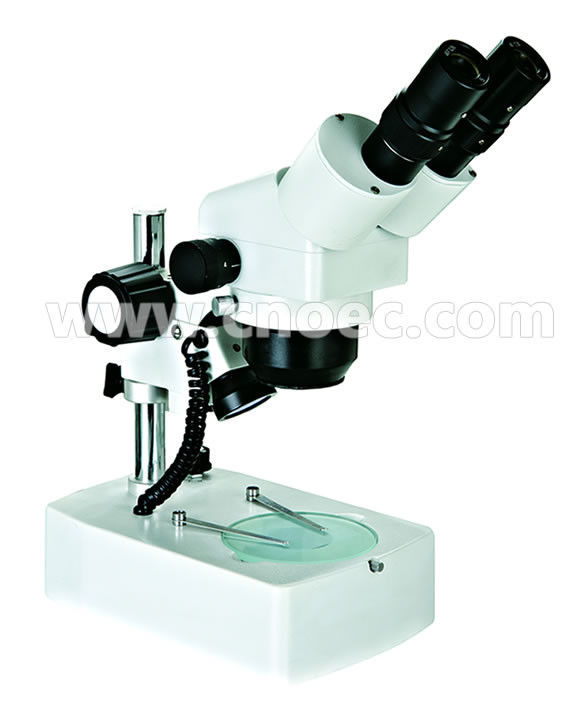

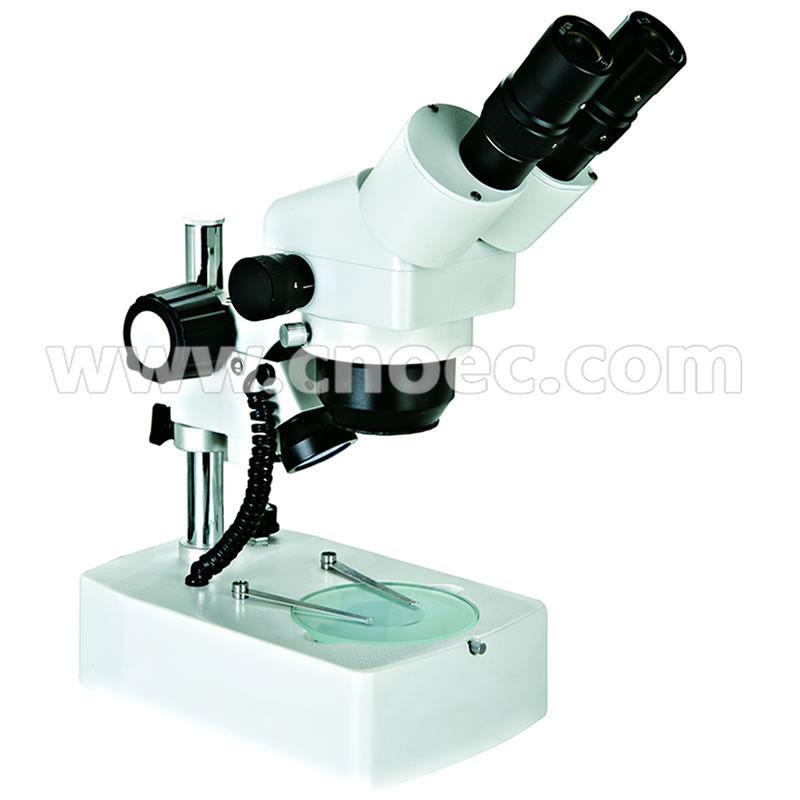

    Parallel Gem Dark field Microscope Stereo Microscopes A23.1201-E

    Ask Lasest Price
    Brand Name : CNOEC, OPTO-EDU
    Certification : CE|Rohs
    Model Number : A23.1201-E
    Price : FOB $1~1000, Depend on Order Quantity
    Delivery Time : 5~20 Days
    Payment Terms : T/T, West Union, Paypal
    Supply Ability : 5000 pcs/ Month
    • Product Details
    • Company Profile

    Parallel Gem Dark field Microscope Stereo Microscopes A23.1201-E


    Parallel Gem Dark field Microscope Stereo Microscopes A23.1201-E


    Description:


    --Sharp stereo erect image over a vide field view.
    --45 degree inclined and 360° rotational binocular head with locked-ineyepiece.The left ocular-tube with diopter adjustment ±5dp,The interpupillary distance is between 55-75mm
    --
    Zoom objective 1x-4x
    --
    Electric apparatus has CE approval
    --
    Power supply 110V/60Hz or 220V/50Hz
    --
    Each set packed in styorfoam and in an inner box.Two sets in one carton
    --
    A wide range of optional accessories.


    Specifications:


    A23.1201-E Specification
    Model
    Head
    Eyepiece
    Objective
    Stand
    Working Stage
    A23.1201-E
    Binocular
    SWF10X
    Zoom1x-4x
    Pillar Stand
    φ95Frosted Glass
    A23.1201-E-3
    Trinocular
    SWF10X
    Zoom1x-4x
    Pillar Stand
    φ95Frosted Glass
    Technical Data
    Eyepeiece
    Standard Objective
    1-4X
    Auxiliary Objective
    0.5X
    0.75X
    1.5X
    2.0X
    Field of
    View
    Working
    Distance
    Field of
    View
    Working
    Distance
    Field of
    View
    Working
    Distance
    Field of
    View
    Working
    Distance
    Field of
    View
    Working
    Distance
    5X
    20-5
    91
    40-11
    170
    25-6.5
    100
    13-3.5
    42
    10-2.5
    28
    10X
    23-5.5
    91
    52-12
    170
    30-7
    100
    15-4.8
    42
    11-5.3
    28
    15X
    15.5-4
    91
    36-8.5
    170
    21-5
    100
    10.5-2.5
    42
    8-2
    28
    20X
    10.5-3
    91
    25-5.8
    170
    14-3.5
    100
    7-1.8
    42
    5.5-1.5
    28
    Optional Accessories
    Item No.
    EyepieceWF5X /22
    A51.1201-05
    WF10X /23
    A51.1201-10
    WF15X/13
    A51.1201-15
    WF20X/10
    A51.1201-20
    Auxiliary Objective0.5X
    A52.1282-05
    0.75X
    A52.1282-75
    1.5X
    A52.1282-15
    2X
    A52.1282-20
    StageDarkfield stage,Φ95mm
    A54.1202-1
    PlateWhite/black Working Plate Φ95mm
    A54.1203-2
    Illuminationmore choice pls click here:light source
    PackingWooden cabinet with lock and keyA50.1202
    Aluminium caseA50.1203
