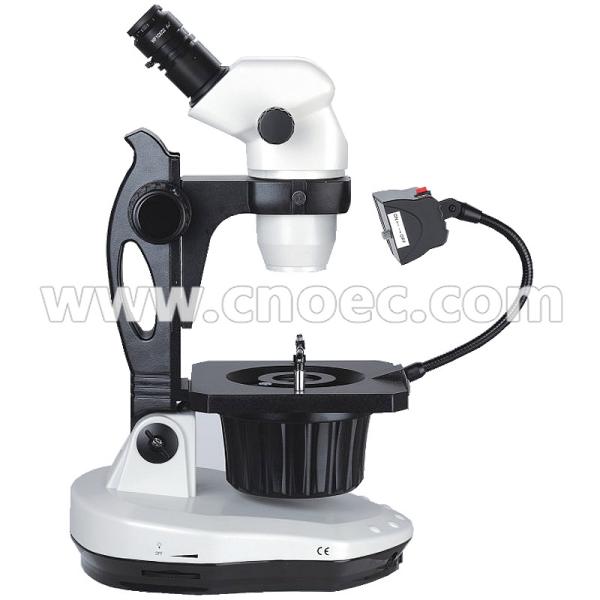

A24.0901 Jewelry Microscope, 0.67x-4.5x Specification

Observation Ways

Bright Field Transmit, Reflect, Polarizing and Dark Field Observation

Head

Brinocular, 45° Inclined, 360° Rotatable, +/-5° Diopter Adjustable,

Interpupillary Adjustment 54~75mm

Zoom Range

0.67~4.5x

Zoom Ratio

1:6.7

Eyepiece

WF10x/22mm, Both with Eye-cup

Magnification

6.7~45x, Up to 2~225x with Auxiliary Lens

Working Distance

100mm, With Standard 1x Lens. Up to 26~287mm With Auxiliary Lens

Gem Clamp

Wire Clamp For Bigger Objects, Flat Clamp For Smaller Objects

Stand

Professional Jewelry Microscope Stand, With Base Rotating and

Inclination Adjustable, with Built-in Dark Field, Polarizing Device

Illumination

Upper Illumniation 7W Fluorescent or 1W LED
Transmit Illumination 6V30W Halogen Lam

A24.0901 Jewelry Microscope, 0.67x-4.5x Optional Accessories

Eyepiece

WF15x/15mm

A51.0923-15

WF20x/10mm

A51.0923-20

WF25x/9mm

A51.0923-25

Auxiliary Lens

0.3x, W.D. 287mm

A52.0928-03

0.4x, W.D. 217mm

A52.0928-04

0.5x, W.D. 177mm

A52.0928-05

0.75x, W.D. 117mm

A52.0928-75

1.5x, W.D. 47mm

A52.0928-15

2.0x, W.D. 26mm

A52.0928-20
