Specification

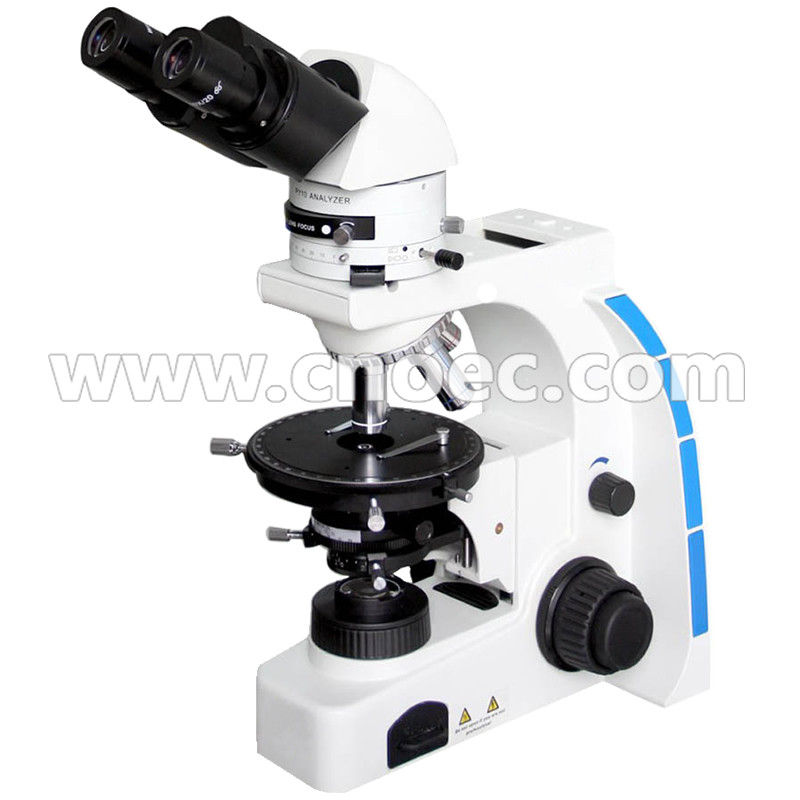

A15.2701 Transmitted Illumination Polarizing Microscope

A

B

Optical System

UCIS infinity independent achromatic optical system

Head

Seidentopf binocular head 30° inclined, rotatable 360°,

interpupillary distance 52-75mm

●

Seidentopf trinocular head 30° inclined, rotatable 360°,

interpupillary distance 52-75mm

●

Magnification

40x - 1000x

Eyepiece

WF10x/20mm, plan, high eyepoint up to 21mm,

WF10x/20mm, plan, reticule eyepiece

Objective

Infinity strain-free achromatic objectives 4x, 10x, 40x(s) and 100x (s/oil)

Focus System

Low positioned, coaxial coarse & fine focusing system with

an adjustable tension control and upper limit stop, coarse

14mm/rot, fine 0.1mm/rot, minimum reading 1μm on left-side

fine knob, moving range 20mm

Nosepiece

Quadruple, reversed type with positive click stops

Condenser

Swing-out condenser N.A.1.25

Stage

Rotating stage, size 142mm, Pre-centered and 360° rotatable

Specimen holder

Polarization

The polarizer mounted under the condenser holder rotates 360°

with click stops every 45°, scale 0°45°90°135°180°225°270°315°

The Intermediate tube has a analyzer with large rotation control

dial for easy adjustment and accurate reading through rotations

of 180°,division 1°,accuracy 6'. The built-in focusable and centerable

Bertrand lens allows conoscopic observation. with compensator slot

Compensator

1/4λ Plate

λ Plate, first class red

Quartz wedge plate, I-IV class

Kohler Illumination

with field diaphragm

Transmitetd Illumination

6V20W Halogen lamp, 110-240V wide voltage

6V20W Osram halogen bulb

250x/3.15A Φ5x20 fuse

Filter

Blue Φ38

Adapter

0.5x, C-Mount

●

Other

Immersion oil

Φ2mm Allen screw driver

Φ1.5mm Allen screw driver

Dust cover

Power cord

Optional Accessories

Item No.

Eyepiece

WF10x/22mm, plan, high eyepoint up to 21mm

A51.2701-10C

WF eyepiece 16x/14mm, plan

A51.2701-1614

Objective

Strain-free infinity achromatic objective 60x(S)

A5P.2730-60C

Infinity plan achromatic objective 2x

A52.2706-02A

Infinity plan achromatic objective 4x

A52.2706-04C

Infinity plan achromatic objective 10x

A52.2706-10C

Infinity plan achromatic objective 20x(S)

A52.2706-20C

Infinity plan achromatic objective 40x(S)

A52.2706-40C

Stage

Attachable mechanical stage

A54.2708-3

Illumination

Electrical part for 6V30W halogen

A56.2703-20A

Electrical part for 3W LED (with rechargeable battery)

A56.2703-30

Upgrade to electrical part for 3W LED

A56.2751-3W

6V30W Halogen bulb

A56.2703-30B

6V30W Halogen bulb (Osram)

A56.2703-30C

3W LED bulb

A56.2705-3B2

Filter Φ38

Green

A56.2706-G

Yellow

A56.2706-Y

Frosted glass

A56.2706-F

Adapter

1.0x C-Mount

A55.2701-10

0.25x C-Mount

A55.2701-25
