    Infinity Plan Polarizing Light Microscope

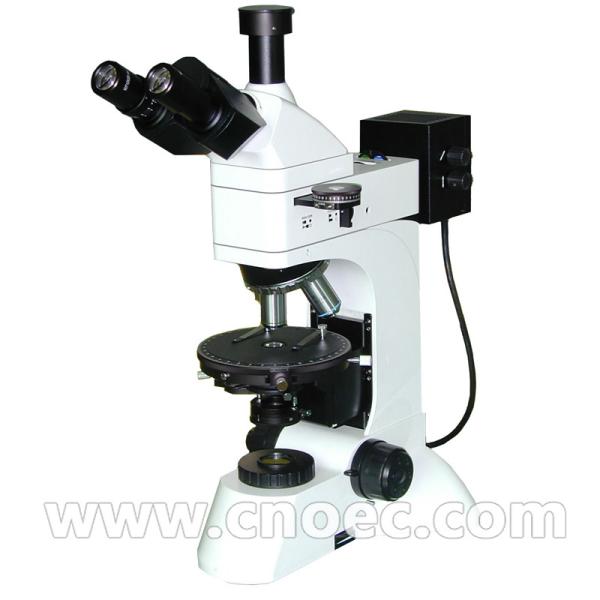

    Infinity Plan Trinocular Polarizing Light Microscope 40X - 400X A15.0204

    Description:
    A15.0204 transmitted & reflected polarization microscopes are utilized polarize light to observe and research the matter which have doublerefraction features, the user can make single polarizing observation, orthoscopic observation, conescopic observation. They are applied in geology,chemicals, physic and leechdom fields. They are also widely used to observe the crystal of liquid macromolecule polymer, biomedical polymer and liquid crystal. They are the ideal instruments for scientific research and universities teaching demo.
    --Equipped with infinity plan objectives (strain-free) and wide field eyepiece
    --Coaxial coarse/fine focus system with tensional adjustable and up stop, minimum division of fine focusing: 2μm
    --Rotatable stage, 360° graduated in 1° increments, minimum retardation resolution 6' center adjustable and withtightener,Stage vertical effective movement up to 30mm
    --Wide voltage range power supply (85-265V 47-60HZ), 6V30W halogen lamp, brightness adjustable



    Specifications:

    Specification
    A15.0204-A
    A15.0204-B
    Eyepiece
    Wide field WF10X (Φ20mm)
    Division eyepiece 10X (Φ20mm) 0.10mm/div
    Infinity Plan Objective, Strain-free
    PL4x/0.10, WD 17.9mm
    PLL 5X/0.12, WD 26.1mm, no cover glass
    PL10x/0.25, WD 8.8mm
    PLL 10X/0.25, WD 20.2mm, no cover glass
    PL40x/0.65, WD 0.56mm
    PLL 40X/0.60, WD 3.98mm, no cover glass
    PL100x/1.25, WD 0.33mm
    PLL 60X/0.75 , WD 3.18mm, no cover glass
    Head
    Trinocular, Inclination 30°, send 100% of the image light to top photography port
    Intermediate
    Built-in bertrand lens

    Reflected
    Illumination

    Polarizer 360 Degree rotatable
    Analyzer 360 Degree rotatable with scale and minimum vernier
    Illumination 6V 30w, halogen lamp, adjustable brightness
    Transmitted Illumination
    Polarizer 360 Degreerotatable, have 0,90,180,270 four scale
    CollectorFor halogen lamp illumination
    Illumination 6V 30w, halogen lamp, adjustable brightness
    Abbe condenser rack & pinion adjustable
    Compensator
    λ compensator
    λ/4 compensator
    Quarts wedge compensator
    Focus System
    Coaxial coarse/fine focus, with tension adjustable and up stop minimum division of fine focusing: 0.002mm
    Nosepiece
    Quadruple(Backward ball bearing inner locating)
    Stage
    Rotatable stage, Diameter Φ150mm, 360°graduated (in 1° increments), minimum retardation resolution 6' center adjustable and with tightener
    Optional Accessories
    Item No.
    Eyepiece
    Wide field WF16X(Φ11mm)
    A51.0203-16A
    Infinity Plan Objective, Strain-free
    (No Cover Glass)
    PL L 20X/0.40 (Working Distance): 8.80mm
    A5P.0235-20
    PL L 50X/0.70 (Working Distance): 3.68mm
    A5P.0235-50
    PL L 80X/0.80 (Working Distance): 1.25mm
    A5P.0235-80
    Nosepiece
    Quintuple(Backward ball bearing inner locating)
    A54.0203-4
    Slide Moving Holder
    Moving range: 30mmX25mm
    A54.0209-2
    CCD adapter0.4x
    A55.0202-01
    0.5x
    A55.0202-04
    1x
    A55.0202-02
    0.5x with dividing 0.1mm/Div
    A55.0202-03
    Camera
    DV-1 With USB & video output
    A59.0204-A1
    DV-2 With USB output
    A59.0204-B2
    DV-3 With video output
    A59.0204-C2
    Digital Camera Adapter
    For Canon EF ditigal SLR camera adapter
    A55.0204-02
