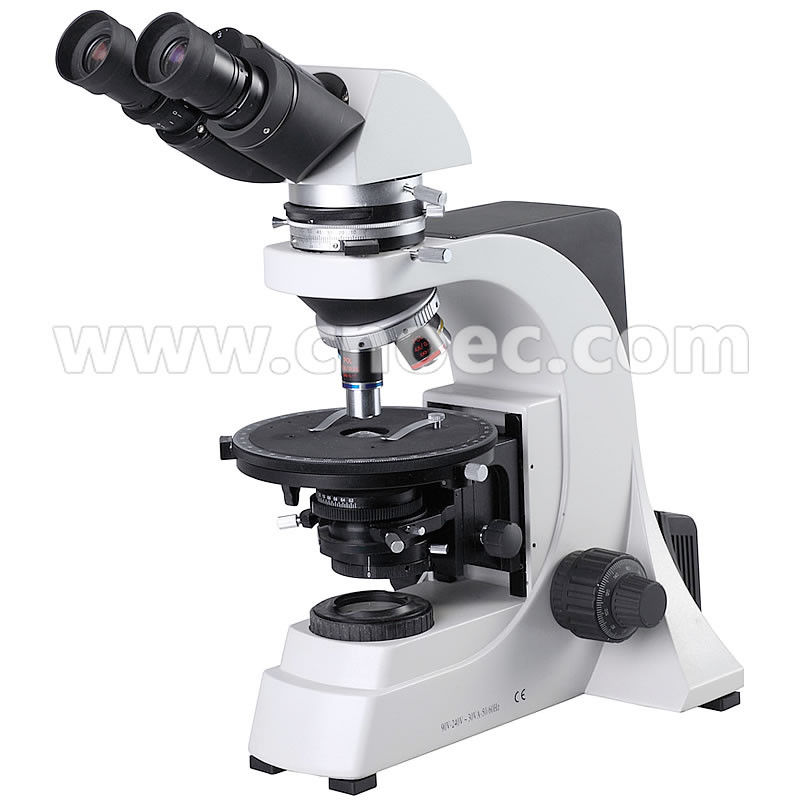

    Binocular / Trinocular Polarizing Light Microscope


    Binocular / Trinocular Polarizing Light Microscope 1000x A15.0901


    Description:


    ★Infinity Corrected Optical System
    --The Infinity Corrected Optical System design has corrected chromatic aberration on the base traditonal optical system, A significant development in optical performance and versatility.
    --The Infinity Corrected Optical System has been designed to fit different accessories according to customers requirements, including dark filed, phase contrast accessories, polarizing kits, and fluorescence light etc.
    ★ Microscope Stand
    This series microscope can be optimal integrates and maximum expandability as fully functions.
    Shapely configuration, furthermore, the Stand ensured the stability of the microscope. This Series is handled more comfortable because of the Ergonomic design.
    Ergonomic design has made this cope comfortable with the manner in which you working. The focusing controls and the brightness controls are greatly improved the comfort for the user


    Specifications:


    Speicification
    A15.0901
    A
    B
    OpticalColor corrected infinity optical system
    HeadCompensation free binocular head
    Compensation free trinocular head
    EyepiecePL10X/22mm high eye-point plan eyepiece each with eye-cup
    ObjectiveInfinity plan achromatic objective 4X
    Infinity plan achromatic objective 10X
    Infinity plan achromatic objective 20X
    Infinity plan achromatic objective 40X
    Infinity plan achromatic objective 100X
    NosepieceReversed quintuple nosepiece
    CondenserN.A1.2/0.22 swing achromatic conderser
    IlluminationBuild-in koehler illuminator systems.6V 30W halogen bulb(Philips 5761), adjustable brightness
    Stage175*145mm mechanical stage,moving range:75*50mm
    FocusingLowness coaxial focus system with tension adjustment,with up-limited. Stage range: 25mm, precision0.002mm
    FilterBlue filter Φ 45
    StandErgonomic design, the inverted"Y" support in the back of the microscope provides extra lateral stability
    Optional Accessories
    Item No.
    EyepiecePlan eyepiece 10x(with reticle)EP10X22r
    Plan eyepiece 16x/16mmEP16X16
    ObjectivePlan achromatic objective 4xOP4
    Plan achromatic objective 10xOP10
    Plan achromatic objective 20xOP20
    Plan achromatic objective 40xsOP40
    Plan achromatic objective 100xsOP100
    Infinity Plan phase contrast objective P10xXY-PPCI10
    Infinity Plan phase contrast objective P20xXY-PPCI20
    Infinity Plan phase contrast objective P40xsXY-PPCI40
    Infinity Plan phase contrast objective P100xsXY-PPCI100
    Plan phase contrast objective P10xXY-PPC10
    Plan phase contrast objective P20xXY-PPC20
    Plan phase contrast objective P40xsXY-PPC40
    Plan phase contrast objective P100xsXY-PPC100
    NosepieceReversed quadruple nosepieceXY-NPI4
    CondenserN.A.1.25 five holes phase contrast condenser(Infinity)XY-PCI
    N.A.1.25 five holes phase contrast condenserXY-PC
    FilterGreen filterXY-FCG
    Yelllow filterXY-FCY
    Netural filterXY-FCF
    Dark Field CondenserDark Field Condenser(Dry)N.A.0.9XY-DDC
    Dark Field Condenser(Immersion)N.A.1.25XY-WDC
    TV Adapter0.5XXY-XTV0.5
    0.35XXY-XTV0.35
    Polarizing AttachmentPolarizer,Analyser,Rotatable round machanical stageXS-PGFJ
    Fluorescent AttachmentEpi-fluorescent illumination(100W mercury lamp),fluorescent power,B,G,U,VXY-YGFJ
