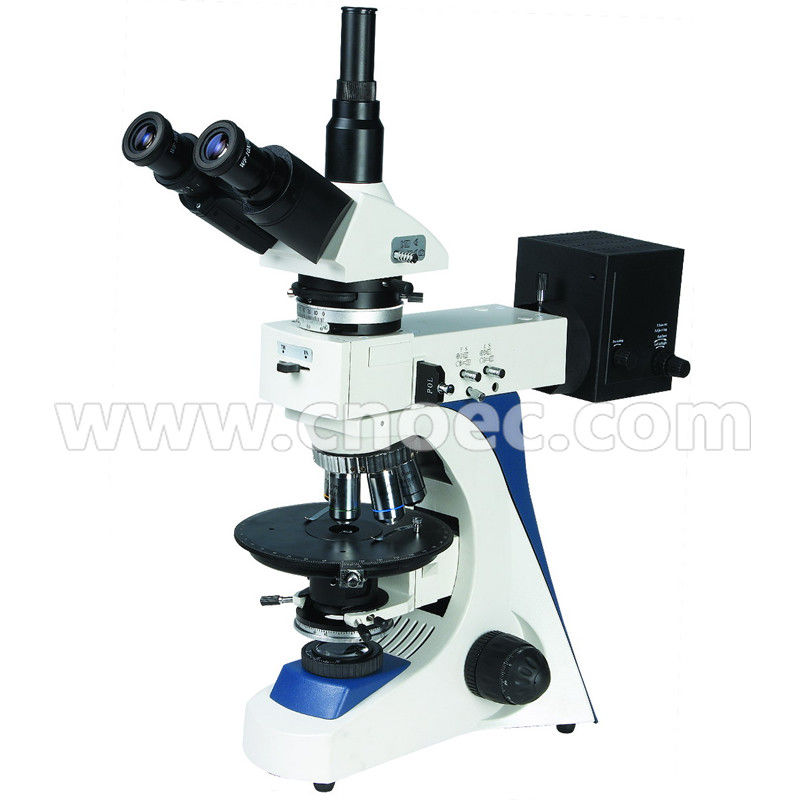

    40x - 600x Metal Polarizing Light Microscope With Rotary Stage A15.1103

    Ask Lasest Price
    Brand Name : CNOEC, OPTO-EDU
    Certification : CE|Rohs
    Model Number : A15.1103
    Price : Negotiation
    Delivery Time : 5~20 Days
    Payment Terms : T/T, West Union, Paypal
    Supply Ability : 5000 pcs/ Month
    • Product Details
    • Company Profile

    40x - 600x Metal Polarizing Light Microscope With Rotary Stage A15.1103


    40x - 600x Metal Polarizing Light Microscope With Rotary Stage A15.1103


    Specifications:


    A15.1103 Polarizing Microscope Specification
    -A
    -B
    Head
    Compensation Free Binocular,30°inclined,55mm-75mm
    -
    Compensation Free Trinocular,30°inclined,55mm-75mm
    -
    EyepieceWide field WF10X/22mm
    Gridding Eyepiece
    Cross Eyepiece
    Eyepiece with Reticule
    ObjectiveStress-Free Infinity Plan-Achromatic Metallurgical Objective40X
    60X
    Stress-Free Infinity Plan Achromatic Objective4X
    10X
    20X
    40X
    60X
    CondenserSwing Type N.A.1.25 Abbe Condenser with Iris Diaphragm
    Focus System
    Coaxial Coarse and Fine Focusing with Rack and Pinion Mechanism; Fine Focusing Scale Value 0.002mm.
    Nosepiece
    Quintuple Nosepiece with centering adjustable
    FilterGreen Inserting Type Filting
    Blue Inserting Type Filting
    Neutral Inserting Type Filting
    Stage
    Rotary Stage,Stage Size: Φ172mm,Moving Range:360°
    Testing PieceGypsum 1 λTesting Piece
    Mica1/4 λ
    Quartz Wedge Testing Piece
    IlluminationHigh brightness Fixed Illumination
    Light SourceUpper:Halogen Bulb 12V/30W,AC 85V-230V ,Adjustble Brightness
    Down:Halogen Bulb 12V/30W,AC 85V-230V ,Adjustble Brightness
    Checking Tool0.01mm Micrometer
    Optional Accessories
    EyepieceWF16X
    WF20X
    P16X
    Stress-Free Infinity Plan-Achromatic Metallurgical Objective4X
    10X
    20X
    Photo AdapterPhoto Adapter
    CCD Adapter0.5X
    0.57X
    0.75X
