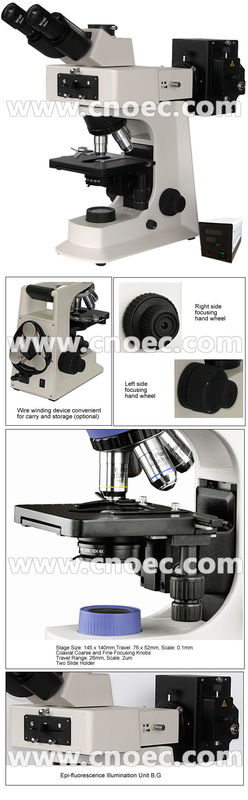

    Learning Epi - Fluorescent Light Microscope 1000x With Koehler Illumination CE A16.2602

    Ask Lasest Price
    Brand Name : CNOEC, OPTO-EDU
    Certification : CE|Rohs
    Model Number : A16.2602
    Price : Negotiation
    Delivery Time : 5~20 Days
    Payment Terms : T/T, West Union, Paypal
    Supply Ability : 5000 pcs/ Month
    • Product Details
    • Company Profile

    Learning Epi - Fluorescent Light Microscope 1000x With Koehler Illumination CE A16.2602


    Learning Epi - Fluorescent Light Microscope 1000x With Koehler Illumination CE A16.2602


    Specifications:


    A16.2602 Fluorescent Microscope

    A

    B

    Head

    Seidentopf Binocular Head, 30° Inclined,Rotatable 360°,

    Interpupilary Distance 50-75mm


    Seidentopf Trinocular Head, 30° Inclined,Rotatable 360°,

    Interpupilary Distance 50-75mm, Light Distribution

    (binocular tube:photo tube): 20:80


    Eyepiece

    WF10x/20mm

    Objective

    Infinity E-Plan achromatic objective 4x

    Infinity E-Plan achromatic objective 10x

    Infinity E-Plan achromatic objective 40x(S)

    Infinity E-Plan achromatic objective 100x(S,Oil)

    Focus System

    Low positioned, coaxial coarse & fine focusing knobs,

    travel range 26mm, scale 2μm

    Nosepiece

    Quadruple

    Stage

    Mechnical Stage, size 145 x 140mm, moving range

    76 x 52mm, two slide holder

    Condenser

    Abbe N.A.1.25 with aperture iris diaphragm

    Filter

    Blue

    Fluorescence Attachment

    Epi-Fluorescence illumination unit (B,G)

    100W Mercury lamp house

    100W Mercury power supply

    Light Source

    Koehler illumination, 6V 20W halogen lamp,

    brightness adjustable

    Power Supply

    100-240V, 50/60Hz

    Optional Accessories

    Item No.

    Eyepiece

    WF16x/13mm

    A51.2602-16

    WF10x/18mm with pointer

    A51.2604-10

    WF10x/18mm with micrometer 0.1mm/Div

    A51.2605-10

    WF16x/13mm with micrometer 0.1mm/Div

    A51.2605-16

    Objective

    Infinity E-Plan Achromatic Objective 20x

    A52.2605-20

    Infinity E-Plan Achromatic Objective 60x

    A52.2605-60

    Infinity Plan Achromatic Objective 4x

    A52.2603-4

    Infinity Plan Achromatic Objective 10x

    A52.2603-10

    Infinity Plan Achromatic Objective 20x

    A52.2603-20

    Infinity Plan Achromatic Objective 40x(S)

    A52.2603-40

    Infinity Plan Achromatic Objective 60x(S)

    A52.2603-60

    Infinity Plan Achromatic Objective 100x(S,Oil)

    A52.2603-100

    Nosepiece

    Upgrade to Quintule Nosepiece

    A54.2610-4-5

    Light Source

    Upgrade to 6V 30W Halogen Lamp, Koehler

    Illumination Brightness Adjustable

    A56.2650

    Adapter

    C-Mount Adapter 0.47x (Focus Adjustable)

    A55.2601-S47

    C-Mount Adapter 1x

    A55.2601-S10

    Digital SLR Camera Adapte

    For Nikon Digital SLR Camera

    A55.2622-N

    For Sony Digital SLR Camera

    A55.2622-S

    For Canon Digital SLR Camera

    A55.2622-C

    Light Source

    Upgrade to 6V30W Halogen

    A56.2650-30W

    Other

    Wire Winding Device

    A50.2602-S
