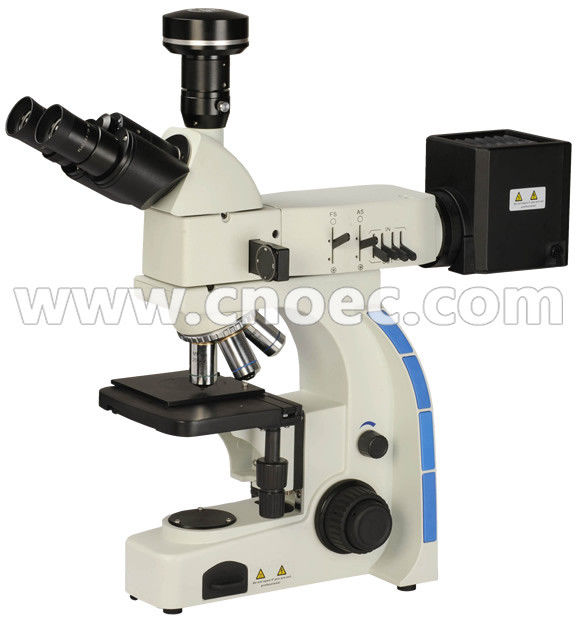

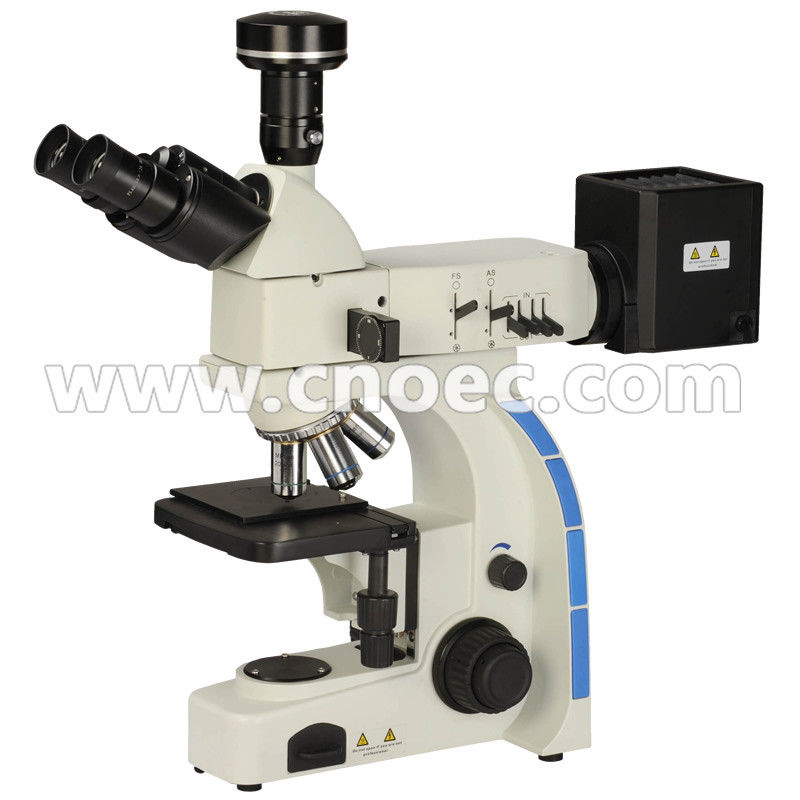

    UCIS Analyzer Metallurgical Optical Microscope Halogen Lamp A13.2701

    Ask Lasest Price
    Brand Name : CNOEC, OPTO-EDU
    Certification : CE|Rohs
    Model Number : A13.2701
    Price : FOB $1~1000, Depend on Order Quantity
    Delivery Time : 5~20 Days
    Payment Terms : T/T, West Union, Paypal
    Supply Ability : 5000 pcs/ Month
    • Product Details
    • Company Profile

    UCIS Analyzer Metallurgical Optical Microscope Halogen Lamp A13.2701


    UCIS Analyzer Metallurgical Optical Microscope Halogen Lamp A13.2701



    Specifications:


    Specification

    A13.2701-A

    A13.2701-B


    Optical System

    UCIS infinity independent achromatic optical system

    Head

    Seidentopf binocular head,30° inclined, 360° rotatable,

    interpupillary distance 52-75mm, ±5 diopter adjustment

    Seidentopf binocular head,

    30° inclined, 360° rotatable,

    interpupillary distance 52-75mm,

    ±5 diopter adjustment

    Eyepiece

    WF10x/20mm, plan, high eyepoint up to 21mm,

    WF10x/20mm, plan, reticule eyepiece, cross

    Objective

    Infinity LWD plan achromatic objectives 10x, 20x, 50x(s) and 80x (s)

    Focus System

    Low positioned, coaxial coarse & fine focusing system with an

    adjustable tension control and upper limit stop, coarse 14mm/rot,

    fine 0.1mm/rot, minimum reading 1μm on left-side fine knob, moving range 20mm

    Nosepiece

    Quintuple, reversed type with positive click stops

    Stage

    Mechanical stage, size 156x138mm, moving range 76x54mm,

    low position and right hand controls,

    Filter (Φ38)

    Blue, green, yellow, frosted glass

    Adapter


    C-Mount 0.5x

    Polarizing Attachment

    Analyzer

    Polarizer

    Reflected Illumination

    Reflected light illumination (single module)

    Electrical parts for 12V50W Halogen

    12V100W halogen lamp house

    12V50W halogen bulb (Osram)

    250V/5A Φ5x20 fuse

    Other

    Allen screw driver 2mm

    Allen screw driver 2.5mm

    Allen screw driver 3mm

    Dust cover

    Power cord

    A13.2701 Metallurgical Microscope Optional Accessories


    Item No.

    Head

    Seidentopf binocular head,30° inclined, 360° rotatable,

    interpupillary distance 48-75mm, diopter adjustable

    A53.2702-2A

    Seidentopf trinocular head, 30° inclined, 360° rotatable,

    interpupillary distance 48-75mm, diopter adjustable

    A53.2704-2A

    Trinocular head,30° inclined, 360° rotatable, interpupillary

    distance 48-75mm, diopter adjustment,light split 100:0 0:100

    A53.2704-2B

    Eyepiece

    WF10x/22mm, plan,high eyepoint up to 21mm

    A51.2701-10C

    WF16X/13mm, plan

    A51.2701-16B

    Objective

    Infinity plan achromatic objective 5x

    A52.2706-05A

    Infinity plan achromatic objective 100x

    A52.2706-100A

    Reflected Light

    Reflected light illumination(multi-module)

    A5M.2711-3

    12V100W power supply unit

    A56.2703-4

    12V100W halogen bulb (Osram)

    A56.2703-100

    Nosepiece

    Quadruple, reversed type with positive click stops

    A54.2704-B

    Micrometer

    Optical metallurgical micrometer (1/100mm)

    A58.2701

    Adapter

    1x, C-Mount

    A55.2701-10

    0.25x, C-Mount

    A55.2701-25

    Digital camera adapter, (Need to know camera model number)

    A55.2702-2

    Other

    Immersion oil

    A50.2701

    Specimen presser

    A5M.2713
