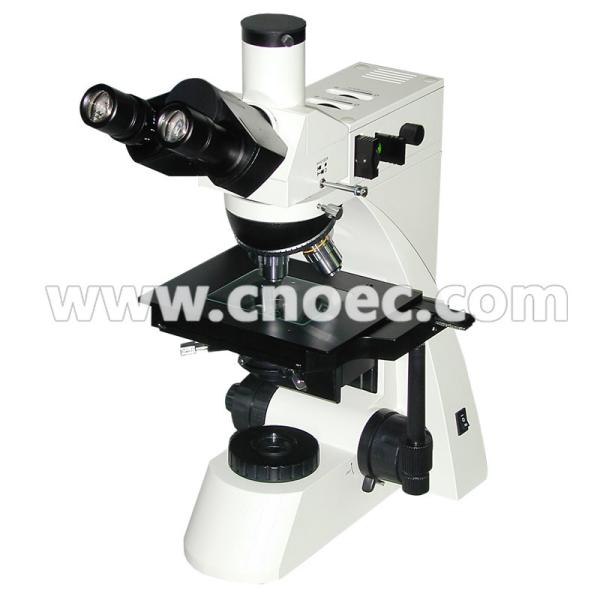

Specification

A13.0209-A

A13.0209-B

Eyepiece

WF10X(Φ18mm)

Objective

Plan long working distance (no cover glass) PL5x/0.12

Plan long working distance (no cover glass) PLL10x/0.25

Plan long working distance (no cover glass) PLL20x/0.40

Plan long working distance (no cover glass) PLL50x/0.7

Head

Trinocular, inclination of 30°, analyzer with field diaphragm to switch

Vertical illumination Unit

6V 20W halogen lamp with brightness control

Vertical illumination with field diaphragm, aperture diaphragm and polaizer, (YBG) filter and ground glass

Transmited Illumination Unit

Abbe condenser N.A.=1.25, Rack & pinion adjustable

Blue filter and ground glass

Collector for illumination with halogen lamp (With filed diaphragm)

6V 20W, halogen lamp, adjustable brightness

Focus System

Coaxial coarse/fine focus system, with tensional adjustable and up stop, minimum division of fine focusing: 2um

Nosepiece

Quadruple back ball bearing inner locating

Stage

Double layer mechanical, size 210x140mm, moving range 75x50mm

Optional Accessories

Item No.

Eyepiece

Wide field WF16x/11mm

A51.0203-16A

Divding 10x, 0.1mm/Div

A51.025-G10

Objective

Plan long working distance (no cover glass) PLL40x/0.60

A5M.0212-40

Plan long working distance (no cover glass) PLL60x/0.75(Spring)

A5M.0212-60

Plan long working distance (no cover glass) PLL80x/0.80

A5M.0212-80

Plan long working distance (no cover glass) PLL10x/0.85(Spring)

A5M.0212-100A

Plan achromatic (no cover glass) PL100x/1.25

A5M.0212-100

Nosepiece

Quintuple backward ball bearing inner locating

A54.0203-2

CCD Adapter

0.4x

A55.0202-1

0.5x

A55.0202-4

1x

A55.0202-2

0.5x with dividing 0.1mm/Div

A55.0202-3

Photo Adapter

2.5x/4x change over photograph attachment with 10x viewing eypiece

A55.0201-1

4x focusing photograph attachment

A55.0201-2

MD adapter

A55.0201-3

PK adapter

A55.0201-4

DC Adapter

Digital Camera Adapter for CANON(A610,A620,A630,A640)

A55.02024-01
