    Industry Metallurgical Optical Microscope

    Ask Lasest Price
    Certification : CE, Rohs
    Brand Name : CNOEC, OPTO-EDU
    Model Number : A13.0216
    Price : FOB $1~1000, Depend on Order Quantity
    Delivery Time : 5~20 Days
    Payment Terms : T/T, West Union, Paypal
    Supply Ability : 5000 pcs/ Month
    • Product Details
    • Company Profile

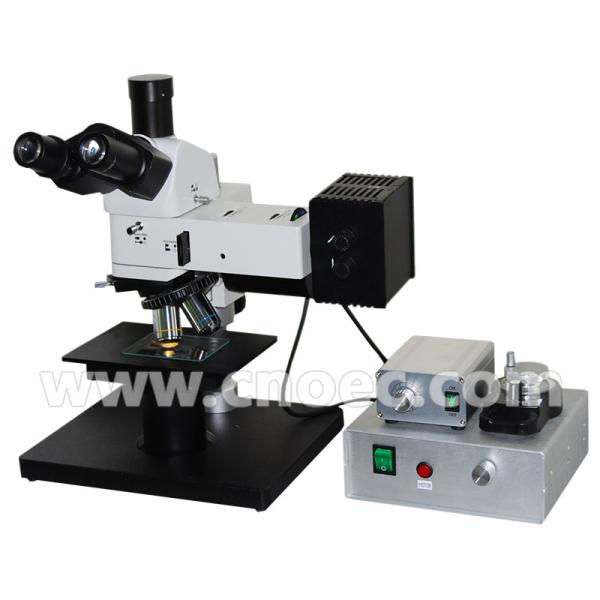

    Industry Metallurgical Optical Microscope


    Industry Trinocular Metallurgical Optical Microscope A13.0216


    Specifications:


    Specification
    A13.0216 Metallurigical Microscope
    -BD
    -DIC
    Head
    Trinocular head, inclination of 22.5 °,diopter adjustment 5, interpupillary 53mm-75mm
    Eyepiece
    Wide field WF10X(field number:Φ22mm)
    Infinity Plan Achromatic Objective
    PL L5X/0.12 (Work distance):26.1 mm (Bright field)
    PL L10X/0.25 (Work distance):20.2 mm ( Bright field)
    PL L20X/0.40 (Work distance):8.8. mm (Bright field)
    PL L50X/0.70 (Work distance):3.68 mm (Bright field)
    PL L5X/0.12 (Work distance):9.7 mm (Bright /Dark field)
    PL L10X/0.25 (Work distance):9.3 mm (Bright /Dark field)
    PL L20X/0.40 (Work distance):7.2 mm (Bright /Dark field)
    PL L50X/0.70 (Work distance):2.5 mm (Bright /Ddark field)
    PL L5X/0.10 (Work distance):18.2 mm (DIC)
    PL L10X/0.25 (Work distance):20.2 mm (DIC)
    PL L20X/0.35 (Work distance):6.0mm (DIC)
    PL L50X/0.70 (Work distance):2.5 mm (DIC)
    Illumination
    12V50W halogen and brightness adjustable
    For LMPlan 5x/10x/20x objective DIC flashboard
    Focus System
    Coaxial coarse/fine focus system, with coarse focus knob tension adjustable device, minimum division of fine focusing: 2μm. Max. hight of sample: 100mm. Range: 35mm
    Nosepiece
    Quintuple nosepiece
    FilterGross filter, yellow, green, blue filters
    Stage
    Base overall size:300mmX250mm
    Mechanical stage overall size:160mmX140mm, moving range:30mmx35mm
