    Research Total Internal Reflection Fluorescence Microscope Rohs A16.0202

    Ask Lasest Price
    Brand Name : CNOEC, OPTO-EDU
    Certification : CE|Rohs
    Model Number : A16.0202
    Price : Negotiation
    Delivery Time : 5~20 Days
    Payment Terms : T/T, West Union, Paypal
    Supply Ability : 5000 pcs/ Month
    • Product Details
    • Company Profile

    Research Total Internal Reflection Fluorescence Microscope Rohs A16.0202


    Research Total Internal Reflection Fluorescence Microscope Rohs A16.0202


    Description:


    A16.0202 Reflected Fluorescence Microscopes are used for fluorescence microscopy and transmitted bright field observation. They are the ideal instruments in biology, cytology, oncology, geneticist, immunology etc. It is the ideal instrument in biology, cytology, oncology, genetics, immunology etc. It also can be used in scientific research, universities, medical treatment, epidemic prevention etc.
    --With wide field eyepieces, plan achromatic objectives and fluorescence objectives, the field of view is widely and clear.
    --Coaxial coarse/fine focus system, with tensional adjustable and up stop, minimum division of fine focusing: 2μm.
    --6V 20W halogen lamp transmission illumination with brightness control. 100W high voltage mercury lamp, with outside power supply unit


    Specifications:


    Specification
    A16.0202-A
    A16.0202-B
    Eyepiece
    Wide field WF10X (Φ20mm)
    Objective
    Plan achromatic PL 4X/0.10
    Plan achromatic PL 4X/0.10
    Plan achromatic PL 10X/0.25
    Plan achromatic PL 10X/0.25
    Plan achromatic PL 20X/0.40
    Plan achromatic PL 40X/0.65(Spring)Plan achromatic PL 40X/0.65(Spring)
    Plan achromatic PL 100X/1.25(Spring, oil)Plan achromatic PL 100X/1.25(Spring, oil)
    Fluorescence objectives FL 25X/0.65
    Fluorescence objectives FL 40X/1.00 (Spring, Glycerin)
    Head
    Trinocular (Inclination of 30°)
    Focus System
    Coaxial coarse/fine focus, with tensional adjustable and up stop minimum division of fine focusing: 2μm
    Nosepiece
    Quadruple(Backward ball bearing inner locating)
    Quintuple (Backward ball bearing inner locating)
    Stage
    Double layer mechanical (Size:160mmX140mm, Move range: 75mmX50mm)
    Condenser
    Abbe condenser N.A.1.25 Rack & pinion adjustable
    Filter
    Blue filter
    Frosted filter
    Collector
    For halogen lamp
    Light Source
    6V 20W halogen lamp with brightness control
    Reflected Fluorescence System
    Mercury lamp house 100W/DC
    Power supply unit:AV:110V or 220V
    Fluorescence filter system B exciton wavelength:420~485nm
    Fluorescence filter system G exciton wavelength:460~550nm
    Optional Accessories
    Item No.
    Eyepiece
    Wide field eyepiece WF16X/11mm
    A51.0203-16A
    Dividing 10X/20mm, 0.1mm/Div
    A51.0205-G10
    Objective
    Plan achromatic objectives PL 5X/0.12
    A52.0203-5
    Fluorescence objectives FL 100X/1.25 (Spring, Glycerin)
    A5F.0205
    Filter
    Green filter
    A56.0209-2
    Yellow filter
    A56.0209-3
    Fluorescence

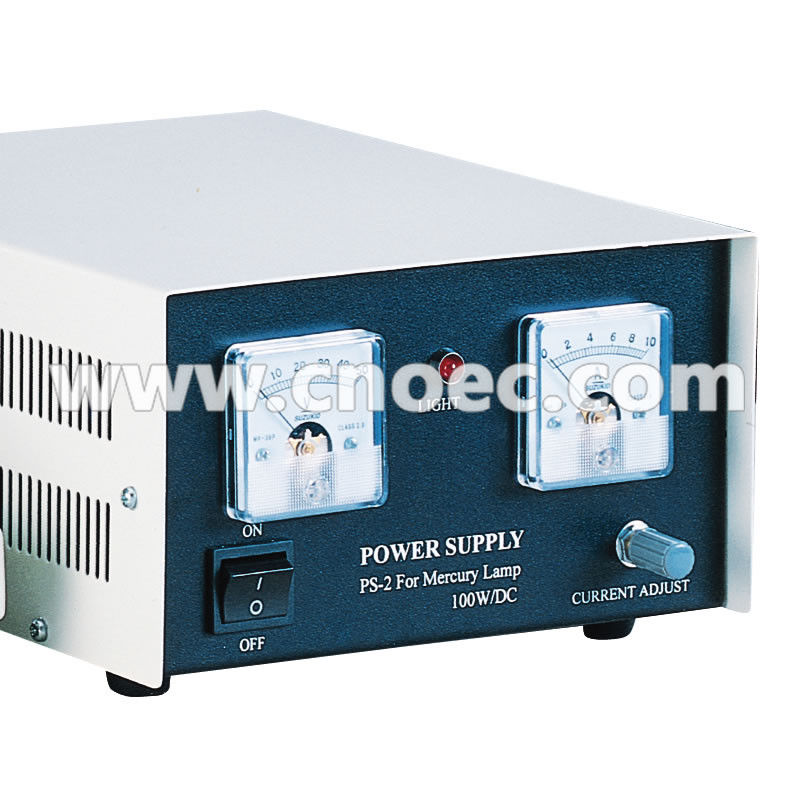

    100W fluorescence power supply(wide voltage and constant power and calculagraph)
    A5F.0204-3
    Reflected Fluorescence
    Fluorescence filter system UV exciton wavelength:330~400nm
    A5F.0201-UV
    Fluorescence filter system V exciton wavelength:395~415nm
    A5F.0201-U
    Phase Contrast Unit
    Eyepiece: centering telescope
    A5C.0204-1
    Phase contrast plan achromatic objective 10X/0.25 PHPl)
    A5C.0211-10
    Phase contrast plan achromatic objective 20X/0.40 PHP
    A5C.0211-20
    Phase contrast plan achromatic objective 40X/0.65 PHP(Spring)
    A5C.0211-40
    Phase contrast plan achromatic objective 100X/1.25 PHP(Spring, oil)
    A5C.0211-100
    (PH-I) Turnplate phase contrast condenser
    A5C.0202-1
    (PH-II) Turnplate phase contrast condenser
    A5C.0202-4
    Flashboard phase contrast condenser
    A5C.0202-2
    Pull board phase contrast condenser
    A5C.0202-3
    CCD Adapter
    0.4X
    A55.0202-01
    0.5X
    A55.0202-04
    1X
    A55.0202-02
    0.5X with dividing 0.1mm/Div
    A55.0202-03
    DC Adapter
    Digital camera adapter CANON (A610,A620,A630,A640)
    A55.0204-01
    Photo Adapter
    2.5X/4X Change over photograph adapter with 10X viewing eyepiece
    A55.0201-1
    4X Focusing photograph adapter
    A55.0201-2
    MD Adapter
    A55.0201-3
    PK Adapter
    A55.0201-4
