    CMOS USB Microscope Camera Microscope Accessories A59.4203

    Ask Lasest Price
    Brand Name : CNOEC, OPTO-EDU
    Certification : CE|Rohs
    Model Number : A59.4203
    Price : FOB $1~1000, Depend on Order Quantity
    Delivery Time : 5~20 Days
    Payment Terms : T/T, West Union, Paypal
    Supply Ability : 5000 pcs/ Month
    • Product Details
    • Company Profile

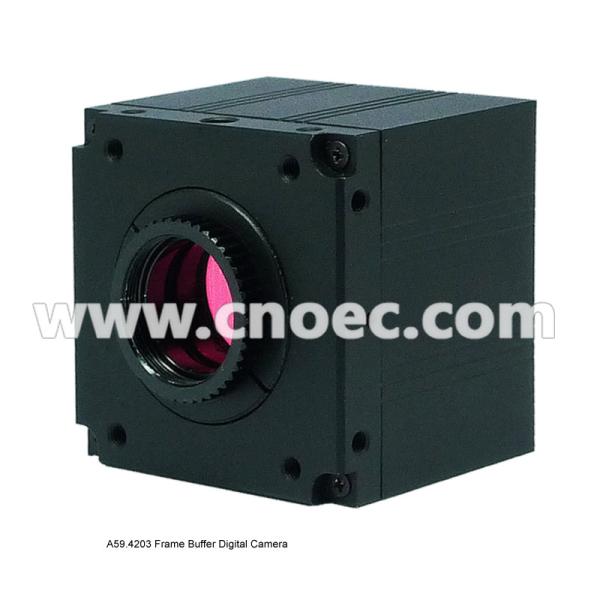

    CMOS USB Microscope Camera Microscope Accessories A59.4203


    CMOS USB Microscope Camera Microscope Accessories A59.4203


    Description:


    A59.4203 Frame Buffer Series products developed in 2009. continue with USB2.0 interface, camera, using high-capacity internal SDRAM, data exist to SDRAM and then spread to PC, make the product significantly reduces the computer configuration requirements, and can access multiple cameras in a computer use, high product stability. This series of products can reach 9 million maximum pixel.

    A59.4203-A Full range of products are used SONY CCD imaging sensors with high sensitivity, good color reduction degree, many advantages of higher image quality. It is worth mentioning that, CCD products for dynamic snapshot. This series of products continue to use the USB2.0 interfaces.

    Applications: assembly line piece-line detection, license plate recognition capture, microscopic image acquisition and many other fields.


    Specifications:


    Specification

    A59.4203-A

    A59.4202-B

    Pixels

    1.4M

    9.0M

    Senser

    Color 1/2" Sony CCD

    Color 1/2.3" CMOS

    Image Resolution

    1360*1024

    3488*2616

    Pixcel Size

    4.65umx4.65um

    1.75umx1.75um

    Frame Rate

    15FPS

    4FPS

    SN Ratio

    37.4db

    Dynamic Range

    62.7db

    Sensitivity

    0.44V/lux-sec

    Data Bit

    8

    Exposure mode

    Global Shutter

    Rolling Shutter

    I/Ocontrol

    2way Input, 1way Output

    3 way I/O control(2 Iutput,1 Output)

    Lens mount

    C,CS

    Output

    USB 2.0

    Exposure time

    1/15000s~2s

    Programmable control

    Image resolution, RGB gain, exposure time, contrast, Gamma, image flip, raw data

    Other

    Auto/manual white balance, regional white balance, auto black balance, remove dead pixel function, intensity balance, user-defined hardware encryption

    Software

    Support DSHOW,TWAIN, OCX, SDK, Labview; Free measurement software

    Operating system

    Support Windows 2000,Windows XP,Windows, Vista,Windows7
    Support 32-bit and 64-bit operating system

    Power supply

    USB power supply

    Power

    3.0W

    2.5W

    Size

    62*62*57mm

    PCB Board

    50*50mm
