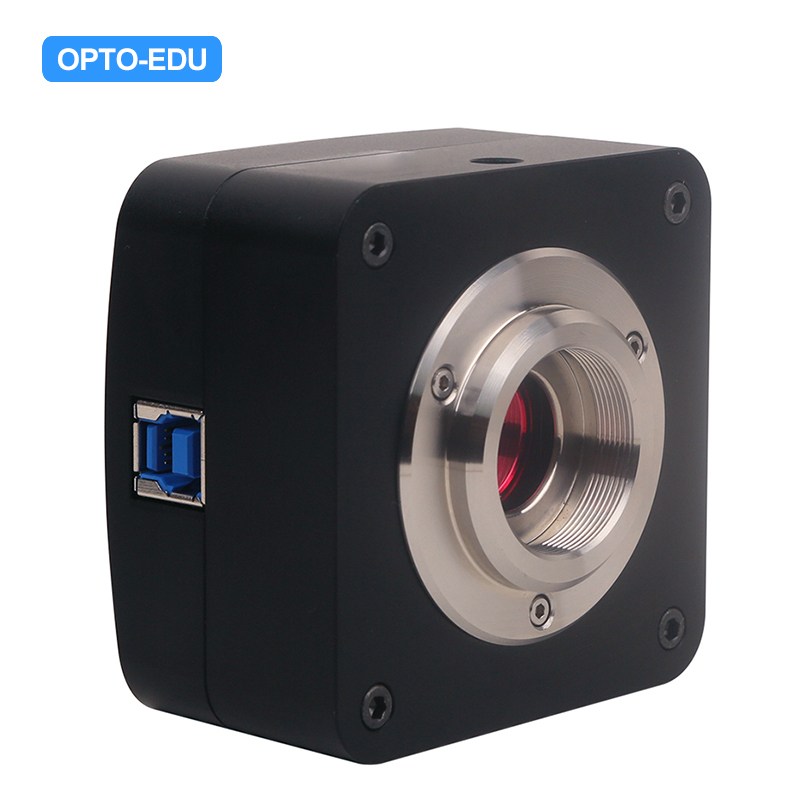

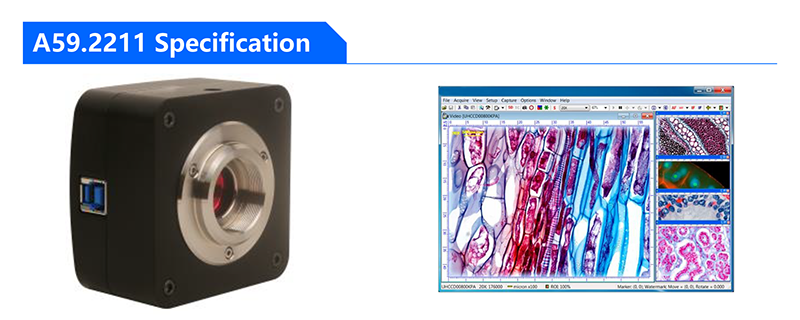

USB3.0 Digital USB Microscope Camera Microscope Accessories A59.2211

    Buy cheap USB3.0 Digital USB Microscope Camera Microscope Accessories A59.2211 from wholesalers

    Buy cheap USB3.0 Digital USB Microscope Camera Microscope Accessories A59.2211 from wholesalers
    • Buy cheap USB3.0 Digital USB Microscope Camera Microscope Accessories A59.2211 from wholesalers
    • Buy cheap USB3.0 Digital USB Microscope Camera Microscope Accessories A59.2211 from wholesalers
    • Buy cheap USB3.0 Digital USB Microscope Camera Microscope Accessories A59.2211 from wholesalers

    USB3.0 Digital USB Microscope Camera Microscope Accessories A59.2211

    Ask Lasest Price
    Brand Name : CNOEC, OPTO-EDU
    Certification : CE|Rohs
    Model Number : A59.2211
    Price : FOB $1~1000, Depend on Order Quantity
    Delivery Time : 5~20 Days
    Payment Terms : T/T, West Union, Paypal
    Supply Ability : 5000 pcs/ Month
    • Product Details
    • Company Profile

    USB3.0 Digital USB Microscope Camera Microscope Accessories A59.2211

    USB3.0 Digital USB Microscope Camera Microscope Accessories A59.2211
    USB3.0 Digital USB Microscope Camera Microscope Accessories A59.2211
    USB3.0 Digital USB Microscope Camera Microscope Accessories A59.2211

    USB3.0 Digital USB Microscope Camera Microscope Accessories A59.2211
    USB3.0 Digital USB Microscope Camera Microscope Accessories A59.2211
    Order CodeSensor & SizePixel(μm)G Responsivity Dynamic range SNRmaxFPS/ResolutionBinningExposure
    12MPA12M/IMX577©
    1/2.1“ (5.95x4.71)
    1.55x1.55250mv with 1/30s
    0.25mv with 1/30s
    8.5@3840x3040
    49@1920x1516
    137@960x758
    1x1
    2x2
    4x4
    0.1ms~2000ms
    10MPA10M/IMX577©
    1/2.3“ (5.68x4.26)
    1.55x1.55250mv with 1/30s
    0.25mv with 1/30s
    8.5@3664x2748
    49@1832x1374
    137@912x686
    1x1
    2x2
    4x4
    0.1ms~2000ms
    8.5MPA8.5M/Special©
    1/2.4“(5.16x3.95)
    1.55x1.55250mv with 1/30s
    0.25mv with 1/30s
    10@3328x2548
    56@1664x1272
    1x1
    2x2
    0.1ms~2000ms
    5.1MPA5.1M/AR0521©
    1/2.5“ (5.70x4.28)
    2.2x2.218.8ke-/lux
    73dB
    40dB
    15.5@2592x1944
    49.5@1296x972
    97.5@648x486
    1x1
    2x2
    4x4
    0.1ms~2000ms
    4.1MPA4.1M/IMX347©
    1/1.8“ (7.795x4.408)
    2.9x2.92376mv with 1/30s
    0.15mv with 1/30s
    20@2688x1536
    30@2048x1536
    40@1536x1536
    100@1344x768
    1x1
    1x1
    1x1
    1x1
    0.1ms~5000ms
    3.1MPA3.1M/AR0330©
    1/3“ (4.51x3.38)
    2.2x2.21.9v/lux-sec
    100dB
    39dB
    27.3@2048x1534
    53.3@1024x770
    1x1
    2x2
    0.1ms~2000ms
    USB3.0 Digital USB Microscope Camera Microscope Accessories A59.2211
    Other Specification
    Spectral Range380-650nm (with IR-cut Filter)
    White BalanceROI White Balance/ Manual Temp Tint Adjustment/NA for Monochromatic Sensor
    Color TechniqueUltra-Fine Color Engine/NA for Monochromatic Sensor
    Capture/Control SDKWindows/Linux/macOS/Android Multiple Platform SDK(Native C/C++, C#/VB.NET, Python, Java, DirectShow, Twain, etc)
    ADC8 Bit
    Recording SystemStill Picture and Movie
    Cooling System*Natural
    Operating Environment
    Operating Temperature(in Centidegree)-10~ 50
    Storage Temperature(in Centidegree)-20~ 60
    Operating Humidity30~80%RH
    Storage Humidity10~60%RH
    Power SupplyDC 5V over PC USB Port

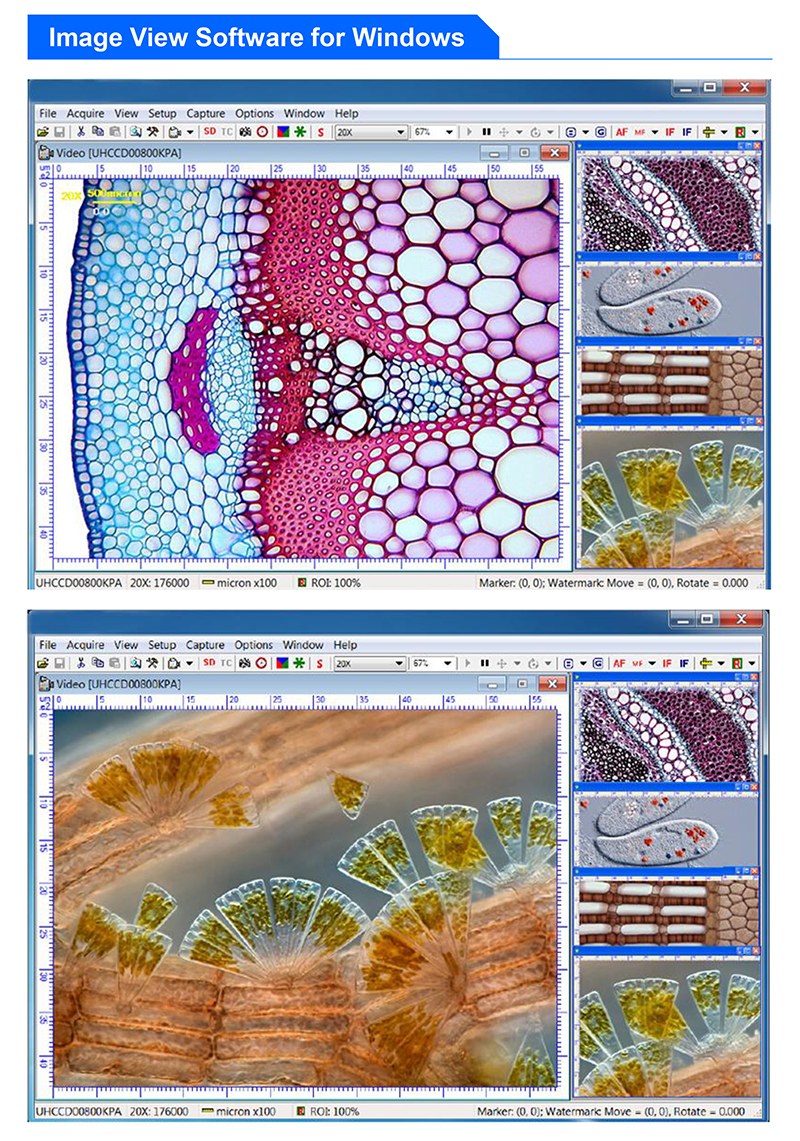

    Software Environment
    Operating SystemMicrosoft ® Windows ® XP / Vista / 7 / 8 /10 /11 (32 & 64 bit)
    OSx(Mac OS X)
    Linux
    PC RequirementsCPU: Equal to Intel Core2 2.8GHz or Higher
    Memory:2GB or More
    USB Port:USB3.0 High-speed Port
    Display:17” or Larger
    CD-ROM
    USB3.0 Digital USB Microscope Camera Microscope Accessories A59.2211
    Standard Camera Packing List
    ACarton L:52cm W:32cm H:33cm (20pcs, 12~17Kg/ carton), not shown in the photo
    BGift box L:15cm W:15cm H:10cm (0.67~0.7Kg/ box)
    COne U3CMOS series camera
    DHigh-speed USB3.0 A male to B male gold-plated connectors cable /2.0m
    ECD (Driver & utilities software, Ø12cm)

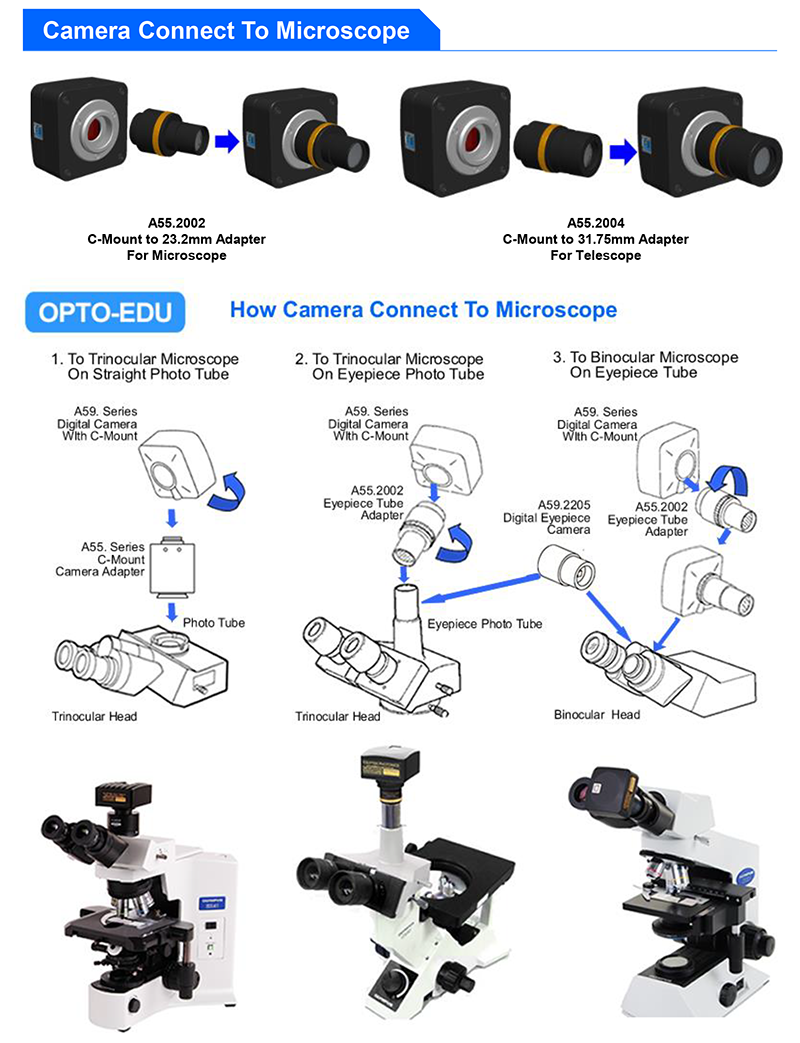

    Optional Accessory
    FAdjustable lens adapterC-mount to Dia.23.2mm eyepiece tube
    (Please choose 1 of them for your microscope)
    108001/AMA037
    108002/AMA050
    108003/AMA075
    C-mount to Dia.31.75mm eyepiece tube
    (Please choose 1 of them for your telescope)
    108008/ATA037
    108009/ATA050
    108010/ATA075
    GFixed lens adapterC-mount to Dia.23.2mm eyepiece tube
    (Please choose 1 of them for your microscope)
    108005/FMA037
    108006/FMA050
    108007/FMA075
    C-Mount to Dia.31.75mm eyepiece tube
    (Please choose 1 of them for your telescope)
    108011/FTA037
    108012/FTA050
    108013/FTA075
    Note: For F and G optional items, please specify your Camera type(C-mount, microscope camera or telescope camera) , ToupTek engineer will help you to determine the right microscope or telescope camera adapter for your application;
    H108015(Dia.23.2mm to 30.0mm ring)/Adapter rings for 30mm eyepiece tube
    I108016(Dia.23.2mm to 30.5mm ring)/ Adapter rings for 30.5mm eyepiece tube
    J108017(Dia.23.2mm to 31.75mm Ring)/ Adapter rings for 31.75mm eyepiece tube
    KCalibration kit106011/TS-M1(X=0.01mm/100Div.);
    106012/TS-M2(X,Y=0.01mm/100Div.);
    106013/TS-M7(X=0.01mm/100Div., 0.10mm/100Div.)
