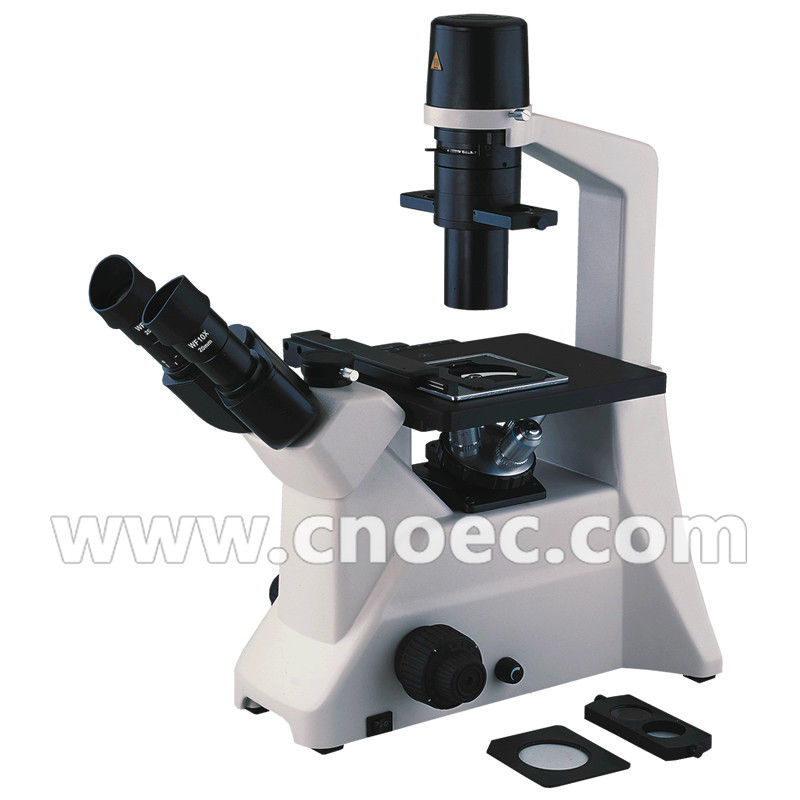

A19.2601 Inverted Phase Contrast Microscope Specification

Head

Seidentopf Trinocular Head,45° Inclined, Interpupilary
Distance 50-75mm, Light Distribution (binocular tube:
photo tube): Both 100:0 and 20:80

Eyepiece

WF10x/20mm

WF16x/13mm

10x Reticle Eyepiece (0.1mm)

Long Working Distance Objective

Plan Objective LPL4x/0.10 WD=17.5mm

Plan Objective LPL25x/0.40 WD=5.0mm

Plan Objective LPL40x/0.65 WD=3.0mm

Plan Phase Contrast Objective LPL Ph+ 10x/0.25 WD=7.9mm

Plan Phase Contrast Objective LPL Ph+ 25x/0.40 WD=5.0mm

Plan Phase Contrast Objective LPL Ph+ 40x/0.65 WD=3.0mm

Focus System

Low positioned, coaxial coarse & fine focusing system,
coarse 42mm/rot, fine 0.2mm/rot, minimum reading 2μm

Nosepiece

Quadruple

Stage

Mechnical Stage 206(X) x 170(Y)mm, with attached
mechanical stage moving range 71(X) x 77(Y)mm,
including cultural vessel, minimum reading 0.1mm

Condenser

N.A. 0.35, working distance 45/102mm, diaphragm center adjustable

Phase Contrast

Phase Contrast Slider 10x

Phase Contrast Slider 25x

Phase Contrast Slider 40x

Adapter

C-Mount Adapter 1x

Filter

Blue & Green

Light Source

Transmiting light, 6V 20W halogen lamp

Power Supply

85-265V, 50/60Hz

Packing

Carton, size 59x59x38cm, G/N weight 15/11Kgs

Optional Accessories

Item No.

Long Working Distance Objective

Plan Objective LPL2.5x/0.07, WD=29.7mm

A52.2608-2.5

Plan Objective LPL10x/0.25, WD=7.9mm

A52.2608-10

Culture Dish Holder

65mm

A54.2606-65

54mm

A54.2606-54

35mm

A54.2606-35

Stage

Attached Mechanical Stage for 96 holes Plate

A54.2601

Adapter

C-Mount Adapter 0.6x (Focus Adjustable)

A55.2601-B06

Digital SLR Camera Adapte

For Nikon

A55.2622-N

For Sony

A55.2622-S

For Canon

A55.2622-C

Light Source

Upgrade to 6V30W Halogen

A56.2650-30W

Other

Micrometer 0.1mm

A58.2601-M
