A12.0904 Laboratory Microscope | A | B |
Optical System | Color Corrected Infinity Optical System |
Head | Binocular, 30° Inclinded, 360° Rotatable, Interpupillary Distance 54~75mm, Diopter Adjustable +/-5° | o |
Trinocular, 30° Inclinded, 360° Rotatable, Interpupillary Distance 54~75mm, Diopter Adjustable +/-5° | o |
Eyepiece | PL10x/22m, High Eyepoint, With Eye-cup |
Nosepiece | Reversed Quintuple Nosepiece |
Objective | Infinity Plan Achromatic Objectives
4x/0.1, W.D. 7.18mm
10x/0.25, W.D. 4.70mm
20x/0.40, W.D. 1.75mm
40x/0.65, W.D. 0.72mm
100x/1.25 W.D. 0.15mm |
Working Stage | Double Layer Mechanical Stage, 175*145mm, Moving Range 75*50mm, Moving Precision 0.1mm |
Focusing | Low Position Coaxial Focusing System, WIth Tension Adjustment and Up-limit. Coarse Focusing Range 25mm, Fine Focusing Precision 0.002mm |
Condenser | N.A.1.2/0.22 Swing Achromatic Condenser, With Scale Marked Diaphragm |
Illumination | Built-in Koehler Illumination 6V30W Halogen Light (Philips 5761), Brightness Continously Adjustable, Center Pre-fixed |
Filter | Blue Filter Dia.45mm |
Power | 90~240V Wide Range Voltage |
Stand | Ergonomic Design, The Inverted "Y" Shape, Support Microscope Extra Lateral Stability |
A12.0904 Laboratory Microscope Optional Accessories | Item No. |
Eyepiece | PL10x/22m, High Eyepoint | A51.0903-1516 |
PL10x/22r, Plan Eyepiece with Cross, High Eyepoint | A51.0905-1022r |
Dark Field | Dark Field Condenser, Dry, N.A=0.9 | A5D.0912-D |
Dark Field Condenser, Immersion, N.A=1.2 | A5D.0912-W |
A5C.0905-IPInfinity Plan Phase Contrast Set | Centering Telescope | A5C.0910-30 |
Infinity Plan Phase Contrast Objective 10x/0.25, W.D. 4.70mm | A5C.0636-10 |
Infinity Plan Phase Contrast Objective 20x/0.25, W.D. 1.75mm | A5C.0636-20 |
Infinity Plan Phase Contrast Objective 40x/0.65, W.D. 0.72mm | A5C.0636-40 |
Infinity Plan Phase Contrast Objective 100x/1.25, W.D.0.15mm | A5C.0636-100 |
Infinity Phase Contract Disc Condenser, Abbe N.A.1.25 | A5C.0912-PCI |
Polarizing Set | Polarizer, Dia. 45mm | A5P.0917-P |
Analyizer Slide | A5P.0917-A |
λ Slide | A5P.0917-C1 |
Rotatable Working Stage | A5P.0917-RW |
Upgrade to A15.0901 Polarizing Microscope
Upgrade to A15.0902 Polarizing Microscope |
Fluorescent | Upgrade to A16.0902 Fluorescence Microscope, APO
Upgrade to A16.0903 Disc Fluorescence Microscope, APO |
Metallurgical | Upgrade to A13.0904 Metallurgical Microscope |
Digital | Upgrade to A31.0904 Digital Laboratory Microscope |
Filter | Yellow, Dia.45mm | A56.0935-XYY |
Green, Dia.45mm | A56.0935-XYG |
Neutral, Dia.45mm | A56.0935-XYF |

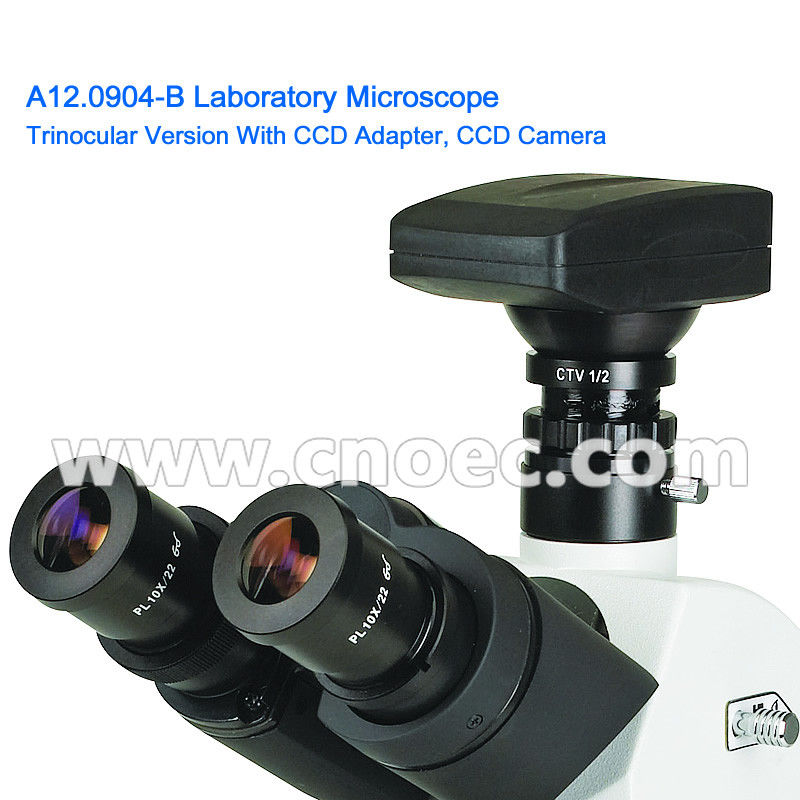

Adapter | C-Mount, 1.0x, Focus Adjustable | A22..0926-10 |
C-Mount, 0.67x, For 2/3" CCD, Focus Adjustable | A22..0926-67 |
C-Mount, 0.50x, For 1/2" CCD, Focus Adjustable | A22..0926-50 |
C-Mount, 0.35x, For 1/3" CCD, Focus Adjustable | A22..0926-35 |
