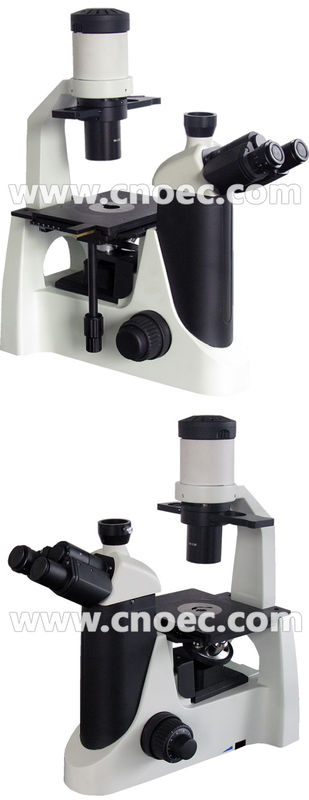

Specification | A14.2702 Inverted Microscope |
Optical System | UCIS infinity independent achromatic optical system |
Frame | One-piece construction from arm to base |
Head | Seidentopf trinocular head, 30° inclined, interpupilary distance
52-75mm, diopter adjustable |
Eyepiece | Plan WF10x/20mm, high eyepoint up to 21mm, |
Centering Attachment | Centering telescope |
Objective | Infinity LWD plan achromatic objective 10x |
Infinity LWD plan achromatic objective 20x |
Infinity LWD plan achromatic objective 40x |
Infinity LWD plan phase contrast objective 20x |
Focus System | Coaxial coarse and fine focus mechanism with markings, fine focus
sensitivity 1μm, coarse range 14mm |
Nosepiece | Quintuple, reversed type with positive click stops |
Stage | Low position, mechanical stage, size 180x150mm, moving range
80x50mm. |
Drop specimen holder(φ110) |
Specimen holder |
Light Source | Abbe condenser N.A. 0.30 with iris diaphragm, with phase contrast
slider, long work distance 72mm |
6V30W Halogen lamp house |
Electrical parts for 6V30W halogen lamp |
6V30W Halogen bulb |
250V/3.15A Φ5x20 fuse |
Power supply 110-240V 50/60Hz |
Blue filter (Φ34) |
Green filter (Φ34) |
Yellow filter (Φ34) |
Phase Contrast | Phase contrast slider (for 10x/20x/40x phase contrast and
brightfield observation) |
Other | Allen screw driver 2mm |
| Dust cover |
| Power cord |
Optional Accessories | Item No. |
Head | Seidentopf binocular head, 30° inclined, interpupillary distance
52-75mm, diopter adjustable | A53.2702-3 |
Seidentopf binocular head, 30° inclined, interpupillary distance
52-75mm, diopter adjustable (for FOV 22mm) | A53.2702-2B |
Seidentopf trinocular head, 30° inclined, interpupillary distance
52-75mm, diopter adjustable (for FOV 22mm) | A53.2704-2A |
Eyepiece | WF10x/18mm, plan, reticule eyepiece, high eyepoint up to 21mm
diopter adjustable | A51.2703-10 |
Eyepiece 16x/13mm, plan | A51.2701-1613A |
WF10x/22mm,plan, high eyepoint | A51.2701-10C |
WF10X/20mm, reticule eyepiece, high eye-point, diopter adjustable | A51.2703-10A |
Objective | Infinity LWD plan achromatic objective 4x | A5M.2730-4C |
IInfinity LWD Plan Achromatic Objective 60x | A5M.2730-60B |
Infinity LWD plan phase-contrast objective 10x (positive) | A5C.2735-10PB |
Infinity LWD plan phase-contrast objective 40x (positive) | A5C.2735-40PB |
Infinity LWD Plan Phase-Contrast Objective 10x (Negative) | A5C.2735-10NB |
Infinity LWD Plan Phase-Contrast Objective 20x (Negative) | A5C.2735-20NB |
Infinity LWD Plan Phase-Contrast Objective 40x (Negative) | A5C.2735-40NB |
Stage | Fixed Stage, Size 240x180mm, | A54.2707-1 |
Fluorescence Attachment | 100W Mercury lamp house | A5F.2712 |
100W Power supply unit | A5F.2713 |
100W Mercury lamp | A5F.2716-H |
100W Mercury lamp (Osram) | A5F.2716-I |
Fluorescence illuminator | A5F.2714-10 |
Excitation filter B | A5F.2711-CAB |
Excitation filter G | A5F.2711-CAG |
Excitation filter UV | A5F.2711-CAUV |
Excitation filter V | A5F.2711-CAV |
Adapter | 1.0x C-Mount | A55.2701-10 |
0.5x C-Mount | A55.2701-05 |
0.25x C-Mount (suitable for 1/3" CCD) | A55.2701-25 |
Digital Camera Adapter, (Need To Know Camera Model Number) | A55.2702-2 |
