Specification | A12.2701-A | A12.2701-B |

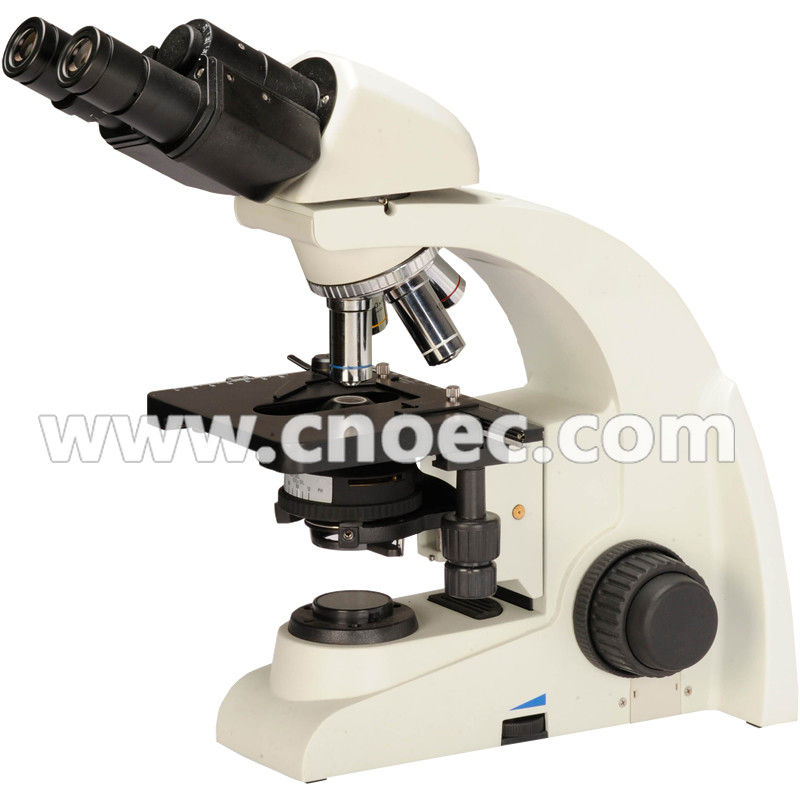

Head | Binocular Head,30° Inclined, 360° Rotatable, Interpupillary
Distance 52-75mm, ±5 Diopter Adjustment | Trinocular Head,30° Inclined, 360° Rotatable, Interpupillary
Distance 52-75mm, ±5 Diopter Adjustment |
Eyepiece | WF10x/18mm, High Eye-point Up To 21mm |
Objective | Infinity Achromatic Objective 4x/0.13, 10x/0.30, 40x/0.70
(Spring),100x/1.25 (Spring, Oil) |
Focus System | Low Positioned, Coaxial Coarse & Fine Focusing System With Tension
Adjustment And Up-Limited, Coarse Knob Coarse 14mm/Rot, Fine
0.1mm/Rot, Minimum Reading 1μm On Left-Side Fine Knob, Moving Range
20mm |
Nosepiece | Reversed Positioned Quadruple Nosepiece With Click Stops |
Stage | Double Layer Mechanical, Size 156x138mm, Moving Range 76x54mm. Low
Position, Right Hand Control, X-Y Coaxial Control Knob, Two Slides
Holder |
Condenser | Abbe N.A.1.25 With Iris Diaphragm And With Socket For Phase
Contrast / Dark Field Slider, Centering Adjustable, Color-Coded
Diaphragm Scale Marking Corresponded With The Objectives Of
Different Power |
Filter | Blue Filter Dia. 38mm, (Not Available For LED Illumination) |
Light Source | 6V 20W Halogen Lamp, Kohler Type With Field Diaphragm |
Power Supply | 100-240V Wide Power Range, CE Certified |
|
|
A12.2701 Optional Accessories | Item No. |
Head | Binocular Head,30° Inclined, 360° Rotatable, Interpupillary
Distance 48-75mm, ±5 Diopter Adjustment | A53.2702-3A |
Trinocular Head,30° Inclined, 360° Rotatable, Interpupillary
Distance 48-75mm, ±5 Diopter Adjustment | A53.2704-3A |
Eyepiece | WF10x/20mm, High Eye-point Up To 21mm | A51.2701-10B |
WF16x/13mm, High Eye-point Up To 21mm | A51.2701-1613 |
WF10x/18mm Pointer Eyepiece | A51.2702-10 |
WF10x/20mm Pointer Eyepiece | A51.2702-10B |
WF10x/18mm Reticule Eyepiece | A51.2703-10 |
WF10x/20mm Reticule Eyepiece | A51.2703-10B |
Infinity Plan Achromatic Objective | 4X/0.13 ∞/0.17,WD12.31 | A52.2706-04C |
10X/0.30 ∞/0.17,WD4.00 | A52.2706-10C |
20X/0.45 ∞/0.17,WD1.24 | A52.2706-20C |
40X/0.70 ∞/0.17,WD0.29 (Spring) | A52.2706-40C |
60X/0.80 ∞/0.17,WD0.40 (Spring) | A52.2706-60C |
100X/1.25 ∞/0.17,WD0.09 (Spring,Oil) | A52.2706-100C |
Stage | Upgrade To Double Layer Mechanical Stage, Size 156x138mm/76x54mm | A54.2701-2B |
Nosepiece | Upgrade To Quintuple Inward Nosepiece | A54.2705-A1 |
Light Source | Upgrade To LED 3W | A56.2705-E |
Upgrade To LED 3W Set Including Battery (Rechargeable) | A56.2705-EC |
Filter | Green Filter Φ32mm | A56.2706-G1 |
Yellow Filter Φ32mm | A56.2706-Y1 |
Frosted Glass Φ32mm | A56.2706-F1 |
Polarizing Attachment | Analyzer | A5P.2701-A |
Polarizer | A5P.2701-P |
Dark Field Attachment | Dark Field Condenser (Dry) | A5D.2701-D |
Dark Field Condenser (Immersion) | A5D.2701-I |
Dark Field Sliders For Objective 4x,10x,40x,100x | A5D.2701-S |
Phase Contrast Attachment | Centering Telescope | A5C.2710-C |
Phase Contrast Slider, For Infinity Phase Contrast Objective | 10x | A5C.2712-10 |
40x | A5C.2712-40 |
100x | A5C.2712-100 |
Infinity Phase Contrast Objective, Positive | 10x | A5C.2720-10P |
40x | A5C.2720-40P |
100x | A5C.2720-100P |
Infinity Phase Contrast Objective, Negative | 10x | A5C.2720-10N |
40x | A5C.2720-40N |
100x | A5C.2720-100N |
Adapter | 1.0x C-Mount | A55.2701-10 |
0.5x C-Mount | A55.2701-05 |
0.25x C-Mount | A55.2701-25 |
Digital Camera Adapter, (Need To Know Camera Model Number) | A55.2702-2 |
