Clinic Stereo Optical Microscope Stereo Zoom Microscope A23.0902-S1

    Buy cheap Clinic Stereo Optical Microscope Stereo Zoom Microscope A23.0902-S1 from wholesalers

    Buy cheap Clinic Stereo Optical Microscope Stereo Zoom Microscope A23.0902-S1 from wholesalers
    • Buy cheap Clinic Stereo Optical Microscope Stereo Zoom Microscope A23.0902-S1 from wholesalers
    • Buy cheap Clinic Stereo Optical Microscope Stereo Zoom Microscope A23.0902-S1 from wholesalers

    Clinic Stereo Optical Microscope Stereo Zoom Microscope A23.0902-S1

    Ask Lasest Price
    Brand Name : CNOEC, OPTO-EDU
    Certification : CE|Rohs
    Model Number : A23.0902-S1
    Price : FOB $1~1000, Depend on Order Quantity
    Delivery Time : 5~20 Days
    Payment Terms : T/T, West Union, Paypal
    Supply Ability : 5000 pcs/ Month
    • Product Details
    • Company Profile

    Clinic Stereo Optical Microscope Stereo Zoom Microscope A23.0902-S1


    Clinic Stereo Optical Microscope Stereo Zoom Microscope A23.0902-S1


    Description:


    --0.7~4.5x Zoom Lens, with WF10x/20mm Eyepiece,
    --Total Optical Magnification 7~45x
    --Single Arm Universal Pole Stand


    Specifications:


    A23.0902-S1 Zoom Stereo Microscope Specification

    B1

    T1

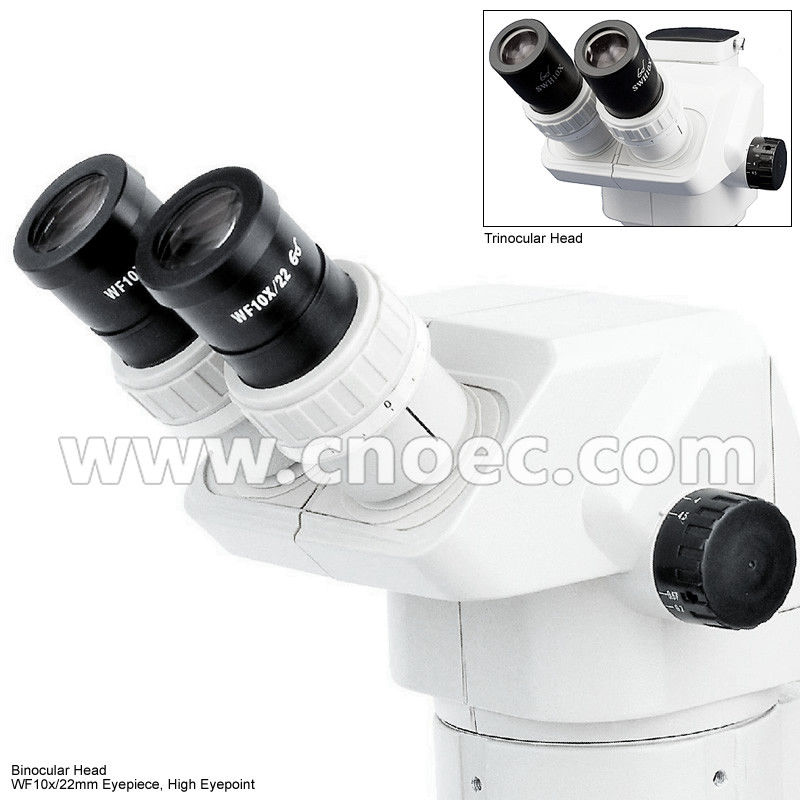

    Head

    Binocular Head, 45° inclined, 360°Rotatable, ±5 Diopter Adjustable,

    Interpupillary Adjustment 54-75mm

    o

    Trinocular Head, 45° inclined, 360°Rotatable, ±5 Diopter Adjustable,

    Interpupillary Adjustment 54-75mm

    o

    Eyepiece

    WF10x/22mm, High Eyepoint

    Zoom Lens

    0.67~4.5x

    Zoom Ratio

    1:6.7

    Magnification

    6.7x~45x, (2x~225x with Auxliliary Objective)

    Working Distance

    100mm, With Auxiliary Objectives 26~287mm

    Light Source

    No Light Source

    Stand

    Single Arm Universal Pole Stand STL1, Height 308mm,

    Focusing Pole Height 104mm, Level Move Range 235mm, Base 230*230*40mm,

    A23.0902-S1 Zoom Stereo Microscope Optical Data Sheet

    Auxiliary Lens

    0.3x

    0.4x

    0.5x

    0.75x

    1.0x

    1.5x

    2.0x

    Working Distance

    287mm

    217mm

    177mm

    117mm

    100mm

    47mm

    26mm

    WF 10x

    Magnification

    2.0-13.5x

    2.7-18.0x

    3.4-22.5x

    5.0-33.8x

    6.7-45.0x

    10.1-67.5x

    13.4-90.0x

    View Field(mm)

    109.5-16.3

    82.1-12.2

    65.7-9.8

    43.8-6.5

    32.8-4.9

    21.9-3.3

    16.4-2.4

    WF 15x

    Magnification

    3.0-20.3x

    4.0-27.0x

    5.0-33.8x

    7.5-50.6x

    10.1-67.5x

    15.1-101.3x

    20.1-135x

    View Field(mm)

    79.6-11.9

    59.7-8.9

    47.8-7.1

    31.8-4.7

    23.9-3.6

    15.9-2.4

    11.9-1.8

    WF 20x

    Magnification

    4.0-27.0x

    5.4-36.0x

    6.7-45.0x

    10.1-67.5x

    13.4-90.0x

    20.1-135.0x

    26.8-180x

    View Field(mm)

    59.7-8.9

    44.8-6.7

    35.8-5.3

    12.9-2.4

    17.9-2.7

    11.9-1.8

    9-1.3

    WF 25x

    Magnification

    5.0-33.8x

    6.7-45.0x

    8.4-56.3x

    12.6-84.4x

    16.8-112.5x

    25.1-168.8x

    33.5-225x

    View Field(mm)

    44.8-6.7

    33.6-5.0

    26.9-4.0

    17.9-2.7

    13.4-2.0

    9.0-1.3

    6.7-1.0


    A23.0902-S1 Zoom Stereo Microscope Optional Accessories

    Cata. No.

    Head

    Binocular Head + WF10x/20mm

    A23.0902-BH

    Trinocular Head + WF10x/20mm

    A23.0902-TH

    Eyepiece

    WF10x/20mm, High-eyepoint, Outside Dia. 30mm

    A51.0923-10

    WF15x/15mm, High-eyepoint, Outside Dia. 30mm

    A51.0923-15

    WF20x/10mm, High-eyepoint, Outside Dia. 30mm

    A51.0923-20

    WF10x/20mm,with Reticle

    A51.0933-10

    WF15x/15mm,with Reticle

    A51.0933-15

    WF20x/10mm,with Reticle

    A51.0933-20

    Auxiliary Lens

    0.5X,W.D. 165mm

    A52.0928-05

    0.75X,W.D. 105mm

    A52.0928-75

    1.5X,W.D. 45mm

    A52.0928-15

    2.0X,W.D. 30mm

    A52.0928-20

    CCD Adapter

    0.50x, For 1/2" CCD

    A55.0933-1/2

    0.35x, For 1/3" CCD

    A55.0933-1/3
