    400X Plan Phase Contrast Inverted Optical Microscope Halogen Lamp Rohs CE A14.0202

    Ask Lasest Price
    Brand Name : CNOEC, OPTO-EDU
    Certification : CE|Rohs
    Model Number : A14.0202
    Price : FOB $1~1000, Depend on Order Quantity
    Delivery Time : 5~20 Days
    Payment Terms : T/T, West Union, Paypal
    Supply Ability : 5000 pcs/ Month
    • Product Details
    • Company Profile

    400X Plan Phase Contrast Inverted Optical Microscope Halogen Lamp Rohs CE A14.0202

    400X Plan Phase Contrast Inverted Optical Microscope Halogen Lamp Rohs CE A14.0202

    A14.0202 Inverted Phase Contrast Microscope is equipped with wide field eyepieces, long working distance plan achromatic objectives, long working distance condenser and phase contrast unit. It can observe transparent and unfinished living specimen in culture bottle or culture utensil. It is the ideal tools for research of living specimen structure, liquid, deposits and so on.
    --Wide Field Eyepiece WF10x/20
    --Sliding Phase Contrast Included
    --Coaxial Coarse/Fine Focus System, Minimum Division 0.002mm
    --Halogen Lamp 6V 20W With Brightness Control

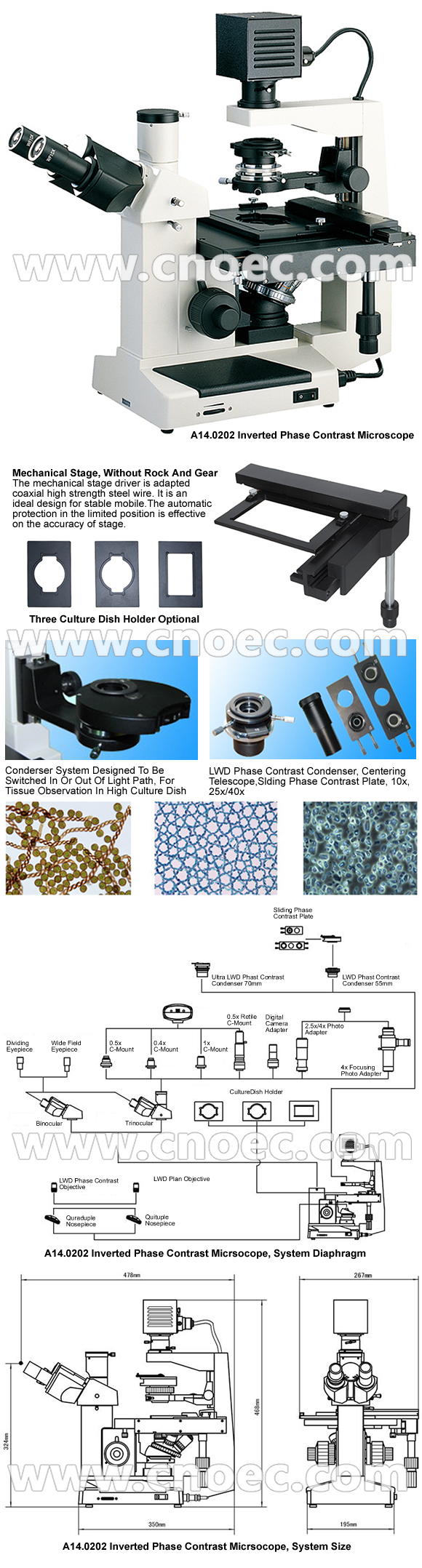

    A14.0202 Inverted Phase Contrast Microscope
    MagnificationTotal 100~400x
    HeadTrinocular Head, 30° Inclined, 100 Ligh Pass For Photography
    Eyepiece

    WF10x/20mm Wide Field

    NosepieceQuadruple
    ObjectiveLWD Plan Achromatic Objective
    PLL10x/0.25, W.D.8.8mm
    PLL 25x/0.40, W.D.4.8mm
    PLL 40x/0.60, W.D.3.3mm
    LWD Plan Phase Contrast Objective
    PLL10x/0.25 PHP2, W.D.8.1mm
    Working StageDouble Layer Mechanical Stage 224*208mm, Moving Range 112*79mm
    Culture Dish Holder, For Dia.68mm Or 77*29mm Culture Utensil
    Culture Dish Holder, For 82*57mm Culture Utensil
    Culture Dish Holder, For 128*85mm 96 Holes Culture Utensil
    FocusingCoaxial Coarse & Fine Focus Knob, With Tension Adjustable And Limit Stopper, Minimum Division 0.002mm
    CondenserLong Working Distance Phase Contrast Condener,
    N.A.0.4, Working Distance 50mm, Rack & Pinion Adjustable
    Sliding
    Phase Contrast
    Sliding Phase Plate 10x
    Centering Telescope Eyepiece 10x
    FilterBlue, Green, Frost Filter
    Light SourceKohler Illumination, 6V30W Halogen Lamp, Brightness Adjustable
    Optional Accessories
    EyepieceWF16x/11mmA51.0203-16A
    Dividing Eyepiece 10x/20mm, 0.1mm/DivA51.0205-G10A
    Sliding Phase ContrastLWD Plan Phase Contrast ObjectivePLL25x/0.40 PHP2, W.D.4.78mmA5C.0232-25a
    PLL40x/0.60 PHP2, W.D.3.32mmA5C.0232-40a
    Ultra Long Working Distance Phase Contrast Condener,
    N.A.0.4, Working Distance 70mm
    A5M.0210-6
    Sliding Phase Contrast Plate 25x/40xA5C.0211-5
    FilterYellow FilterA56.0209-3
    AdapterCCD Adapter 0.5xA55.0202-04
    Digital SLR Camera Adapter for Canon EF SeriesA55.0204-02
