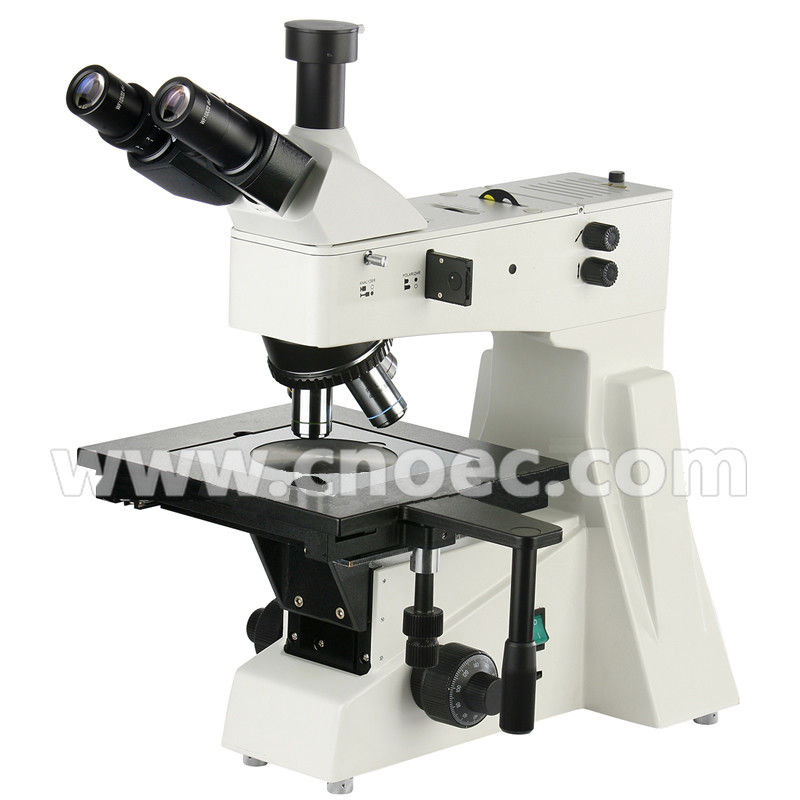

    500X Digital Dark Field Metallurgical Optical Microscope Halogen Lamp A13.0207


    Compound Digital Metallurgical Optical Microscope Halogen Lamp A13.0207


    Description:
    A13.0207 Up-Right Bright/Dark Field Metallurgical Microscope can be used for bright-field, dark-field, simple polarizing observations. It is the ideal instruments for inspecting semiconductors, packages, electronics substrates, materials. Features
    ●With long working distance plan achromatic objectives (no cover glass) and wide-field eyepieces, can get clear pictures and wide view field
    ● With large move range mechanical stages,moving range:8"×8"(204mm×204mm)
    ● Coaxial coarse/fine focus system, with tensional adjustable and up stop, minimum division of fine focusing: 0.8μm
    ● 6V 30W or 12V 50W halogen lamp, adjustable brightness
    ● Trinocular, can switch to normally/polarize observation, brightfield/darkfield observation. can send 100% of light to the binocular eyepieces or to the top port



    Specifications:

    Specification
    A13.0207 Metallurigical Microscope
    A
    B
    Head
    Trinocular head, inclined 30 can be shot in 100% light flux.
    Eyepiece
    Wide field WF10X(field number:Φ22mm)
    Infinity Plan Achromatic Objective
    PL L5X/0.12 WD 26.1mm (Bright field objectives)
    PL L10X/0.25 WD 20.2mm (Bright field objectives)
    PL L20X/0.40 WD 8.80mm (Bright field objectives)
    PL L50X/0.70 WD 3.68mm (Bright field objectives)
    PL L80X/0.80 WD 1.25mm (Bright field objectives)
    PL L5X/0.12 BD WD 9.70mm (Bright & Dark field objectives)
    PL L10X/0.25 BD WD 9.30mm(Bright & Dark field objectives)
    PL L20X/0.40 BD WD 7.23mm(Bright & Dark field objectives)
    PL L50X/0.70 BD WD 2.50mm(Bright & Dark field objectives)
    PL L80X/0.80 BD WD 1.25mm(Bright & Dark field objectives)
    Epi- illumination System
    6V30W halogen and brightness enable control
    12V50W halogen and brightness enable control
    Integrated field diaphragm, aperture diaphragm and (Y,B,G, ground glass) switching device. Push-pull type analyzer and polarizer.
    Focus System
    Coaxial coarse/fine focus system, with tension adjustable and limit stopper, minimum division of fine focusing: 0.7 μm
    Nosepiece
    Quintuple (Backward ball bearing inner locating)
    Stage
    Mechanical stage,overall size:280mmX270mm,moving range: 204mmX204mm
    Optional Accessories
    ObjectiveDividing eyepiece(field number:Φ22mm) 0.10mm/Div
    A51.0205-G10B
    ObjectivePL L40X/0.65Work distance:0.66mmEquipped with bright field objectives
    A5M.0235-40
    PL L60X/0.85Work distance:0.25mm
    A5M.0235-60
    PL L100X/0.85Work distance:0.4mm
    A5M.0235-100
    PL L40X/0.60Work distance:3.0mmEquipped with bright & dark field objectives
    A5M.0237-40
    PL L60X/0.70Work distance:1.9mm
    A5M.0237-60
    PL L100X/1.25Work distance:0.35mm
    A5M.0237-100
    StageMechanical, moving range is 250mmX230mm Move range:154mmX154mm
    A54.0205-18
    CCD Adapter0.5X
    A55.0202-4
    1X
    A55.0202-2
    0.5X with dividing 0.1mm/Div
    A55.0202-3
    Digital Camera AdapterCANON EF digital SLR camera adapter
    A55.0204-01
