    Learning Inverted Metallurgical microscopes Halogen Lamp Microscope A13.0208

    Ask Lasest Price
    Brand Name : CNOEC, OPTO-EDU
    Certification : CE|Rohs
    Model Number : A13.0208
    Price : FOB $1~1000, Depend on Order Quantity
    Delivery Time : 5~20 Days
    Payment Terms : T/T, West Union, Paypal
    Supply Ability : 5000 pcs/ Month
    • Product Details
    • Company Profile

    Learning Inverted Metallurgical microscopes Halogen Lamp Microscope A13.0208


    Learning Inverted Metallurgical microscopes Halogen Lamp Microscope A13.0208



    Specifications:

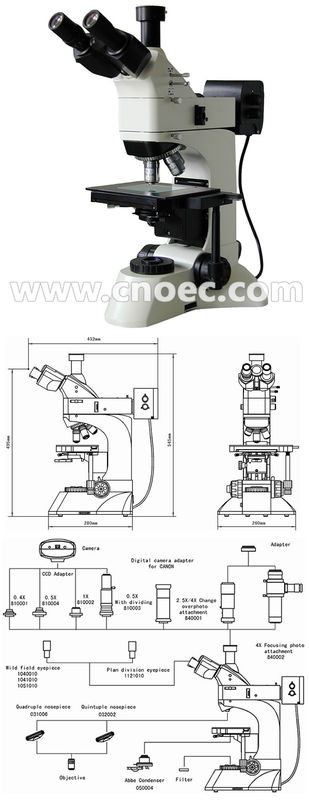

    A13.0208 Metallurgical Microscope Specification
    A
    B
    EyepieceWide field WF10X(Φ22mm)
    Infinity Plan Achromatic Objectives
    Long working distance 26.1mm (no cover glass) PL L5X/0.12
    Long working distance 20.2mm (no cover glass) PL L10X/0.25
    Long working distance 3.98mm (no cover glass) PL L40X/0.60 (spring)
    Long working distance 3.18mm (no cover glass) PL L60X/0.75 (spring)
    Head
    Trinocular, Inclination of 30 degree (Analyzer with field diaphragm to switch)
    Reflected Illumination
    6V 30w, halogen lamp, brightness control.
    With field diaphragm, aperture diaphragm, polarizer, Y,B,G filter, frosted filter
    Transmitted Illumination
    Abbe condenser NA.1.25 Rack & pinion adjustable
    Blue filter and frosted filter
    Collector for illumination with halogen lamp (With field diaphragm )
    6V 20w halogen lamp, brightness control.
    Focus System
    Coaxial coarse/fine focus system, with tensional adjustable and limit stopper, minimum division of fine focusing: 0.002mm.
    Nosepiece
    Quintuple (Backward ball bearing inner locating)
    Stage
    Double layer mechanical (Size:210mmX140mm,movingrange:75mmX50mm)
    Optional Accessories
    Item No.
    Eyepiece
    Dividing eyepiece 10X(Φ22mm) 0.10mm/Div
    A51.0205-G10B
    Infinity Plan Achromatic Objectives
    Long working distance 8.80mm (no cover glass) PL L 20X/0.40
    A5M.0236-20
    Long working distance 3.68mm (no cover glass) PL L 50X/0.70
    A5M.0236-50
    Long working distance 1.25mm (no cover glass) PL L 80X/0.80
    A5M.0236-80
    Long working distance 0.4mm (no cover glass) PL L 100X/0.85
    A5M.0236-100
    Filter
    Green filter
    A56.0209-2
    Yellow filter
    A56.0209-3
    CCD Adapter
    0.4X
    A55.0202-1
    0.5X
    A55.0202-4
    1X
    A55.0202-2
    0.5X with dividing 0.1mm/Div
    A55.0202-3
    Digital Camera Adapter
    CANON EF digital SLR camera adapter
    A55.0204-01
