    200X APO Metallurgical Microscopes , WF10X - 22mm Rohs CE A13.0210

    Ask Lasest Price
    Brand Name : CNOEC, OPTO-EDU
    Certification : CE|Rohs
    Model Number : A13.0210
    Price : FOB $1~1000, Depend on Order Quantity
    Delivery Time : 5~20 Days
    Payment Terms : T/T, West Union, Paypal
    Supply Ability : 5000 pcs/ Month
    • Product Details
    • Company Profile

    200X APO Metallurgical Microscopes , WF10X - 22mm Rohs CE A13.0210


    APO Metallurgical Microscopes Bright Field Microscopes Rohs CE A13.0210



    Specifications:

    Specification
    A13.0210 Metallurigical Microscope
    A
    B
    Eyepiece
    Wide field WF10X(field number:Φ22mm)
    Infinity Plan Achromatic ObjectivePL L10X/0.25 (Work distance):20.2 mm(Equipped with bright field objectives)
    PL L20X/0.40 (Work distance):8.80 mm(Equipped with bright field objectives)
    PL L50X/0.70 (Work distance):3.68 mm(Equipped with bright field objectives)
    PL L100X/0.85 (Dry)Work distance):0.4 mm(Equipped with bright field objectives)
    PL L5X/0.12 BD (Work distance):9.7 mm(Equipped with bright & dark field objectives)
    PL L10X/0.25 BD (Work distance):9.30 mm(Equipped with bright & dark field objectives)
    PL L20X/0.40 BD (Work distance):7.23mm(Equipped with bright & dark field objectives)
    PL L50X/0.70 BD (Work distance):2.50 mm(Equipped with bright & dark field objectives)
    Eyepieces Tube
    Inclination angle is 45°and interpupillary distance is 53~75mm.
    Focus System
    Coaxial coarse/fine focus system, with tension adjustable and limit stopper, minimum division of fine focusing: 2μm
    NosepieceQuintuple (Backward ball bearing inner locating)
    Stage
    Mechanical stage,overall size:242mmX200mm,moving range: 30mmX30mm
    Rotundity and rotatable stage size: maximal measurement is Ф130mm and minimal clear aperture is less then Ф12mm.
    Illumination System
    6V30W halogen and brightness enable control.
    12V50W halogen and brightness enable control.
    Integrated field diaphragm , aperture diaphragm and puller type polarizer.
    Equipped with frosted glass and yellow ,green and blue filters

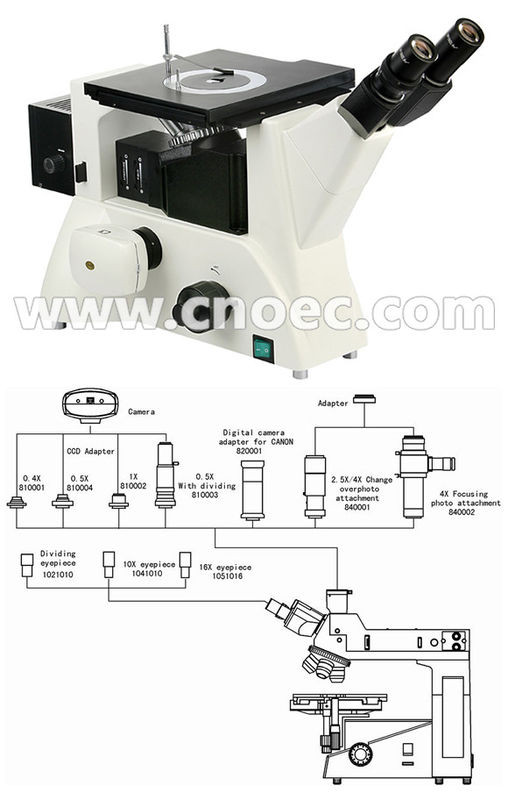

    Optional Accessories
    Item NO.
    EyepieceDividing eyepiece(field number:Φ22mm) 0.10mm/Div
    A51.0205-G10B
    ObjectivePL L5X/0.10 (Work distance):26.12 mmEquipped with bright field objectives
    A5M.0235-5
    PL L40X/0.60 (Work distance):3.68 mm
    A5M.0235-40
    PL L60X/0.70 (Work distance):3.18 mm
    A5M.0235-60
    PL L80X/0.80 (Work distance):1.28 mm
    A5M.0235-80
    PL L40X/0.60 BD (Work distance):3.00 mmEquipped with bright & dark field bjectives
    A5M.0237-40
    PL L60X/0.70 BD (Work distance):1.90 mm
    A5M.0237-60
    PL L80X/0.80 BD (Work distance):0.80mm
    A5M.0237-80
    PL L100X/0.85 BD (Work distance):0.22 mm
    A5M.0237-100
    CCD Adapter0.5X
    A55.0202-4
    1X
    A55.0202-2
    0.5X with dividing 0.1mm/Div
    A55.0202-3
    Digital Camera AdapterCANON EF digital SLR camera adapter
    A55.0204-01
