    Binocular Head Compound Metallurgical Optical Microscope A13.0209

    Ask Lasest Price
    Brand Name : CNOEC, OPTO-EDU
    Certification : CE|Rohs
    Model Number : A13.0209
    Price : FOB $1~1000, Depend on Order Quantity
    Delivery Time : 5~20 Days
    Payment Terms : T/T, West Union, Paypal
    Supply Ability : 5000 pcs/ Month
    • Product Details
    • Company Profile

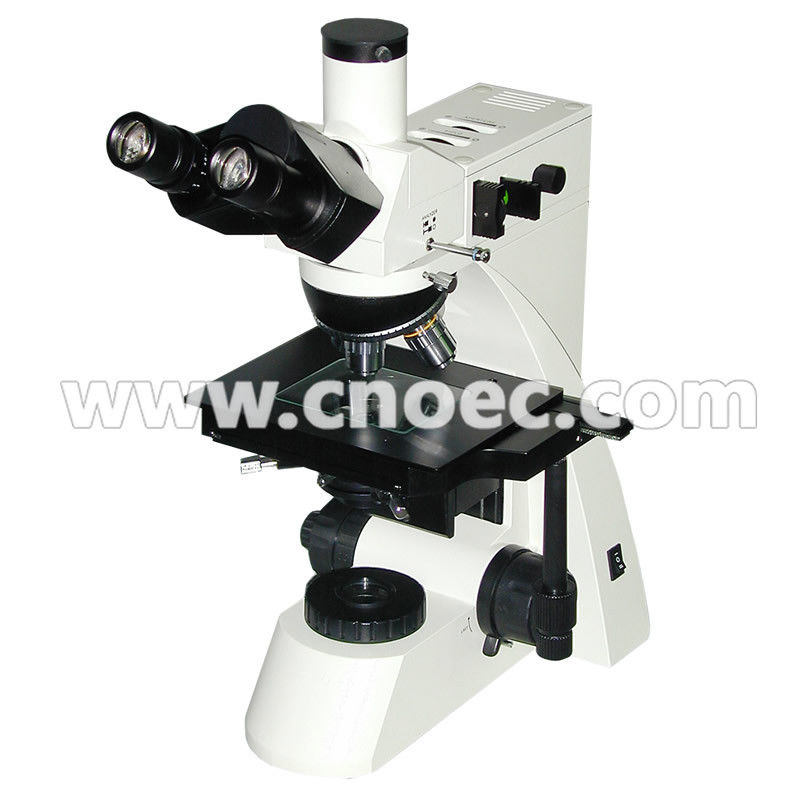

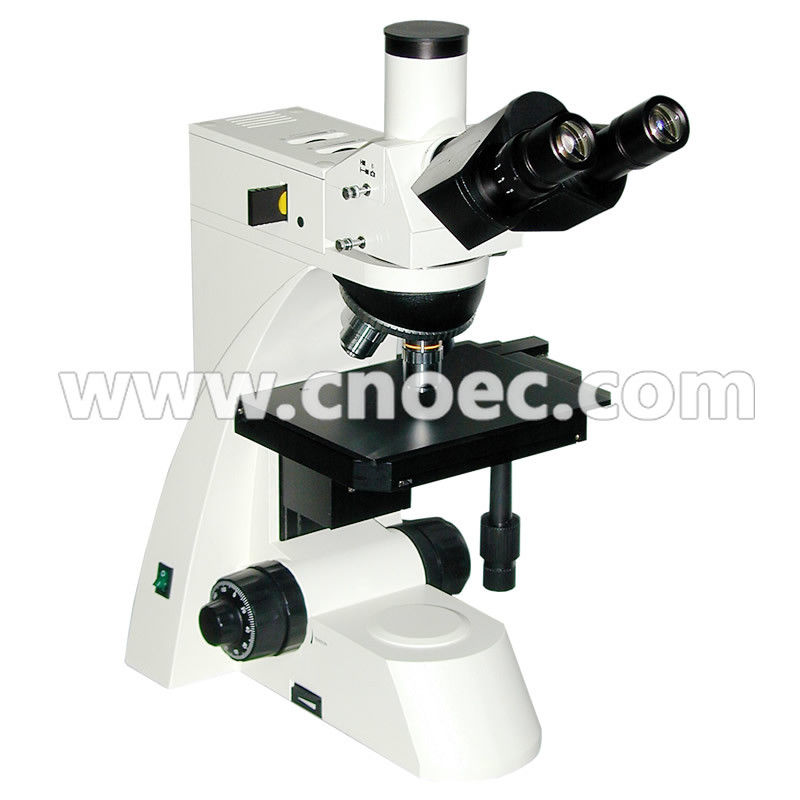

    Binocular Head Compound Metallurgical Optical Microscope A13.0209


    Binocular Compound Metallurgical Optical Microscope A13.0209


    Description:

    A13.0209 metallurgical microscope is used for identification and analysis of the structures in different metals and alloys, it is the important instrument for researching metallography in metal physics.
    --Plan achromatic objectives with long working distance (no cover glass)
    --Coaxial coarse/fine focusing system with tension adjustable and up stop
    --6V 20W halogen lamp with brightness control
    --Trinocular head can switch between normal observation and polarizing observation



    Specifications:

    Specification
    A13.0209-A
    A13.0209-B
    Eyepiece
    WF10X(Φ18mm)
    Objective
    Plan long working distance (no cover glass) PL5x/0.12
    Plan long working distance (no cover glass) PLL10x/0.25
    Plan long working distance (no cover glass) PLL20x/0.40
    Plan long working distance (no cover glass) PLL50x/0.7
    Head
    Trinocular, inclination of 30°, analyzer with field diaphragm to switch
    Vertical illumination Unit
    6V 20W halogen lamp with brightness control
    Vertical illumination with field diaphragm, aperture diaphragm and polaizer, (YBG) filter and ground glass
    Transmited Illumination UnitAbbe condenser N.A.=1.25, Rack & pinion adjustable
    Blue filter and ground glass
    Collector for illumination with halogen lamp (With filed diaphragm)
    6V 20W, halogen lamp, adjustable brightness
    Focus System
    Coaxial coarse/fine focus system, with tensional adjustable and up stop, minimum division of fine focusing: 2um
    Nosepiece
    Quadruple back ball bearing inner locating
    Stage
    Double layer mechanical, size 210x140mm, moving range 75x50mm
    Optional Accessories
    Item No.
    EyepieceWide field WF16x/11mmA51.0203-16A
    Divding 10x, 0.1mm/DivA51.025-G10
    Objective
    Plan long working distance (no cover glass) PLL40x/0.60A5M.0212-40
    Plan long working distance (no cover glass) PLL60x/0.75(Spring)A5M.0212-60
    Plan long working distance (no cover glass) PLL80x/0.80A5M.0212-80
    Plan long working distance (no cover glass) PLL10x/0.85(Spring)A5M.0212-100A
    Plan achromatic (no cover glass) PL100x/1.25A5M.0212-100
    NosepieceQuintuple backward ball bearing inner locatingA54.0203-2
    CCD Adapter0.4x
    A55.0202-1
    0.5x
    A55.0202-4
    1x
    A55.0202-2
    0.5x with dividing 0.1mm/Div
    A55.0202-3
    Photo Adapter
    2.5x/4x change over photograph attachment with 10x viewing eypiece
    A55.0201-1
    4x focusing photograph attachmentA55.0201-2
    MD adapterA55.0201-3
    PK adapter
    A55.0201-4
    DC Adapter
    Digital Camera Adapter for CANON(A610,A620,A630,A640)
    A55.02024-01
