50X - 400X Research Metallurgical Optical Microscope Bright Field Microscopes A13.0211

50X - 400X Cordless Metallurgical Optical Microscope A13.0211

Description:
New in 2009!
A13.0211 upright Bright/Dark field Transmitted/Reflected light metallurgical microscope, is a kind of multifunction industry inspecting microscope. It is equipped with bright or dark field objectives, wide field eyepieces and integrated polarization observation device, the Kohler illuminator is used in the transmitted and reflected illuminating system, the whole field is clear and uniformity. It is suitable for inspecting, such as semi-conductor silicon wafer, LCD floor plate, electrociucuit plate, solid powder and all kind of industry sample that translucent or opaque. It is the ideal instruments in research work in biology, metallography, mineralogy, precision engineering, electronics, ets.
--UIS optical system and modularization function design
--Long working distance bright or dark field plan objectives (no cover glass), the fild is wide and clear
--Coaxial coarse/fine focus system, with tension adjustable and up stop, minimum division of the focusing: 2um
--Maximal movement of stage is about 30mm
--Integrated polarization observation device, the polarizer can be circled 360 degree
--The reflecting illuminator is 12V50W halogen lamp and the lamp box cover can be revolved, replacing lamp facility and safety.
-- The transmitted illuminator is 12V30W halogen lamp and adding radiator
--Trinocular head can be observation for eyepieces and microphotography in 100% light flux, suits for the dark field microphotography.

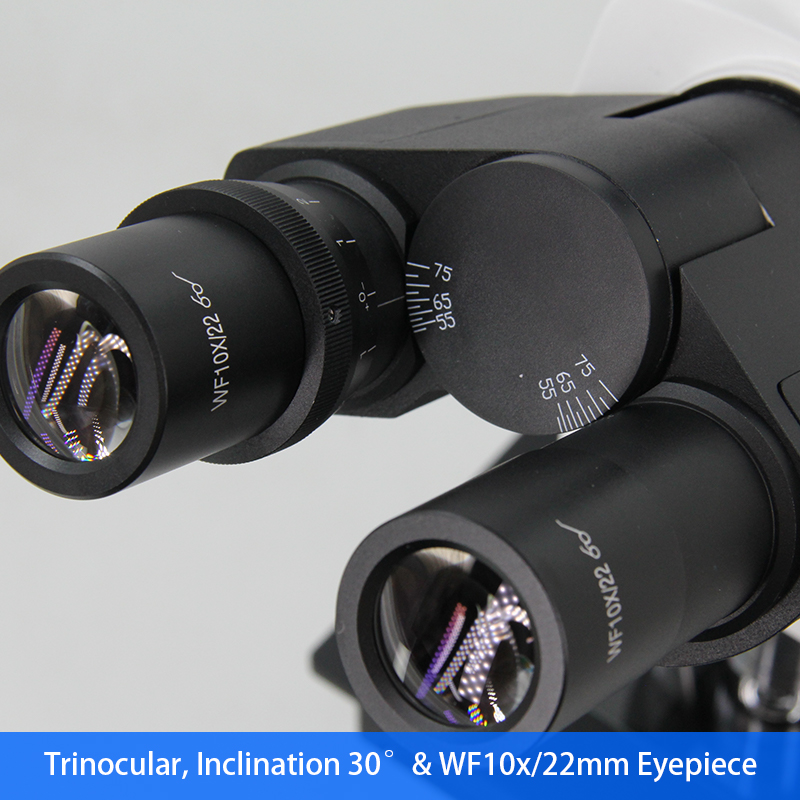

Trinocular Head

Eliminated by adjusting the interpupillary distance so that the distance of the eyepiece tube

is identical with interpupillary distance. When observe through two eyepieces,

alter the exit pupil center distance of the eyepiece tubes by turning the left or right frame body

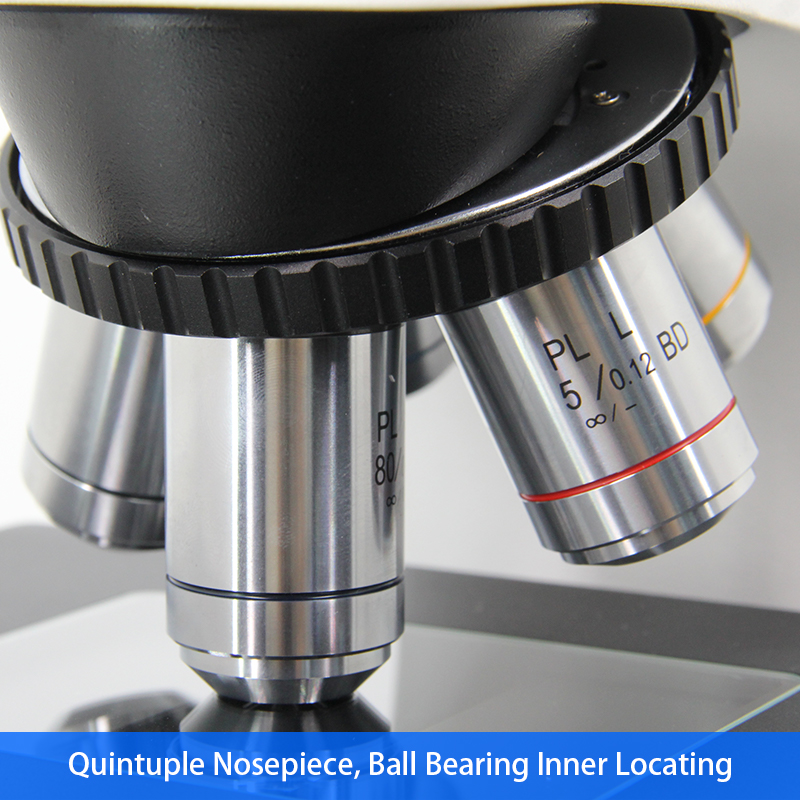

Quintuple Nosepiece, Ball Bearing Inner Locating

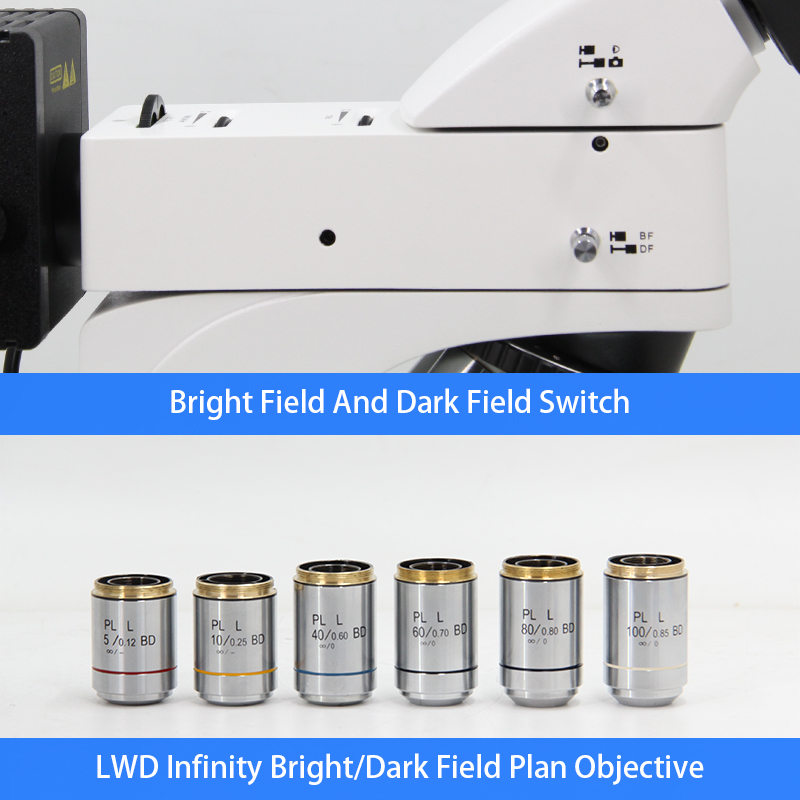

LWD Infinity Bright Field Plan Objective (No Cover Glass)

Working Stage

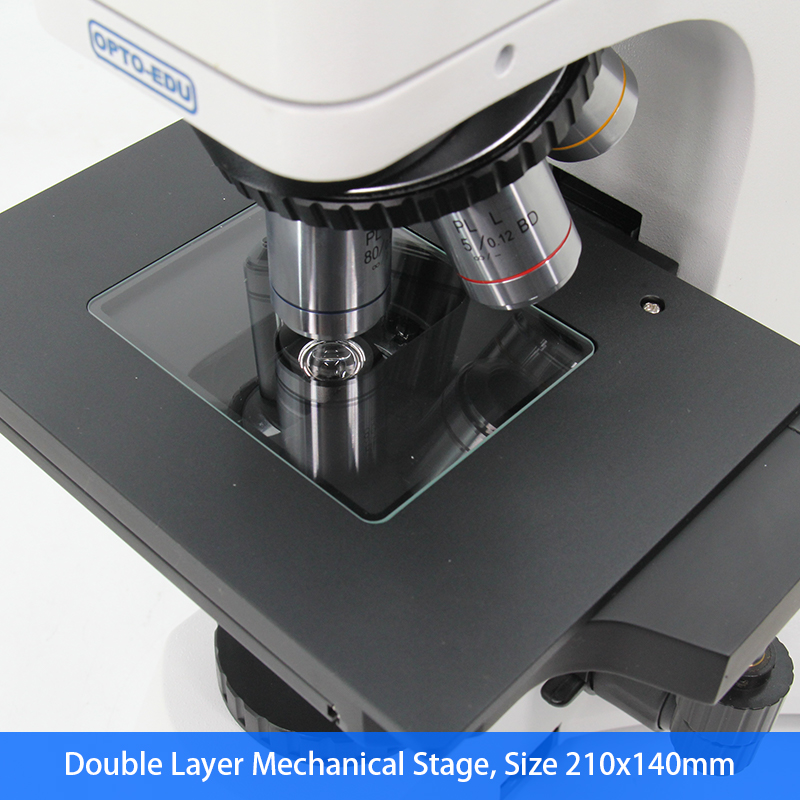

Double Layer Mechanical Stage, Size 210x140mm, Moving Range 63x50mm

Abbe Condenser

N.A.=1.25, Rack & Pinion Up/Down Adjustable

Opto-Edu (Beijing) Co., Ltd.
