    100X Polarizing Metallurgical Optical Microscope Trinocular / Monocular A13.0217

    Ask Lasest Price
    Brand Name : CNOEC, OPTO-EDU
    Certification : CE|Rohs
    Model Number : A13.0217
    Price : FOB $1~1000, Depend on Order Quantity
    Delivery Time : 5~20 Days
    Payment Terms : T/T, West Union, Paypal
    Supply Ability : 5000 pcs/ Month
    • Product Details
    • Company Profile

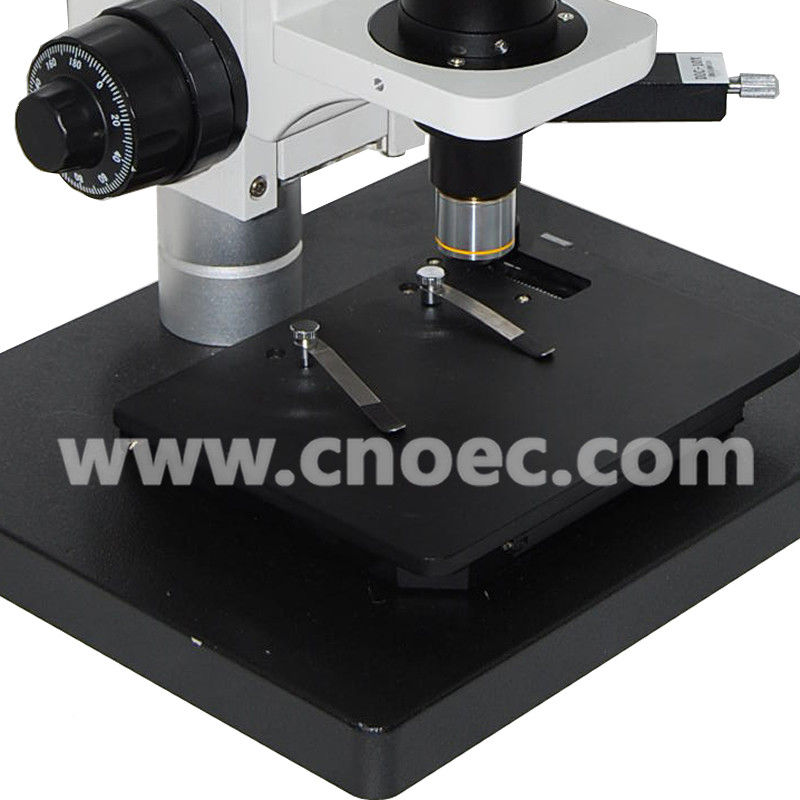

    100X Polarizing Metallurgical Optical Microscope Trinocular / Monocular A13.0217


    100X Polarizing Metallurgical Optical Microscope Trinocular / Monocular A13.0217


    Description:


    Metallurgical Optical Microscope uses a different lighting method than a conventional microscope and can illuminate solid specimens to identify, inspect, and measure them. Some industries use inverted metallurgical microscopes, which observe the specimen from below the stage or table. Electronic parts manufacturers, forensic laboratories, and metal foundries all use this type of instrument.


    Specifications:


    A13.0217 DIC Metallurgical Microscope
    Specifications
    A13.0217-A
    A13.0217-B
    HeadMonocular headTrinocular head
    Total Magnification
    100X
    Mechanical Tube Length

    ?޼/font>

    Objective Conjugate Distance?޼/font>
    EyepieceWF10X(??18mm), eyepiece adapter: ??23.2mm, parfocal distance: 10mm
    ObjectiveStrainfree plan achromatic objective PL 10x/0.25, working distance: 20.2mm
    Focus SystemCoaxial coarse/fine system focus, Minimum division of fine focusing: 2um
    With tensional adjustable
    StageDouble layer mechanical, size 180x145mm, moving range 35x30mm. Max. sample height: 130mm
    DIC Board10x DIC board use with the objective, horizon adjustable
    FilterBlue filter
    Frosted filter
    CollectorFor halogen lamp
    Polarizing AttachmentPolarizer, 360?㠲otatable,switched in or out
    Analyser can be switched in or out
    Light sourceHigh brightness Led light, brightness control
    Power supply85V??265V 50/60Hz
    Optional Accessories
    Item No.
    EyepieceWF15x/11mmA51.0203-16A
    WF20x/11mmA51.0203-20A
    ObjectiveStrainfree plan achromatic objective 5x/0.1, W.D.:18.2mm
    Strainfree plan achromatic objective 20x/0.4, W.D.:8.8mm
    CCD Adapter1xA55.0202-02
    0.5xA55.0202-04
    2x SLR digital camera adapterA55.0204-02
    Digital cameraWith USB output(1.3M/3M/5M/9M pixel, with image analysing softwareA59.0204
