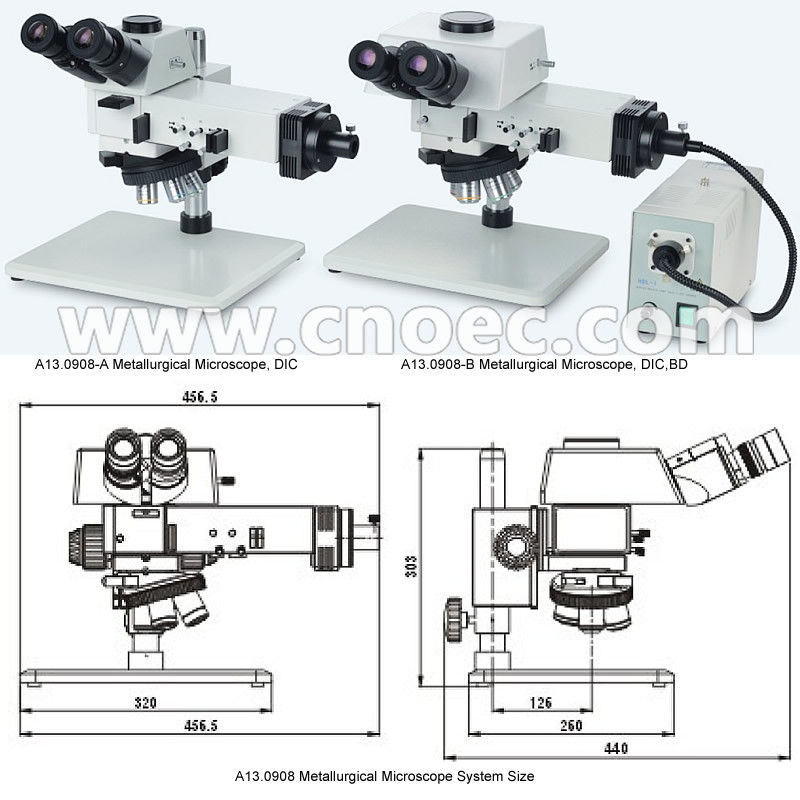

A13.0908 BD, DIC Metallurgical Microscope

A

B

Optical System

Bright Field/Oblique illumination, Polarizig, DIC

o

Bright Field/Dark Field, Polarizig, DIC

o

Head

30° Inclinded Trinocular Postive Head, Spiltting Ratio 100:0 or 50:50,

Diopter Adjustable +/-5, Interpupillary Distance 54~75mm

o

25°Inclinded Trinocular Postive Head, Spiltting Ratio 100:0 or 0:100,

Diopter Adjustable +/-5, Interpupillary Distance 54~75mm

o

Eyepiece

High Eyepoint Plan PL10x/22mm

Objective

●Long Working Distance Infinity Plan Metallurgical DIC Achromatic Objectives
LMPL5X/0.15 WD10.8MM
--LMPL10X/0.3 WD10MM
--LMPL20X/0.45 WD4MM
●Long Working Distance Infinity Plan Metallurgical Achromatic Objectives
--LMPL50X/0.55 WD7.8MM

o

●Long Working Distance Infinity Plan Metallurgical BD DIC

Achromatic Objectives
--LMPL5X/0.15 WD10.8MM
--LMPL10X/0.3 WD10MM
--LMPL20X/0.45 WD4MM
●Long Working Distance Infinity Plan Metallurgical BD Achromatic Objectives
--LMPL50X/0.55 WD7.8MM

o

Nosepiece

Intilted, Quintuple Bright Field, With DIC Slot

o

Intilted, Quintuple Bright/Dark Field, With DIC Slot

o

Focusing

Coaxial Coarse & Fine Focusing, Coarse Focus Range 32mm,

Fine Focusing Precision 0.002mm,With Tension Adjustable Device to Prevent Gliding

Base

B5 Big Flat Base, Size 320*260*16mm, Post Height 280mm, DIameter 32mm

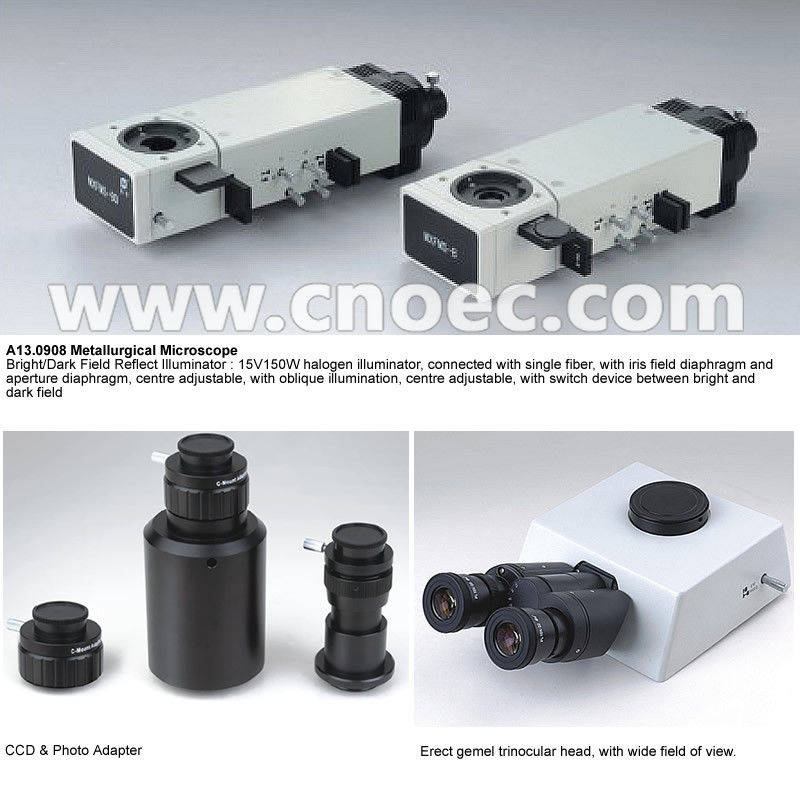

Illumination

15V150W Cold Halogen Lamp, Intensity Continuously Adjustable,
Soft Single Optical Fiber 550mm (1000mm/1500mm Optional)

Reflect Illumination, With Iris Field Diaphragm and Aperture Diaphragm,

Central Adjustable, with Filter SLot and Polarizing Slot, With Switch of

Oblique Illumination

o

Reflect Illumination, With Iris Field Diaphragm and Aperture Diaphragm,

Central Adjustable, with Filter SLot and Polarizing Slot, With Switch

Device Between Bright and Dark Field

o

Polarizing

Fixed Polarizer Flashboard, Dia.30mm

360° Rotatable Analyser Flashboard

Power

90-240V Wide Voltage, One Way Power Output

o

90-240V Wide Voltage, Double Way Power Output

o

A13.0908 BD, DIC Metallurgical Microscope Optional Accessories

Eyepiece

High Eyepoint Plan PL15x/16mm PL15x16

A51.0903-1516

High Eyepoint Plan PL10x/22mm, with Cross PL10x22r,

A51.0905-1022R

High Eyepoint Plan PL10x/22mm, Diopter Adjustable, PL10x22T

A51.0904-1022T

High Eyepoint Plan PL10x/23mm, Diopter Adjustable, PL10x23T

A51.0904-1023T

Light

Soft Single Optical Fiber 1000mm

A56.0944-1000

Soft Single Optical Fiber 1500mm

A56.0944-1500

DIC

DIC Attachment Set

A5M.0950

Objective

Long Working Distance Infinity Plan Metallurgical Achromatic

LMPL100X/0.8 WD2.1MM

A5M.0938-100

Long Working Distance Infinity Plan Metallurgical BD

AchromaticLMPL100X/0.8 WD2.1MM

A5M.0940-100

Filter

Interface Filter For Reflect illumination

Blue, <480nm

A5M.0951-B

Green, 520~570nm

A5M.0951-G

Red, 630~750nm

A5M.0951-R

Netural, for White Balance

A5M.0951-LBD

Adapter

0.5x C-Mount, for 1/2" CCD, Focus Adjustable

A55.0928-50

1.0x C-Mount, Focus Adjustable

A55.0928-10

Digital Camera Adapter with Photo Eyepiece

A55.0910
