| A18.1830 Motorized Digital Forensic Comparison Microscope,With
Motorized Working Table |
| Magnification | 2x~240x |
| Head | 0-45° Titable Bionocular Head, Interpupilary Distance 48~75mm,
Diopter +/-5 Adjustable |
| Eyepiece | WF10x/22mm, High Eyepoint |
| WF20x/12mm, High Eyepoint |
| Nosepiece | 6 Hole Click Stop Nosepiece |
| Objective | LWD Infinity Plan Achromatic Objective 0.5x, 1x, 1.5x, 2x, 4x,6x |
| Auxiliary Lens 0.4x, 2.0x |
| Working Distance | 101mm |
| View Field | Dia. 2.3~62mm |
| Magnification Correcting | Magnification Correction System, With Correcting Lens |
| Separation Line Adjusting | Seperation Line Adjust System In Back, With Special Designed Adjust
Driver |
| Working Stage | Square Manual Working Stage 90*90mm, Moving Range 54*54*54mm |
| Round Titable Working Stage Dia. 90mm, 0-45° Inclined, 360°
Rotatable |
| Joint Left/Right Moving Range 54mm, Joint Up/Down Range 60mm |
| Light Source | 12V50W Fan Cooling Strong Halogen Light, Brightness Adjustable,2pcs |
| 5W LED Cold Light, High Brightness, Brightness Adjustable,2pcs |
| Coaxial Light Lens, To Observe In Deep Hole, Or Smooth Object
Surface,2pcs |
| Polarizing Light Lens, To Eliminate Flare Lights And Dazzling
Lights,2pcs |
| Transmit Bottom Light (Built-in Working Stage) |
| Ultraviolet Light Lens,2pcs |
| Filters: Red, Blue, Yellow, Green,2pcs Each Color |
| Adapter | 0.5x CCD Adapter For Digital Camera,1pc |
| Front View Photo Adapter 2.5X For SLR Digital Camera (Nikon And
Canon) |
| CCD Camera | Built-in 3.0M High Resolution Color CCD Camera,USB 2.0
Output,2048*1536 Pixels,Pixel Size 3.2*3.2μm |
| Software | Incl. Laptop |
| Professional Forensic Image Analysis Software |
| Motorized/Manual Viewfield Changeover Full /Split /Overlapping
Image |
| Motorized/Manual Control Working Stage X/Y/Z 3D Movement |
| Motorized/Manual Control Round Working Stage Rotation +/- Direction |
| Motorized/Manual Control To Change Objective Magnification |
| Working Table | A18.1830 Include Motorized Working Table,
Size 60*120mm, Height 65mm, Motorized Up/Down 160mm |
| Power | 80~240V Wide Range Voltage |
| Bullet Holder | Standard Bullet Holder 2 Sets,Bullet Holder Set for all kinds of
Bullet, Cartridge and other Objects |
| Dimension | Instrument Size 40*60*72cm |
| |
| Optional Accessories |
| Light Source | 150W Cold Light Source, With Optical Fiber & Light Collector | A56.1821 |
| Bullet Holder | Motorized Bullet Holder 1 Set | A54.1813 |
| Objective | Eyepiece 10X | Eyepiece 20X | Photograpging
& Video System | Working Distance |
Mag./Viewfield
φ22mm | Mag./Viewfield
φ12mm |
| 1X/0.03 | 10X/φ22 | 20X/φ12 | Measure
According to
Monitor & Digital
Camera | 102mm |
| 1.5X/0.04 | 15X/φ15 | 30X/φ8 |
| 2X/0.05 | 20X/φ11 | 40X/φ6 |
| 4X/0.072 | 40X/φ5.5 | 80X/φ3 |
| 6X/0.075 | 60X/φ3.7 | 120X/φ2 |
| 0.5X/0.02 | 5X/φ44 | 10X/φ24 | 138mm |

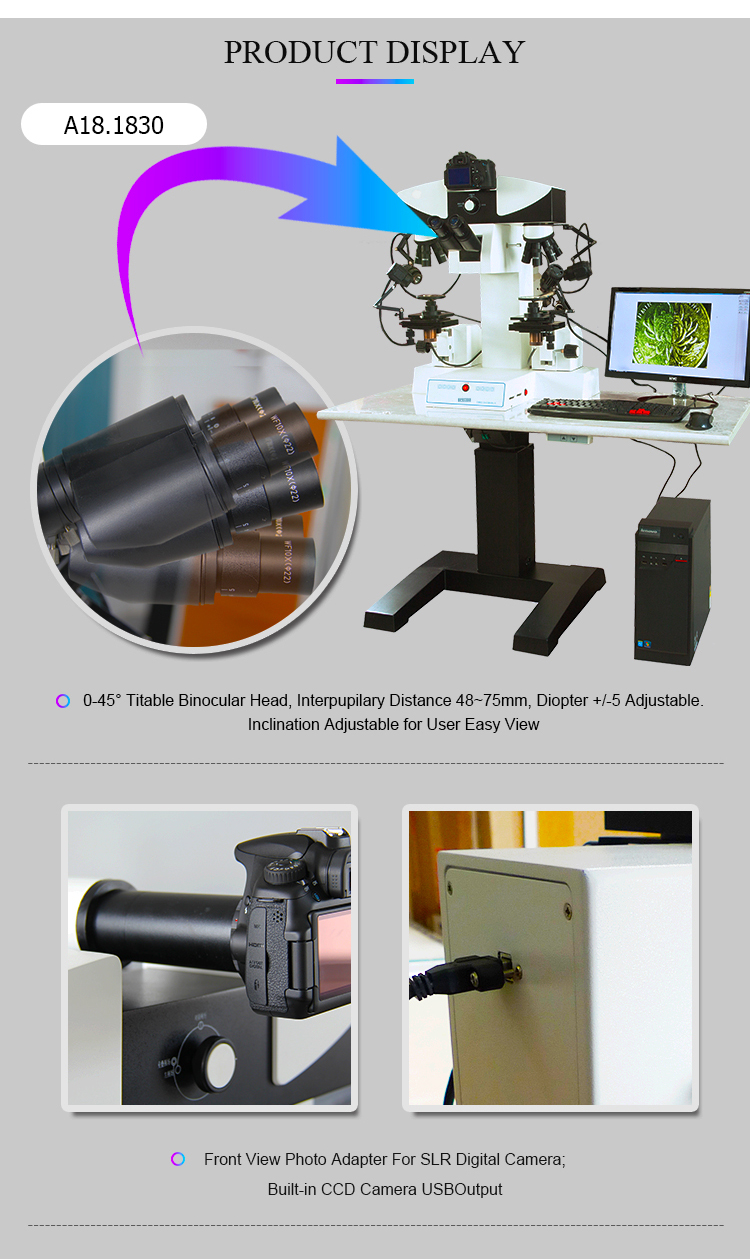

A18.1830 Motorized Digital Forensic Comparison Microscope, with
Motorized Working Table, for comparing all kinds of bullets,
cartridge cases, cutting objects, paper documents and etc. It can
be fully controlled by manual or by computer software motorized
system. Built-in high resolution digital color camera can output
real time image and video to computer, under professional crime
image analysis software.
