| A18.1825 Digital Forensic Comparison Microscope Specification |
| Magnification | 3.2x~192x |

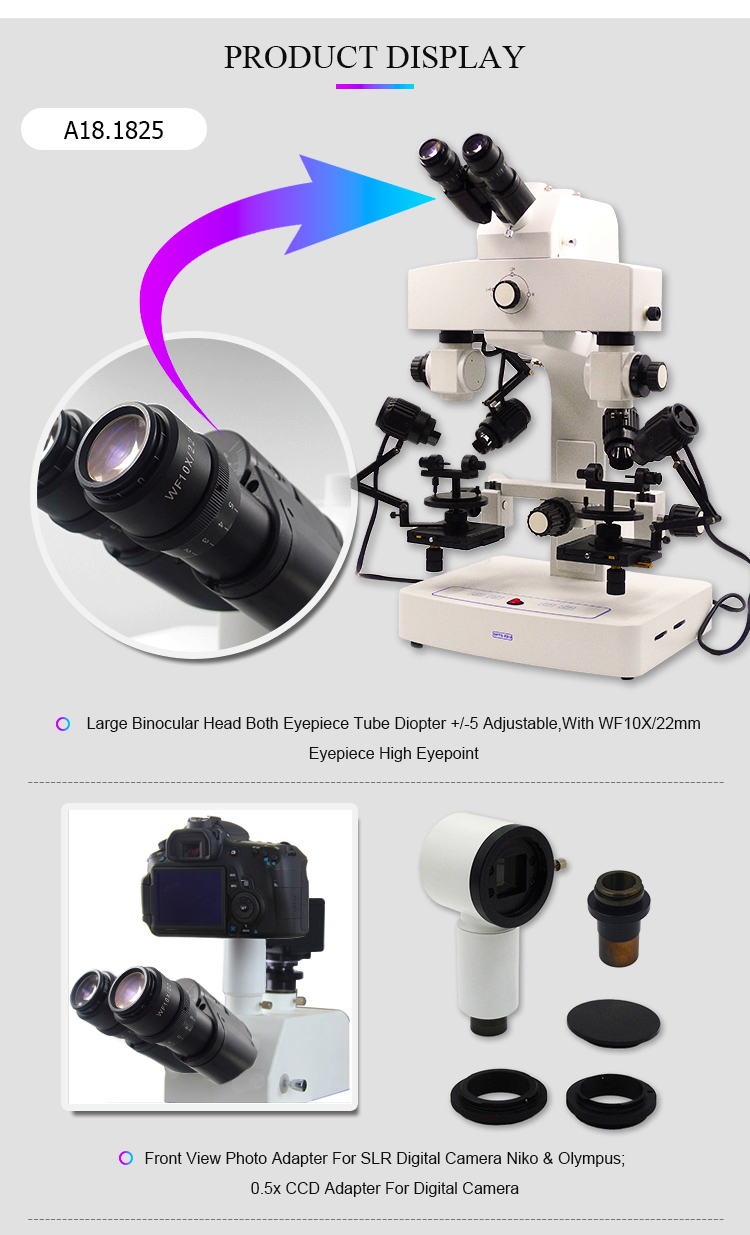

| Head | Binocular Head, 30° Incline, Interpupilary Distance 48~75mm,
Diopter +/-5 Adjustable |
| Eyepiece | WF10x/22mm, High Eyepoint |
| WF20x/12mm, High Eyepoint |
| Objective | 5 Step Zoom Plan Objective 0.8x, 1.25x, 2x, 3.2x, 4.8x |
| Auxiliary Lens 0.4x, 2.0x |
| Working Distance | 101mm |
| View Field | Dia. 2.3~62mm |
| Magnification Correcting | Magnification Correction System, With Correcting Lens |
| Separation Line Adjusting | Separation Line Adjust System In Back, With Special Designed Adjust
Driver |
| Working Stage | Square Manual Working Stage 90*90mm, Moving Range 54*54*54mm |
| Round Titable Working Stage Dia. 90mm, 0-45° Inclined, 360°
Rotatable |
| Joint Left/Right Moving Range 54mm, Joint Up/Down Range 60mm |
| Light Source | 12V50W Fan Cooling Strong Halogen Light, Brightness Adjustable,2pcs |
| 5W LED Cold Light, High Brightness, Brightness Adjustable,2pcs |
| Coaxial Light Lens, To Observe In Deep Hole, Or Smooth Object
Surface,2pcs |
| Polarizing Light Lens, To Eliminate Flare Lights And Dazzling
Lights,2pcs |
| Ultraviolet Light Lens,2pcs |
| Filters: Red, Blue, Yellow, Green,2pcs Each Color |
| Adapter | 0.5x CCD Adapter For Digital Camera,,1pc |
| Front View Photo Adapter 2.5X For SLR Digital Camera (Nikon And
Canon) |
| Power | 80~240V Wide Range Voltage |
| Bullet Holder | Standard Bullet Holder 2 Sets |
| Dimension | Instrument Size 37*30*63cm |
| |
| Optional Accessories |
| Light Source | 150W Cold Light Source, With Optical Fiber & Light Collector | A56.1821 |
| Bullet Holder | Motorized Bullet Holder 1 Set | A54.1813 |
| LCD Pad Digital Camera | 9.7'' LCD Pad Digital Camera, Android System,See A18.1825-LCD | A59.3520 |
| Mag./Viewfield | Eyepiece10X | Eyepiece20X | Photo Adapter | Video Adapter | Working Distance |
| Objective | Bridge Body |
| 0.8X | 1.2X | 9.6X/φ28 | 19.2X/φ17 | 2.5X | 0.5X | 101mm |
| 1.25X | 15X/φ18 | 19.2X/φ17 |
| 2X | 24X/φ11 | 48X/φ7 |
| 3.2X | 36X/φ7 | 77X/φ4.5 |
| 4.8X | 58X/φ4.2 | 115X/φ2.3 |
Total Magnification with 0.8x objective, auxiliary lens 0.4x, WF10x
eyepiece, magnification = 0.8*0.4*10*1.2=3.8x
|
Through optical enlargement, this comparison microscope ,can help
the user to observe clearly, by looking into the same eyepiece set,
the images in both the right and the left imaging view fields, and
compare two or more objects effectively in cutting, joining or
overlapping view fields. Due to its powerful magnification, this
instrument enables the user to perceive the differences between
very small similar objects.
OPTO-EDU is one of the top professional supplier for microscope
from China, we focus in microscope & educational field for more
than 20 years. As the top recommended seller for microsocpe on
alibaba, we have full types microscopes, including biological
microscope, stereo microscope, metallurgical microscope, inverted
microscope, fluorescent microscope, polarizing microscope, phase
contrast microscope, dark field microscope, multi-viewing
microscope, DIC microscope, AFM/STM/SPM microscope, zoom
microscope, gem microscope, digital micoscope, LCD microscope,
comparison microscope, forensic microscope, and all kinds of
microscope accessories.
Our customer comes from more than 104 countries, such as United
States, Britain, Russia, Canada, Germany, Denmark, Poland, Sweden,
U.A.E., Qatar, Saudi Arabia, Egypt, Mexico, Argentina, Chile,
Brazil, Korea, Thailand, India, Indonsia, Philliphine and so on. We
have been working tirelessly to supply China's nice quality
production to the world market!
Description:
A18.1825 Forensic Comparison Microscope, newly developed in 2013, is suitable to be used for forensic
science education & school, to give an idea and training to the
students what is a comarison microscope and learn how to use it. It
is simple but including full comparison system function, and with
steady quality at very competitive price!
★ Total Magnification 3.8x~230x
★ Wide Field Eyepiece WF10x/22mm, WF20x/12mm, High Eyepoint
★ 5 Step Zoom Plan Objective 0.8x, 1.25x, 2x, 3.2x, 4.8x
★ Auxiliary Lens 0.4x and 2.0x Included
★ Full left/right, split-image or overlapping image comparision
★ Magnification Correcting System, with Correcting Lens
★ Separation Line Adjusting System, with Special Designed Metal
Adjust Driver
★ 12V50W Fan Cooling Strong Halogen Light, Brightness Adjustable
★ 5W LED Cold Light, High Brightness, Brightness Adjustable
★ Touch Panel Switch to Control Halogen & LED Light Source On/Off
Separatly or Together
★ All Light Source Brightness Adjustable, Position & Angle
Adjustable Freely
★ Full Range Light Source Accessories Included, Coaxial Light,
Polarizing Light, Ultraviolet Lens, Red/Blue/Green/Yellow Filters
★ 80~240V Wide Range Voltage
