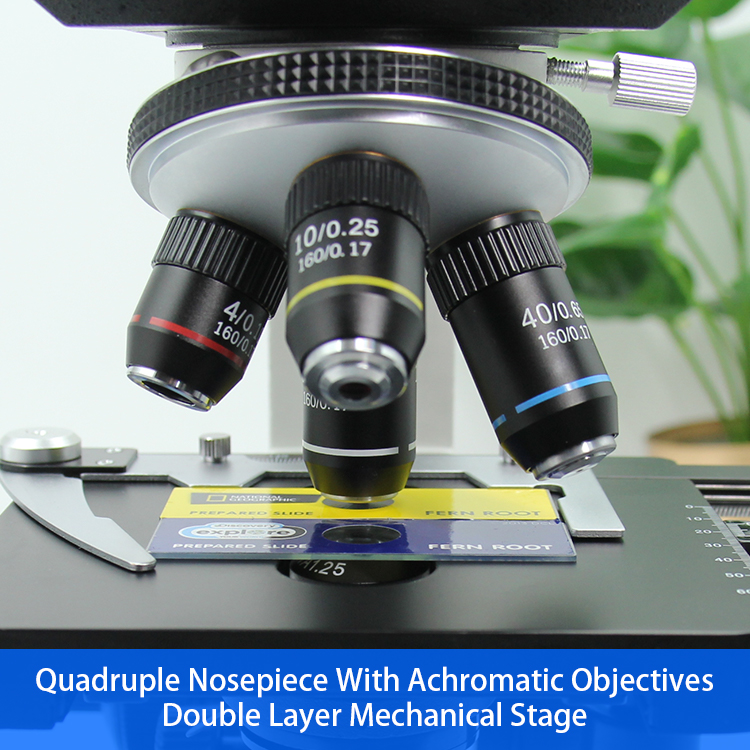

Nosepiece & Objective --Quadruple Nosepiece, With Achromatic Objectives : 4x, 10x, 40x(s),
100x(s). --40x And 100x Objective Lens Has A Spring Design, If The Front Of
The Objective Lens Is Automatically Indented, It Will Not Damage
The Objective Lens And Sample. --The 100x Objective Lens Is An Oil Objective Lens. When Used,
Cedar Oil Is Used As A Medium For Better Observation.
Working Stage --Double Layer Mechanical Stage, Size 140x140mm, Moving Range 50x75mm Medium-sized Large Working Stage, You Can Place Two Microscope
Slides For Easy Observation And Comparison. |
Condenser
--N.A. 1.25 Abbe Condenser, Iris Diaphragm, With Filter Holder.
Illumination
--Built-in Illumination 6V20W Halogen Lamp, Can Be Replaced By A
Plan-concave Mirror
Focusing
--Low Position Coaxial Coarse & Fine
Focusing, Ergonomic, Easier To Operate.
--Fine Focusing Scale 0.002mm.
--With Tension Adjustment, With Up Limit,
Personalized Settings, You Can Adjust The Tension According To
Individual Needs.
A59.3509
5.0M, 9" LCD, 1/2.8" CMOS, Screen Resolution 1024*600,
USB2.0 Real Time Image Output, TF Card, USB HDMI Mouse Control Menu
For Measure
A59.3520
5.0M, 9.7" LCD, Resolution 2048*1536, Android 5.1, CPU 4 Core 1.8G,
RAM 2G ROM 8G, HDMI+TF Card Output, Touch Screen USB Mouse Control,
Installed Measure Software, Chinese/English Manual

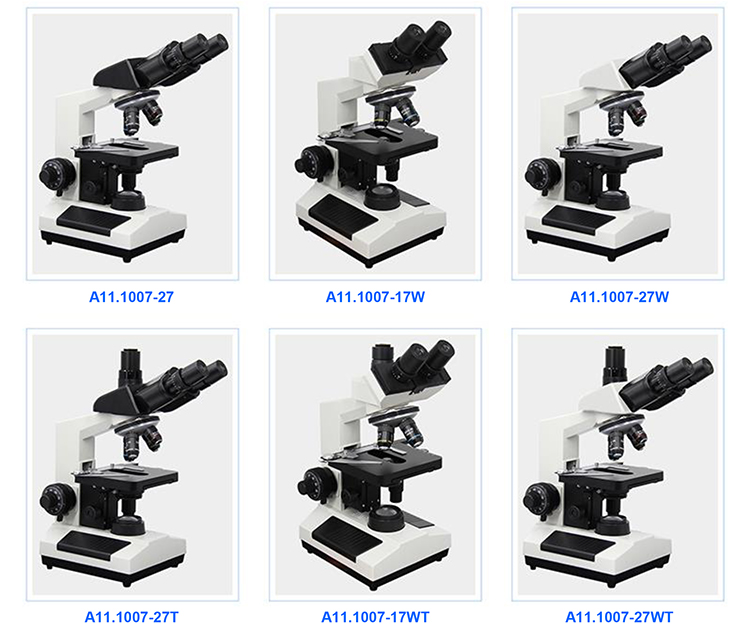

| A11.1007 Biological Microscope | 16 | 17 | 17
T | 27 | 27
T | 17
W | 17
WT | 27
W | 27
WT |
| Magnification | 40x~1600x |
| Head | Black Monocular Teaching Head, 45° Inclined, 360° Rotatable | ● | | | | | | | | |
| Black Sliding Binocular Head, 45° Inclined, 360° Rotatable | | ● | | | | | | | |
| Black Sliding Trinocular Head, 45° Inclined, 360° Rotatable | | | ● | | | | | | |
| Black Seidentopf Binocular Head, 30° Inclined, 360° Rotatable | | | | ● | | | | | |
| Black Seidentopf Trinocular Head, 30° Inclined, 360° Rotatable | | | | | ● | | | | |
| White Sliding Binocular Head, 45° Inclined, 360° Rotatable | | | | | | ● | | | |
| White Sliding Trinocular Head, 45° Inclined, 360° Rotatable | | | | | | | ● | | |
| White Seidentopf Binocular Head, 30° Inclined, 360° Rotatable | | | | | | | | ● | |
| White Seidentopf Trinocular Head, 30° Inclined, 360° Rotatable | | | | | | | | | ● |
| With Eyepiece Adapter & 1.0x C-Mount | ● | | ● | | ● | | ● | | ● |
| Eyepiece | Wide Field WF10x/18mm, WF16x/11mm |
| Nosepiece | Quadruple Nosepiece |
| Objective | Achromatic Objective
4x/0.1, W.D.=25mm
10x/0.25, W.D.=11mm
40x/0.6(S), W.D.=3.8mm
100x/1.25(S,Oil), W.D.=0.1mm |
| Stage | Double Layer Mechanical Stage, 140x140mm, Mvoing Range 50x75mm |
| Focusing | Low Position Coaxial Coarse & Fine Focusing. Fine Focusing Scale
0.002mm,
With Tension Adjustment, With Up Limit |
| Condenser | N.A.1.25 Abbe Condenser, Iris Diaphargm, With Filter Holder |
| Filter | Blue, Yellow, Green |
| Light Source | Built-in Illumination LED, Brightness Adjustable |
| A11.1007 Biological Microscope Optional Accessories |
| Video Adapter | 0.45x C-Mount With Reduction Lens | A55.1002-45 |
| Objective | Achromatic 20x/0.4, W.D.=9mm | A52.1001-20 |
| Achromatic 60x/085(S) | A52.1001-60 |
| Light Source | Plan-Concave Mirror | A56.1001-1 |

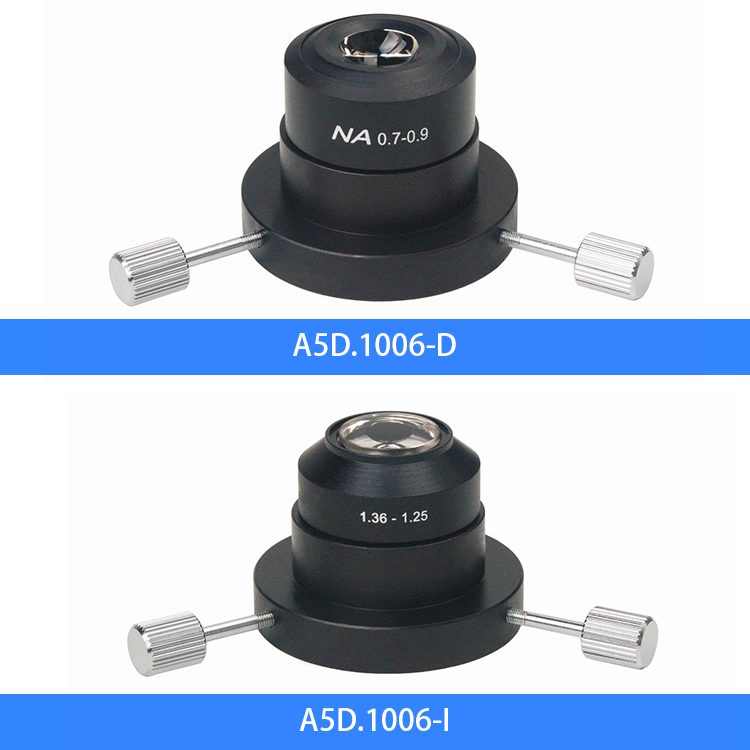

| Dark Field | Dark Field Condenser, N.A. 0.7~0.9, Dry | A5D.1006-D |
| Dark Field Condenser, N.A. 1.25~1.35, Oil Immersion | A5D.1006-I |
| Dark Field Objective Achromatic 100x, with Cone Diaphram, Used With
A5D.1006-I | A5D.1030-1 |
| Dark Field Objective Plan 100x, With Iris Diaphram, Used With
A5D.1006-I | A5D.1030-2 |
| Polarizing | Simple Polarizing Kit | A5P.1001 |
| Phase Contrast | Sliding Phase Contrast Set
--Sliding Phase Contrast Condenser
--Achromatic Phase Contrast Objective 10x,40x
--Centering Telescope
--Green Filter | A5C.1002-C3 |
| Fluorescent | EPI-Fluorescent Kit
--Power Supplier 220V/110V Interchangeable, Digital Display
--100WHBO Ultra Hi-Voltage Spherical Mercury Lamp
--Barrier To Resist Ultraviolet Light
--Fluorescence Free Oil
--Fluorescent Objective 10x,25x,40x,100x
--Excitation Filter B/G | A5F.1001 |
| --Excitation Filter U/V | A5F.1001-UV |
