| A13.0910 Upright
Metallurgical Microscope, BF/DF, DIC, Semi-APO, Polarizing | R | RT | Cata. No. |
Infinity
Optical System | BF/DF, Bright Field/Dark Field, Reflect Light | ● | | |
| BF/DF, Bright Field/Dark Field, Transmit & Reflect Light | | ● | |
| PL, Polarzing | ● | ● | |
| DIC, Different Interference Contrast | ○ | ○ | |
| Head | 30° Inclined Erect Image Infinity Gemel Trinocular Head,
Interpupillary Distance 50~76mm, Light Spiltting Ratio Switch
E100:P0/E0:P100, | ● | ● | A53.0913-T30E |
| 30° Inclined, Invert Image Infinity Gemel Trinocular Head,
Interpupillary Distance 50~76mm; Light Splitting Ratio Switch
R:T=100:0 or 20:80 or 0:100 | ○ | ○ | A53.0913-T30 |
| 5-35° Tiltable, Inverted Image, Infinity Gemel Trinocular Head,
Interpupillary Distance 50~76mm; Light Splitting Ratio 50:50 or
100:0 or 0:100 | ○ | ○ | A53.0913-T535 |
| CCD Adapter | 0.5x C-Mount, For 1/2"CCD, Focus Adjustable | ○ | ○ | A55.0930-05 |
| 0.35x C-Mount, For 1/2"CCD, Focus Adjustable | ○ | ○ | A55.0930-35 |
| 0.65x C-Mount, For 1/2"CCD, Focus Adjustable | ○ | ○ | A55.0930-65 |
| 1.0x C-Mount, For 1"CCD, Focus Adjustable | ○ | ○ | A55.0930-10 |
| Eyepiece | High Eyepoint Plan PL10x/25mm, Diopter Adjustable | ●● | ●● | A51.0904-1025T |
| High Eyepoint Plan PL10x/26.5mm, Diopter Adjustable | ○ | ○ | A51.0904-10265T |
| High Eyepoint Plan PL10x/25mm, Diopter Adjustable, With Reticle | ○ | ○ | A51.0905-1025T |
| High Eyepoint Plan PL10x/26.5mm, Diopter Adjustable, With Reticle | ○ | ○ | A51.0905-10265T |

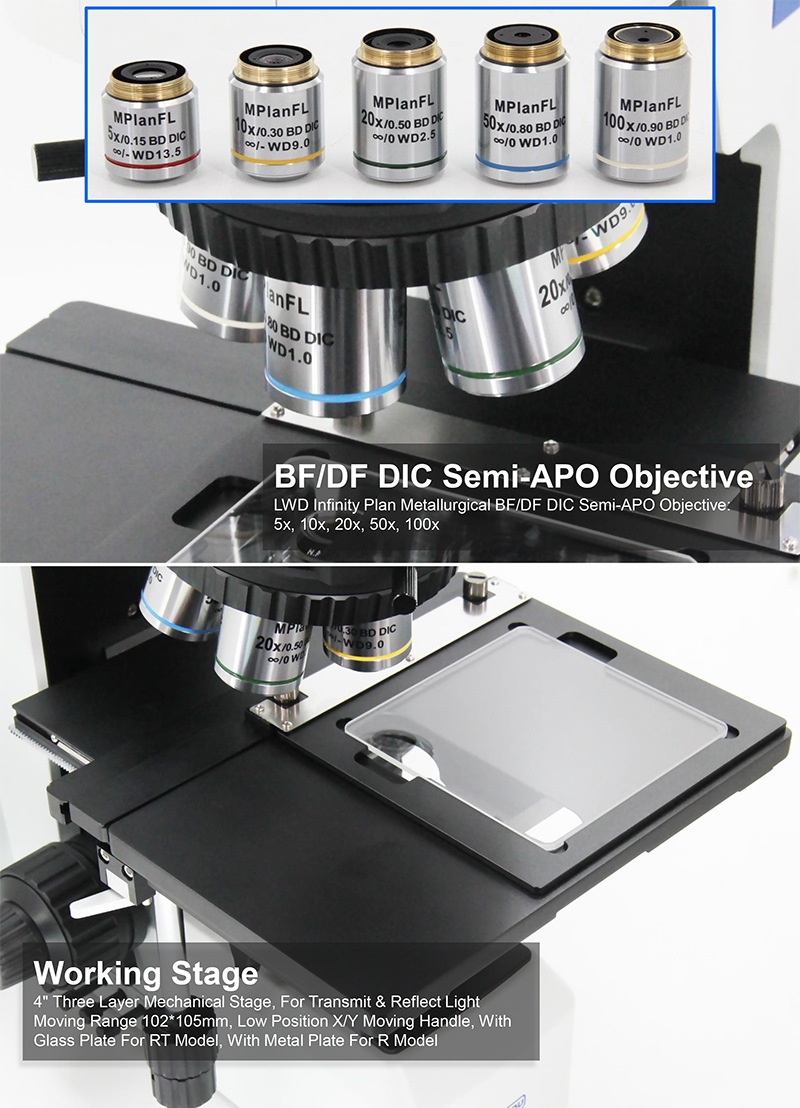

| Objective | Infinity Plan Semi-APO LWD Metallurgical BF/DF DIC Objective | | | |
| 5x/0.15, W.D.=13.5mm | ● | ● | A5M.0941-5 |
| 10x/0.30, W.D.=9mm | ● | ● | A5M.0941-10 |
| 20x/0.50, W.D.=2.5mm | ● | ● | A5M.0941-20 |
| 20x/0.40, W.D.=8.5mm | ○ | ○ | A5M.0941-20A |
| 50x/0.80, W.D.=1.0mm | ● | ● | A5M.0941-50 |
| 100x/0.90, W.D.=1.0mm | ● | ● | A5M.0941-100 |
| Infinity Plan Semi-APO LWD Metallurgical BF DIC Objective | | | |
| 5x/0.15, W.D..=19.5mm | ○ | ○ | A5M.0942-5 |
| 10x/0.30, W.D..=10.9mm | ○ | ○ | A5M.0942-10 |
| 20x/0.50, W.D.=3.20mm | ○ | ○ | A5M.0942-20 |
| 50x/0.80, W.D.=1.20mm | ○ | ○ | A5M.0942-50 |
| 100x/0.90, W.D.=1.0mm | ○ | ○ | A5M.0942-100 |
| Semi-APO Objective With Correcting Ring 50X/0.70, WD=2.3~2.9mm | ○ | ○ | A5M.0945-50 |
| Nosepiece | BF/DF 5 Holes, With Socket For DIC Slide & Polaring Analyzer Slide,
For Metallurgical | ○ | ○ | A54.0930-RM5BD |
| BF/DF 6 Holes, With Socket For DIC Slide & Polaring Analyzer Slide,
For Metallurgical | ● | ● | A54.0930-RM6BD |
| BF 6 Holes, With Socket For DIC Slide & Polaring Analyzer Slide,
For Metallurgical | ○ | ○ | A54.0930-RM6 |
| BF 7 Holes, With Socket For DIC Slide & Polaring Analyzer Slide,
For Metallurgical | ○ | ○ | A54.0930-RM7 |
| DIC | DIC Attachment, Apply For BD Objective | ○ | ○ | A5M.0952 |
| Working Stage | 4" Three Layer Mechanical Stage, For Transmit & Reflect Light
Moving Range 102*105mm, Low Position X/Y Moving Handle,
With Glass Plate For RT Model, With Metal Plate For R Model | ● | ● | A54.0950-M4 |
| Rotatable Working Stage 4", For Wafer 2", 3", 4" | ○ | ○ | A54.0950-W234 |
| Focusing | Low-Position Coaxial Coarse & Fine Adjustment, Coarse Adjustment
Distance: 25mm; Fine Precision: 0.001Mm. With Coarse Adjustment
Stop And Tightness Adjustment. | ● | ● | |
| Main Body | Reflected Body,
Digital Dimming System With Light Indicator, Brightness Set & Reset
Function | ● | | |
Reflected/Transmitted Body,
Digital Dimming System With Light Indicator, Brightness Set & Reset
Function, With Condenser Holder | | ● | |
Transmit
Light | 12V100W Halogen Lamp House, Pre-Centered | | ● | A56.0915-LH |
| 12V100W Halogen Bulb (Philps 7724) | | ● | A56.0923-12100 |
| Swing-out Type Achromatic Condenser, N.A.0.9/0.25 | | ● | A56.0934-R |
| Built-In Transmit Filters LBD/ND6/ND25 | | ● | |
Reflect
Light | BF/DF Reflect Illuminator, With Iris Field Diaphragm and Aperture
Diaphragm, Both Central Adjustable, With Filter Slot and Polarizing
Slot, With BF/DF Switch | ● | ● | A56.0915-RL |
| 12V100W Halogen Lamp House, Pre-Centered | ● | ● | A56.0915-LH |
| 12V100W Halogen Bulb (Philps 7724) | ● | ● | A56.0923-12100 |
| Interference Filter, For Reflect Light, Netural White | ● | ● | A5M.0953-LBD |
| Interference Filter, For Reflect Light, Blue, <480nm | ○ | ○ | A5M.0953-B |
| Interference Filter, For Reflect Light, Green, 520~570nm | ○ | ○ | A5M.0953-G |
| Interference Filter, For Reflect Light, Red, 630~750nm | ○ | ○ | A5M.0953-R |
| Polarizing For Reflect Light | Fixed Polarizer Flashboard | ● | ● | A5P.0924-RP |
| 360° Rotatable Analyzer Flashboard | ● | ● | A5P.0924-RA360 |
| Fixed Analyzer Flashboard | ○ | ○ | A5P.0924-RA |
| Power | Built-In 100-240V Wide Voltage Transformer, One Way Power Output | ● | | |
| Built-In 100-240V Wide Voltage Transformer, Double-Way Power
Output. | | ● | |
| Other | Allen Key M3 | ● | ● | |
| Allen Key M4 | ● | ● | |
| Specimen Presser | ○ | ○ | A5M.0920 |
| Upgrade Series Model |
| Bilogical | A13.0910 DIC Metallurgical Microscope, APO | | | A13.0910 |
| Fluorescent | | | | |
| Remark: '●' Means Standard Outfit, '○' Means Optional |
