Inverted Metallurgical Optical Microscope Trinocular Compound Optical Microscope

    Buy cheap Inverted Metallurgical Optical Microscope Trinocular Compound Optical Microscope from wholesalers

    Buy cheap Inverted Metallurgical Optical Microscope Trinocular Compound Optical Microscope from wholesalers
    • Buy cheap Inverted Metallurgical Optical Microscope Trinocular Compound Optical Microscope from wholesalers
    • Buy cheap Inverted Metallurgical Optical Microscope Trinocular Compound Optical Microscope from wholesalers
    • Buy cheap Inverted Metallurgical Optical Microscope Trinocular Compound Optical Microscope from wholesalers
    • Buy cheap Inverted Metallurgical Optical Microscope Trinocular Compound Optical Microscope from wholesalers
    • Buy cheap Inverted Metallurgical Optical Microscope Trinocular Compound Optical Microscope from wholesalers
    • Buy cheap Inverted Metallurgical Optical Microscope Trinocular Compound Optical Microscope from wholesalers
    • Buy cheap Inverted Metallurgical Optical Microscope Trinocular Compound Optical Microscope from wholesalers

    Inverted Metallurgical Optical Microscope Trinocular Compound Optical Microscope

    Ask Lasest Price
    Brand Name : CNOEC, OPTO-EDU
    Certification : CE, Rohs
    Model Number : A13.0909
    Price : FOB $1~1000, Depend on Order Quantity
    Delivery Time : 5~20 Days
    Payment Terms : T/T, West Union, Paypal
    Supply Ability : 5000 pcs/ Month
    • Product Details
    • Company Profile

    Inverted Metallurgical Optical Microscope Trinocular Compound Optical Microscope

    Inverted Metallurgical Optical Microscope , Compound Optical Microscope

    A13.0909 Metallurgical Microscope, newly developed in 2013.
    --Infinity Color Corrected Optical System With Newly Upgraded Koehler Illumination System, Presents Clear & Bright Micro-image Under Each Magnification.
    --Fire-new Ergonomic Design, Steady System Structure, Easy Operation, Suitable For Various Working Environments.
    --Newly Designed Integrative Y-Shape Body, All Metal Diecasted Under High Pressure. High stability, No Image Dithering Under High Magnification Observation, Ensures The Test Precision Of Multi-channel Fluorsecnce Diagnosis.

    --LWD Infinity Plan Achromatic Metallurgical Objectives 5x, 10x, 20x, 50x, 100x
    --Reflect & Transmit Light Source 5W LED Warm Color With Full Range Filters

    A13.0909 Metallurgical Microscope SpecificationRRT
    Optical SystemInfinity Color Corrected Optical System
    HeadCompensation Trinocular Head, 30° Inclined, 360° Rotatable, Interpupillary Distance 54-75mm, Splitting Ratio R:T=100:0/0:100, Diopter +/-5 Adjustable.
    EyepieceHigh Eye-point Wide Field Plan Eyepiece PL10x22mm
    ObjectiveLWD Infinity Plan Achromatic Metallurgical Objectives
    5x LMPL5x/0.15, WD10.8mm
    10x LMPL10x/0.3, WD12.2mm
    20x LMPL20x/0.45, WD12.2mm
    50x LMPL50x/0.55, WD7.9mm
    Nosepiece5 Holes Revolving Nosepiece, Backward
    FocusingCoaxial Focus System With Upper Limited And Tension Adjustment, Coarse Range 25mm, Fine Precision 0.002mm

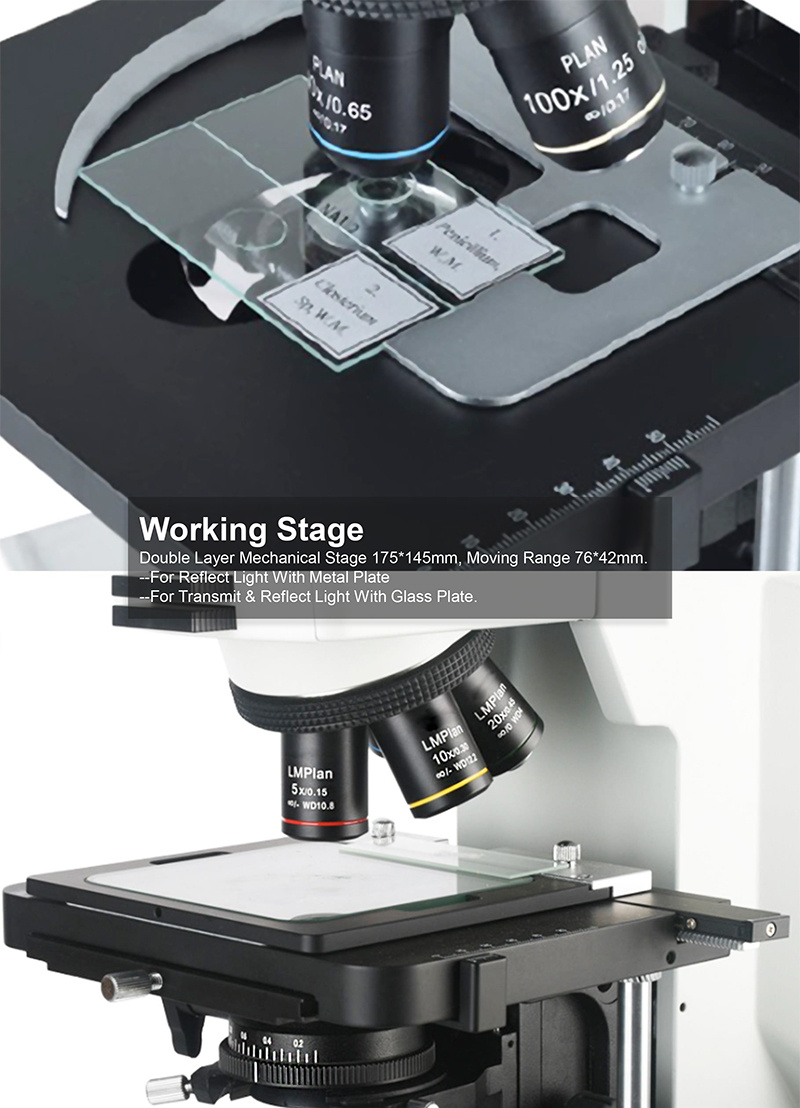

    Working StageFor Reflect Light
    Double Layer Mechanical Stage 175x145mm, Moving Range 76*42mm, X/Y Moving Coaxial Adjustment, With Metal Plate, Up/Down Range Accept 78mm High Sample
    For Transmit & Reflect Light
    Double Layer Mechanical Stage 175x145mm, Moving Range 76*42mm, X/Y Moving Coaxial Adjustment, With Glass Plate, Up/Down Range Accept 28mm High Sample
    Light SourceReflect Light
    Lamp House With Single 5W LED, Warm Color, Koehler Illuminator With Oblique Light Device, Center Adjustable Field And Aperture Diaphragm, Interference Filter Blue <480nm, Green 520~570nm, Red 630~750nm, White Balance
    Transmit Light

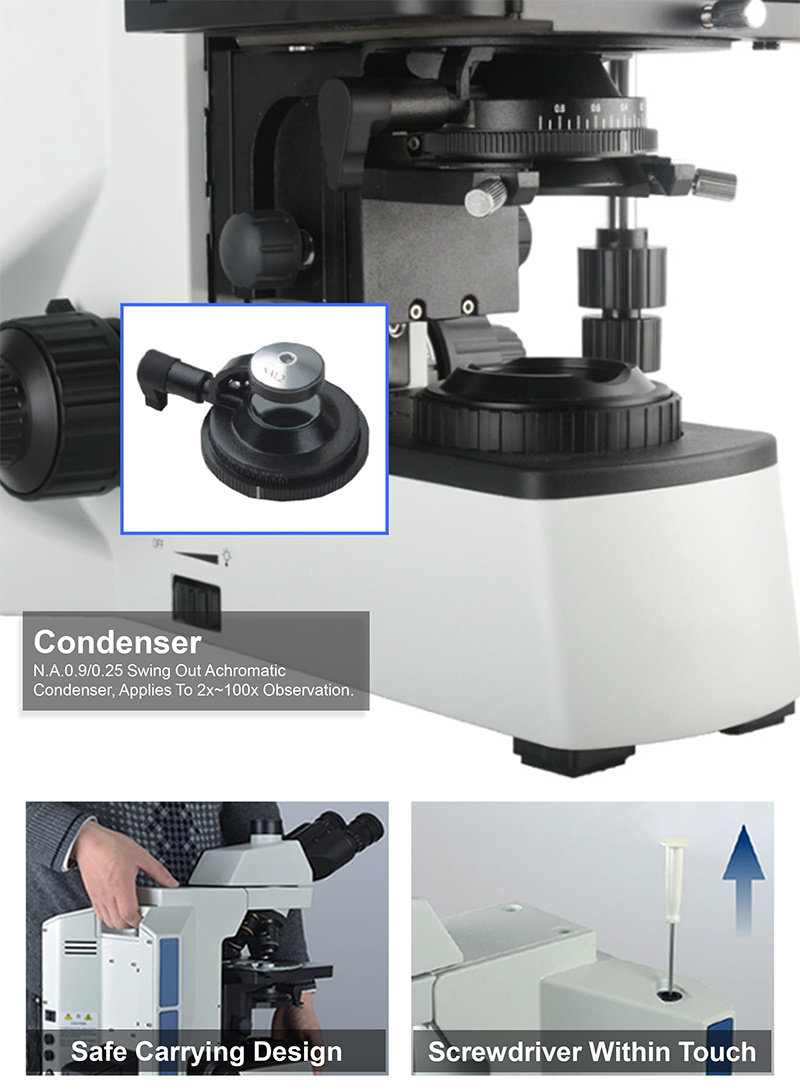

    Lamp House With Single 5W LED, Warm Color, Filter: Yellow, Neutral, IF550, LBD, Condenser N.A. 0.9/0.25 Swing-out Achromatic Condenser For Transmit Light, With Center Adjustable Aperture Iris Diaphragm
    PowerWide Range Voltage 100~240V AC 50/60Hz
    Optional Accessories
    EyepieceHigh Eye-point PL10x/22mm with Micrometer, Diopter AdjustableA51.0905-1022R
    High Eye-point PL15x/16mmA51.0903-1516
    ObjectiveLWD Infinity Plan Ac hromatic Metallurgical Objectives 100X LMPL100X/0.8, WD2.1mmA5M.0954-100
    CCD Adapter1x C-Mount, Focus AdjustableA55.0926-10
    0.50x, For 1/2” C-Mount, Focus AdjustableA55.0926-50
    0.67x, For 2/3” C-Mount, Focus AdjustableA55.0926-67
