Binocular Head 1000x Forensic Comparison Microscope A18.1001 Wide Field Research

    Buy cheap Binocular Head 1000x Forensic Comparison Microscope A18.1001 Wide Field Research from wholesalers

    Buy cheap Binocular Head 1000x Forensic Comparison Microscope A18.1001 Wide Field Research from wholesalers
    • Buy cheap Binocular Head 1000x Forensic Comparison Microscope A18.1001 Wide Field Research from wholesalers
    • Buy cheap Binocular Head 1000x Forensic Comparison Microscope A18.1001 Wide Field Research from wholesalers

    Binocular Head 1000x Forensic Comparison Microscope A18.1001 Wide Field Research

    Ask Lasest Price
    Brand Name : CNOEC, OPTO-EDU
    Certification : CE
    Model Number : A18.1001
    Price : FOB $1~1000, Depend on Order Quantity
    Delivery Time : 5~20 Days
    Payment Terms : T/T, West Union, Paypal
    Supply Ability : 5000 pcs/ Month
    • Product Details
    • Company Profile

    Binocular Head 1000x Forensic Comparison Microscope A18.1001 Wide Field Research

    Binocular Head 1000x Forensic Comparison Microscope A18.1001 Wide Field Research

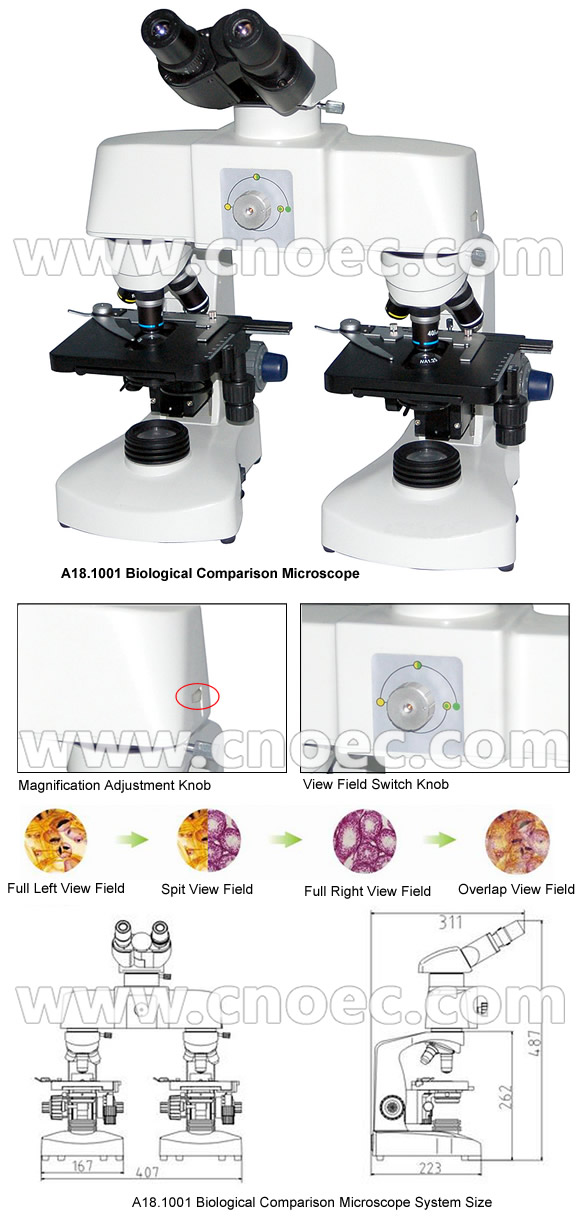

    A18.1001 Biological Comparison Microscope, is used to analyze side-by-side specimens. It consists of two microscope connected to an optical bridge, which gives choice of 4 kinds observation view field: Full Left, Full Right, Split, and Overlapping Image. It is designed for identifying object's structure, comparing similarities and differences between specimens, such as pathological slides, biological slides and so on. It is an ideal instrument for teaching, biological and medical field.

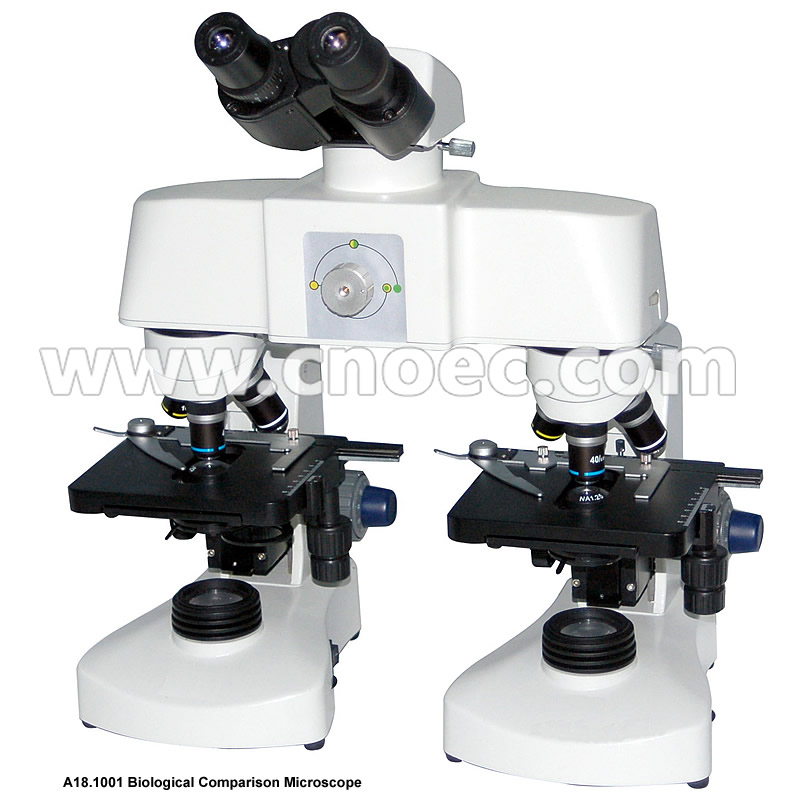

    A18.1001 Biological Comparison Microscope

    Head

    Seidentopf Binocular Head, 30°Inclined, Interpupilary Distance 48-75mm

    Bridge

    4 Kinds of View Field For Comparison,
    --Full Right Image,
    -- Full Left Image,
    -- Split Image,
    -- Overlapping Image,
    Right Optical System Magnification ±3% Adjustable
    Bridge Magnfication 1x

    Eyepiece

    WF10X/18mm

    Objective

    Achromatic 4x, 10x, 40x(S), 100x(S,Oil)

    Nosepiece

    Backward Quadruple Nosepiece

    Stage

    Double Layer Mechanical Stage 132mm x 142mm, Travel Range 75x40mm

    Condenser

    Abbe N.A.=1.25 with Iris Diaphragm & Color Filter

    Focusing

    Coaxial Coarse & Fine Focusing Knobs, Range 24mm, Fine Division 0.004mm

    Illumination

    LED 3W, Brightness Adjustable
