    Trinocular Head Metallurgical Laboratory Microscopes 40X - 400X A13.1022

    Ask Lasest Price
    Brand Name : CNOEC, OPTO-EDU
    Certification : CE
    Model Number : A13.1022
    Price : FOB $1~1000, Depend on Order Quantity
    Delivery Time : 5~20 Days
    Payment Terms : T/T, West Union, Paypal
    Supply Ability : 5000 pcs/ Month
    • Product Details
    • Company Profile

    Trinocular Head Metallurgical Laboratory Microscopes 40X - 400X A13.1022

    Trinocular Head Metallurgical Laboratory Microscopes 40X - 400X A13.1022

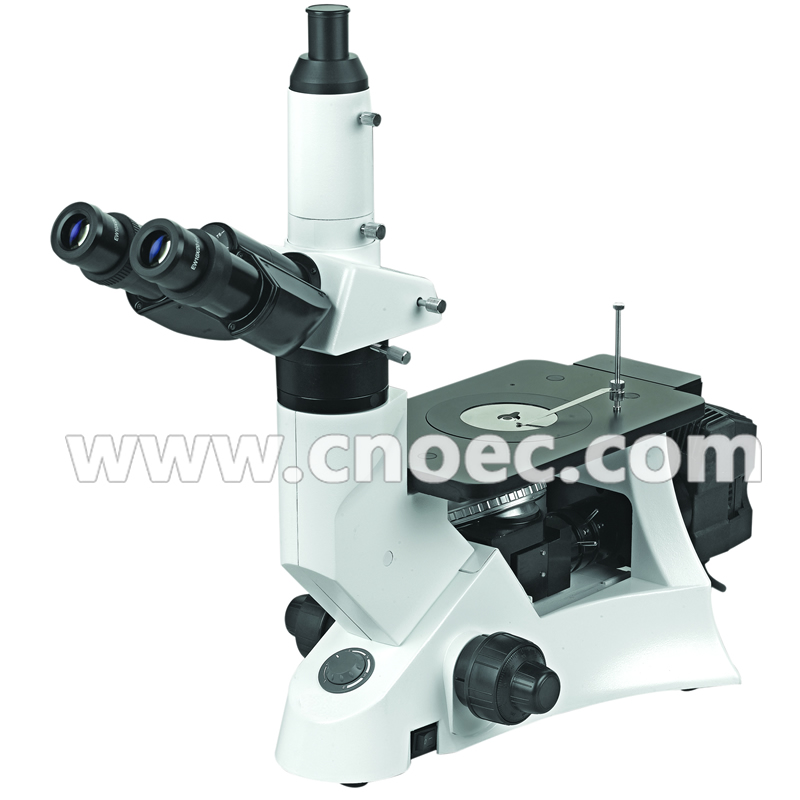

    A13.1022 Inverted Metallurgical Microscope , With stable stand structure, advanced stage design and comfortable operation, it is widely used in institue and laboratory to observe, identify the structure of variouse metal, alloy and other materials.
    --Infinity Optical System Supply High Quality Optical Image
    --Eyepiece EW10x/20mm, High Eyepoint
    --Infinity Plan Metallurgical Coverless Achromatic Objective
    --External Kohler Illumination, Halogen Lamp 6V30W

    A13.1022 Inverted Metallurgical Microscope

    Optical System

    Infinity Optical System

    Head

    Seidentopf Trinocular Head, 30° Inclined, Interpupillary 48~75mm, Diopter Adjustable

    Eyepiece

    Extra Wide Field Eyepiece EW10x/20mm, High Eyepoint

    Nosepiece

    Quintuple Nosepiece

    Objective

    Infinity Plan Metallurgical Coverless Achromatic Objective

    4x/0.1/∞/-, W.D.17.3mm

    10x/0.25/∞/-,W.D.10.2mm

    20x/0.4/∞/-,W.D.5.1mm

    40x/0.65/∞/-, W.D.0.52mm

    Focusing

    Coaxial Coarse & Fine Adjustment, Coarse Stroke 37.7mm Per Rotation, Fine Stroke 0.2mm Per Rotation

    Working Stage

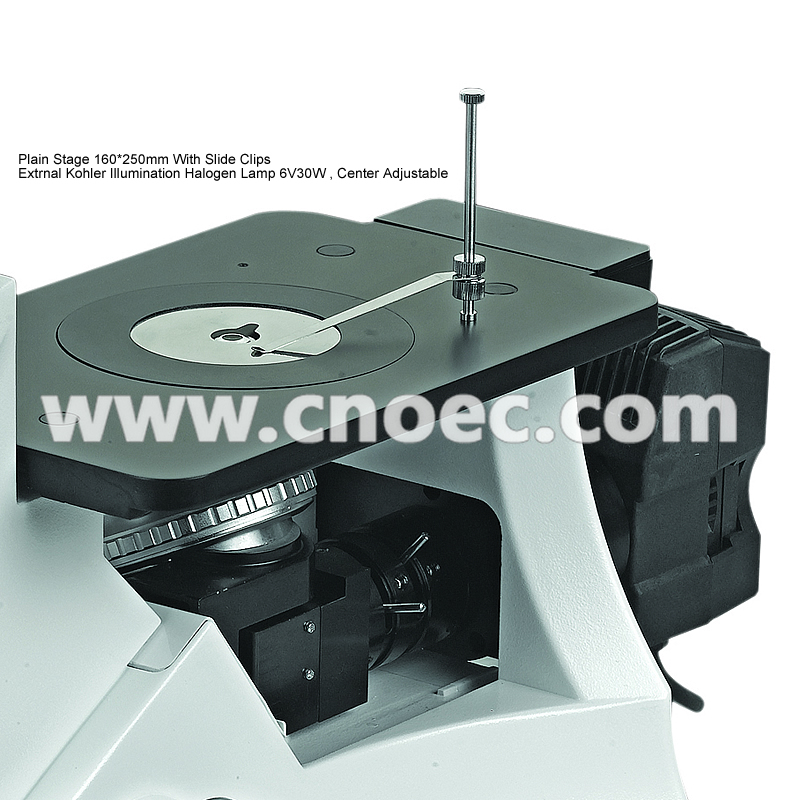

    Plain Stage 160*250mm With Slide Clips

    Polarizing

    Polarizing Attachment

    Filter

    Green, Blue, Yellow, Ground Glass, Dia.45mm

    Illumination

    External Kohler Illumination, Halogen Lamp 6V30W, Brightness Adjustable

    A13.1022 Inverted Metallurgical Microscope Optional Accessories

    Objective

    Infinity Plan Metallurgical Coverless Achromatic Objective

    5x/0.12/∞/-, W.D.15.4mm

    A5M.1035-5

    50x/0.75/∞/-, W.D.0.32mm

    A5M.1035-50

    80x/0.9/∞/-, W.D.0.20mm

    A5M.1035-80

    100x/0.9/∞/0, W.D.0.7mm

    A5M.1035-100

    Wokring Stage

    Attachable Mechanical Stage, X-Y Coaxial Control, Moving Range 120*78mm

    A54.1006-XY

    Auxiliary Stage 70*180mm

    A54.1006-A

    Adapter

    Photo Adapter

    A55.1001

    C-Mount 1.0x

    A55.1002-10

    C-Mount 0.5x

    A55.1002-05
