Brand Name : | CNOEC, OPTO-EDU |
Certification : | CE, Rohs |
Model Number : | A13.0216 |
Price : | FOB $1~1000, Depend on Order Quantity |
Delivery Time : | 5~20 Days |
Payment Terms : | T/T, West Union, Paypal |
Supply Ability : | 5000 pcs/ Month |

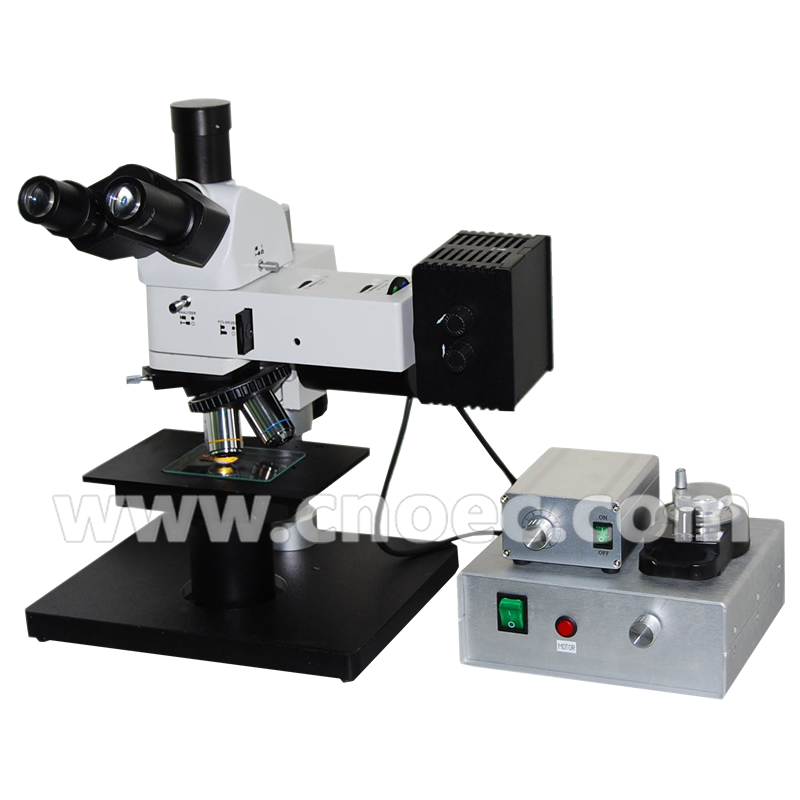

Specification | A13.0216 Metallurigical Microscope | -BD | -DIC | |
Head | Trinocular head, inclination of 22.5 °,diopter adjustment 5, interpupillary 53mm-75mm | |||
Eyepiece | Wide field WF10X(field number:Φ22mm) | |||
Infinity Plan Achromatic Objective | PL L5X/0.12 (Work distance):26.1 mm (Bright field) | ● | ||
PL L10X/0.25 (Work distance):20.2 mm ( Bright field) | ● | |||
PL L20X/0.40 (Work distance):8.8. mm (Bright field) | ● | |||
PL L50X/0.70 (Work distance):3.68 mm (Bright field) | ● | |||
PL L5X/0.12 (Work distance):9.7 mm (Bright /Dark field) | ● | |||
PL L10X/0.25 (Work distance):9.3 mm (Bright /Dark field) | ● | |||
PL L20X/0.40 (Work distance):7.2 mm (Bright /Dark field) | ● | |||
PL L50X/0.70 (Work distance):2.5 mm (Bright /Ddark field) | ● | |||
PL L5X/0.10 (Work distance):18.2 mm (DIC) | ● | |||
PL L10X/0.25 (Work distance):20.2 mm (DIC) | ● | |||
PL L20X/0.35 (Work distance):6.0mm (DIC) | ● | |||
PL L50X/0.70 (Work distance):2.5 mm (DIC) | ● | |||
Illumination | 12V50W halogen and brightness adjustable | |||
For LMPlan 5x/10x/20x objective DIC flashboard | ● | |||
Focus System | Coaxial coarse/fine focus system, with coarse focus knob tension adjustable device, minimum division of fine focusing: 2μm. Max. hight of sample: 100mm. Range: 35mm | |||
Nosepiece | Quintuple nosepiece | |||
Filter | Gross filter, yellow, green, blue filters | |||
Stage | Base overall size:300mmX250mm | |||
Mechanical stage overall size:160mmX140mm, moving range:30mmx35mm |
![]() |
