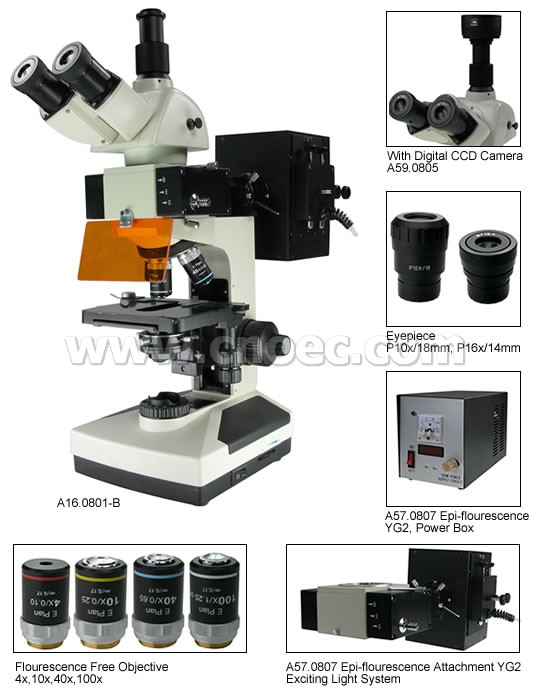

40X - 1600X Trinocular Fluorescence Microscope Compound Microscopes A16.0801

    Buy cheap 40X - 1600X Trinocular Fluorescence Microscope Compound Microscopes A16.0801 from wholesalers

    Buy cheap 40X - 1600X Trinocular Fluorescence Microscope Compound Microscopes A16.0801 from wholesalers
    • Buy cheap 40X - 1600X Trinocular Fluorescence Microscope Compound Microscopes A16.0801 from wholesalers

    40X - 1600X Trinocular Fluorescence Microscope Compound Microscopes A16.0801

    Ask Lasest Price
    Brand Name : CNOEC, OPTO-EDU
    Certification : CE, Rohs
    Model Number : A16.0801
    Price : Negotiation
    Delivery Time : 5~20 Days
    Payment Terms : T/T, West Union, Paypal
    Supply Ability : 5000 pcs/ Month
    • Product Details
    • Company Profile

    40X - 1600X Trinocular Fluorescence Microscope Compound Microscopes A16.0801

    40X - 1600X Trinocular Fluorescence Microscope Compound Microscopes A16.0801


    --Infinity optical system
    --High eyepoint wide field eyepiece, diopter adjustable
    --Super large working stage 160x142mm to hold 2 slides, for easier comparison
    --100W HBO ultra hi-voltage spherical mercury lamp give enough illumination

    A16.0801 Specification

    A

    B

    Total Magnification

    40x-1600x

    Eyepiece

    WF10x/18mm, diopter adjustable, high eyepoint

    WF16x/14mm, diopter adjustable, high eyepoint

    Head

    Compensation brinocular head, 30° inclined, 360° rotatable, interpupillary distance 55-75mm, infinity optical system


    Compensation trinocular head, 30° inclined, 360° rotatable, interpupillary distance 55-75mm, infinity optical system


    Nosepiece

    4 Holes revolving nosepiece, inward

    Objective

    Fluorescence free objective 4x,10x, 40x (Spring),100x (Spring, Oil )

    Focusing

    Coaxial coarse and fine focusing knob, with tension adjustable ring and rack stop. coarse focusing range 22mm, fine focusing graduation is 0.002mm

    Stage

    Large double layer mechanical stage, size 160x142mm, moving range 76x52mm, can hold 2 slides.

    Condenser

    Abbe condenser N.A.=1.25, with iris diaphragm, height adjustable

    Light Source

    Kohler illumination, iris adjustable, halogen lamp 12V20W, brightness adjustable

    Power

    90-240V wide voltage

    Adapter

    Simple CCD Adapter


    Fluorescence Kit

    Exciting System

    B(Blue) exciting light filter system EX490 DM510 BA515

    G(Green) exciting light filter system EX545 DM580 BA590

    O(Ordinary) transmit light system

    Light Source

    100W HBO ultra hi-voltage spherical mercury lamp

    Power Box

    AC220V/60Hz, with fuse 250V/8A

    Protection Barrier

    Barrier to resist the ultraviolet light

    Oil

    Fluorescent free objectives



    Optional Accessories

    Item No.

    Fluorescence Attachment

    U filter system

    A57.0805-01

    V filter system

    A57.0805-02

    Assistant exciting light filter system EX450-490

    A57.0806

    Adapter

    1/3" CCD adapter

    A55.0803

    1/2" CCD adapter

    A55.0802

    Digital camera adapter

    A55.0809

    Camera

    CCD camera (0.47M pixel)

    A59.0803

    Digital CCD camera (2M, 3.1M, 5M pixel)

    A59.0805
