    Laboratory Research Monocular Polarizing Light Microscope CE A15.1016


    Laboratory Research Monocular Polarizing Light Microscope CE A15.1016


    A15.1016 Polarizing Microscope, With features of easy operation, complete functions and economy, it is and ideal instrument in geology, petroleum, coal, chemicals and physic fields. It is also widely used in academic demonstration and research.

    --Monocular,Binocular, Trinocular Head, 45° Inclined, 360° Rotatable
    --Strain Free Achromatic Objective
    --Round Stage Dia.135mm, 360° Rotatable
    --Rotatable Analyzer With Optical Compensator
    --Swing-Out Polarizer 0~90° Rotatable, Located On Top Of Collector

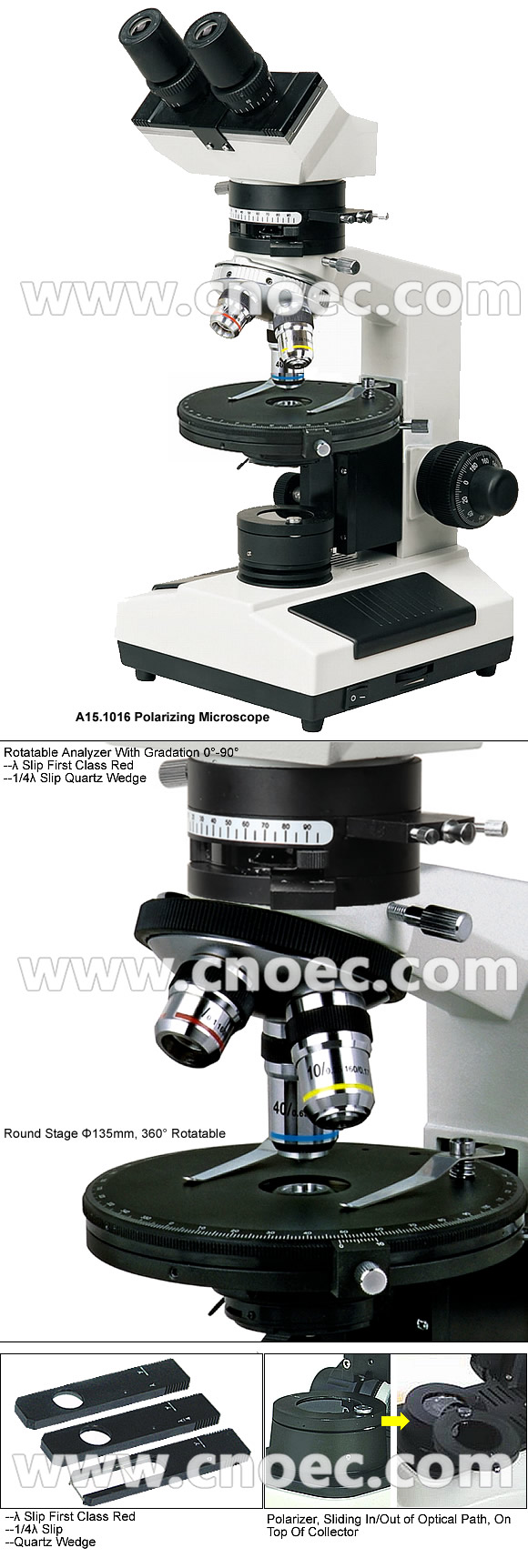

    A15.1016 Polarizing Microscope

    M

    B

    T

    Head

    Monocular Head, 45° Inclined, 360° Rotatable

    o



    Sliding Binocular Head, 45° Inclined, 360° Rotatable


    o


    Sliding Trinocular Head, 45° Inclined, 360° Rotatable



    o

    Eyepiece

    WF10x/18mm


    o

    o

    WF10x/18mm, With Scale Of Crosshair

    Objective

    Strain Free Achromatic Objective 4x,10x,40x

    Nosepiece

    Outward Quadruple Nosepiece

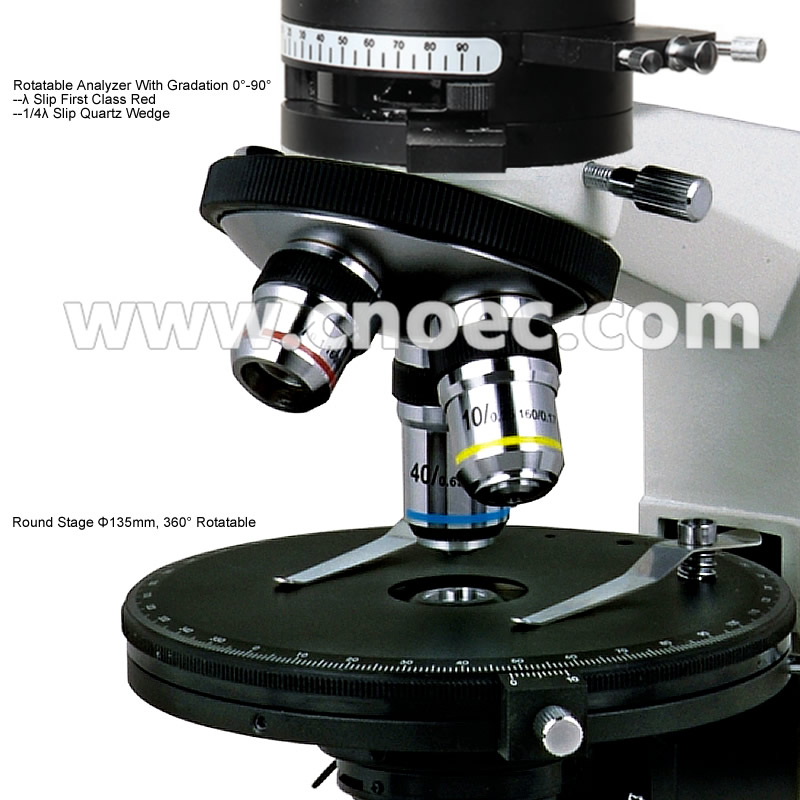

    Analyzer

    Rotatable Analyzer With Graduation 0~90°
    Bertrand Lens, Sliding In/Out Of Optical Path
    Optical Compensator :
    -- λ Slip, First Class Red
    --1/4λ Slip
    --Quartz Wedge

    Working Stage

    Round Stage Dia.135mm, 360° Rotatable, Graduation 1° Increment, Minimum Resolution 6', Center Adjustable

    Focusing

    Coaxial Coarse & Fine Adjustment, Focusing Range 28mm, Fine Focusing Division 0.002mm

    Condenser

    Abbe Condenser N.A.1.25, WIth Iris Diaphragm & Filter

    Polarizer

    Swing-Out Polarizer 0~90° Rotatable, Located On Top Of Collector

    Illumination

    Halogen Lamp 6V20W, Brightness Adjustable
