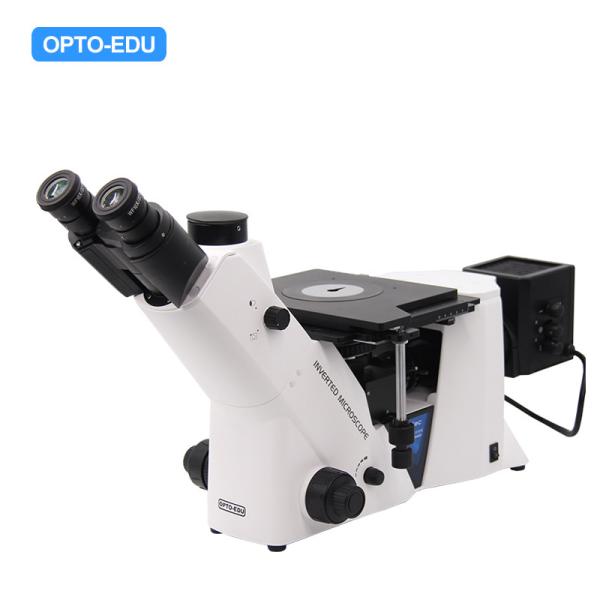

| Items | A13.2606 Invered Metallurgical Microscope | A13.2606 | A13.2606-BD | Cata. No. |
| Head | Seidentopf Trinocular Head Inclined 30°, Interpupilary Distance
48~76mm, Light Split Switch E100:P0 / E20:P80 | ● | ● | A53.2643 |
| Eyepiece | WF10x/22mm, Dia.30mm, High Eyepoint, Diopter Adjustable | ● | ● | A51.2621-1022 |
WF10x/22mm, Dia.30mm, High Eyepoint, Diopter Adjustable,
With Micrometer X-0.1mm*180 Div / Y-Single Line | ● | ● | A51.2622-1022 |
| WF15X/16mm, Dia.30mm, High Eyepoint, Diopter Adjustable | ○ | ○ | A51.2621-1516 |
| WF20X/12mm, Dia.30mm, High Eyepoint, Diopter Adjustable | ○ | ○ | A51.2621-2012 |
| Nosepiece | Quintuple | ● | - | A54.2610-N925 |
| Quadruple(Specially For Bright&Dark Field objectives) | - | ● | A54.2610-N924 |

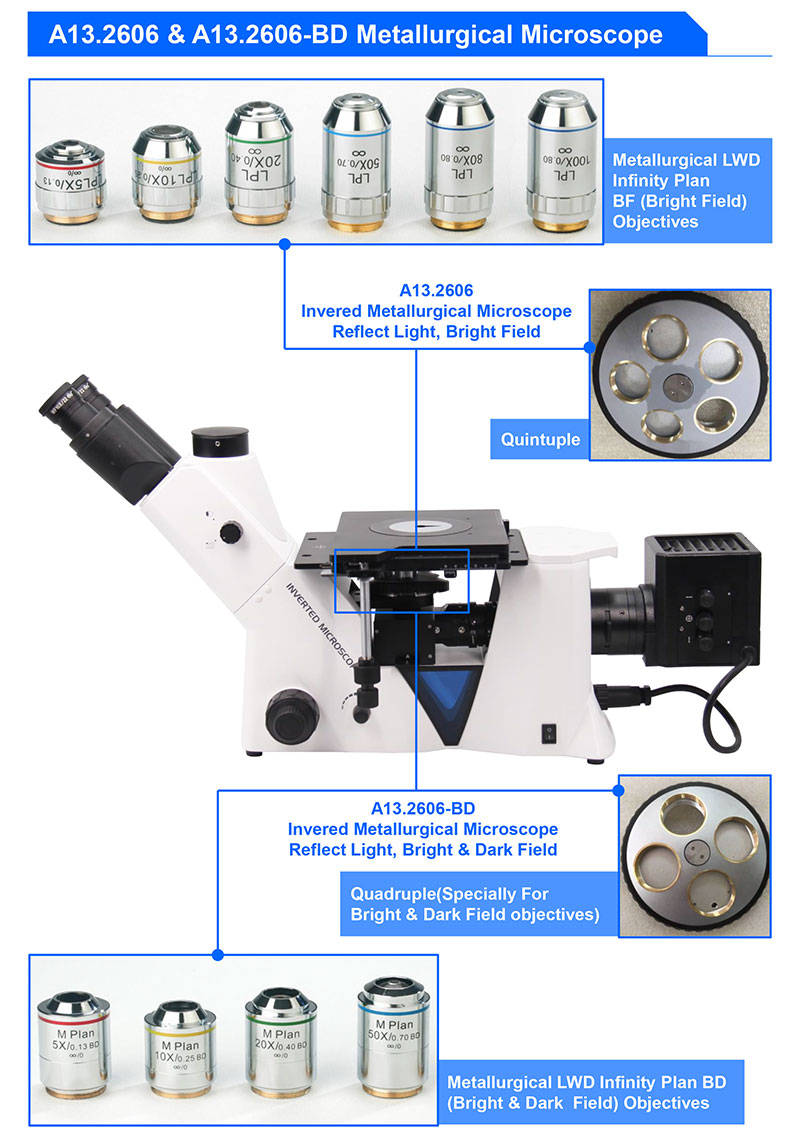

Metallurgical LWD Infinity Plan BF
(Bright Field) Objectives | LPL 5x/0.13, W.D.=16.04mm | ● | ○ | A5M.2633-5 |
| LPL 10x/0.25, W.D.=18.48mm | ● | ○ | A5M.263310 |
| LPL 20x/0.40, W.D.=8.35mm | ● | ○ | A5M.2633-20 |
| LPL 50x/0.70, W.D.=1.95mm | ● | ○ | A5M.2633-50 |
| LPL 80x/0.80, W.D.=0.85mm | ○ | ○ | A5M.2633-80 |
| LPL 100x/0.90(Dry), W.D.=1.10mm | ○ | ○ | A5M.2633-100 |
Metallurgical LWD Infinity Plan BD
(Bright & Dark Field) Objectives | LPL 5x/0.13BD, W.D.=16.04mm | - | ● | A5M.2634-5 |
| LPL10x/0.25BD, W.D.=18.48mm | - | ● | A5M.2634-10 |
| LPL 20x/0.40BD, W.D.=8.35mm | - | ● | A5M.2634-20 |
| LPL 50x/0.70BD, W.D.=1.95mm | - | ● | A5M.2634-50 |
| Working Stage | Stage Size 210×180mm, Moving Range 50×50mm, Scale 0.1mm, Round
Plate Size Dia.110mm | ● | ● | A54.2601-S11T |
| Round Plate With Oval Hole | ○ | ○ | A54.2601-MD400 |
| Focusing | Coaxial Coarse & Fine Focusing, Coarse Focusing Travel Range: 10mm,
Fine Focusing Div. 0.002mm, Fine Stroke Per Rotation 0.2mm | ● | ● | |
| Polarizing | Analyzer + Polarizer Set | ● | ● | A5P.2602 |
| Illumination | Koehler Illumination Halogen 12V/50W, Input Voltage 100V~240V | ● | ● | A56.2613-12V50W |
| Koehler Illumination 5W LED, Input Voltage 100V~240V | ○ | ○ | A56.2651-5W |
| Power | ECO, Auto Power Off System.
Power Off Automatically Upon User Leaving 10 Minutes,
Power On Automatically Upon User Approaching Detected,
This Function Can Be Shut Down Manually | ○ | ○ | A56.2660 |
| Filter | Blue, Dia.34mm | ● | ● | A56.2616-34B |
| Green, Dia.34mm | ○ | ○ | A56.2616-34G |
| Amber, Dia.34mm | ○ | ○ | A56.2616-34A |
| Grey, Dia.34mm | ○ | ○ | A56.2616-34N |
| Adapter | SLR Digital Camera Adapter For Canon, 100% Light For Camera Portt | ○ | ○ | A55.2622-BC |
| SLR Digital Camera Adapter For Nikon, 100% Light For Camera Port | ○ | ○ | A55.2622-BN |
| C-Mount 0.5x, Focus Adjustable | ○ | ○ | A55.2601-05 |
| C-Mount 0.75x, Focus Adjustable | ○ | ○ | A55.2601-75 |
| C-Mount 1.0x, Focus Adjustable | ○ | ○ | A55.2601-10 |
| Digital Eyepiece Camera Adapter, Dia. 23.2mm/25mm | ○ | ○ | A55.2610 |

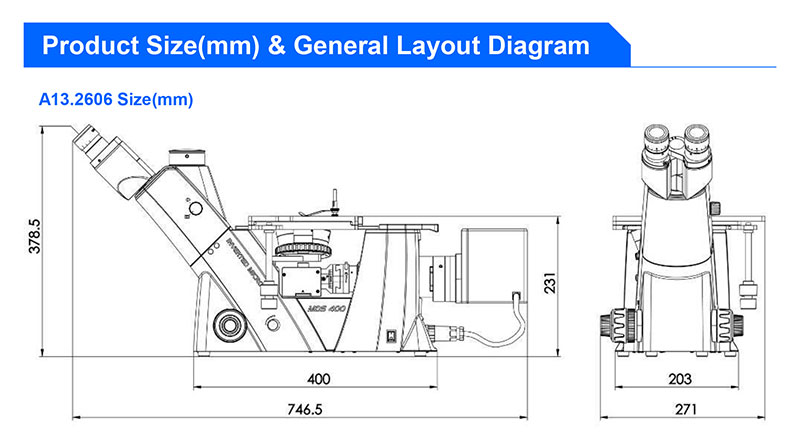

| Package | Packing Size: 660mmx590mmx325mm |
| Weight | Gross Weight: 17 kgs, Net Weight: 12.5 kgs |
| Note: "●"In Table Is Standard outfits, "○" Is Optional Accessories. |
