    OPTO-EDU A15.2601-TT Polarizing Microscope, Transmit

    Ask Lasest Price
    Brand Name : CNOEC, OPTO-EDU
    Certification : CE, Rohs
    Model Number : A15.2601-TT
    Price : FOB $1~1000, Depend on Order Quantity
    Delivery Time : 5~20 Days
    Payment Terms : T/T, West Union, Paypal
    Supply Ability : 5000 pcs/ Month
    • Product Details
    • Company Profile

    OPTO-EDU A15.2601-TT Polarizing Microscope, Transmit

    Polarizing Microscope, Transmit Light, Trinocular

    • Transmit 5W LED Illumination+ Swing Out Condenser N.A. 0.9/0.13 Center Adjustable
    • Head & Eyepiece With Joint Move Design To Keep Right Side Eyepiece's Cross Direction
    • Professional Polarizing Non-Stress LWD Infinity Plan Objective (Transmitting)
    • Professional Polarizing Lens, Analyzer With Bertrand Lens, λ, λ/4 Slip, Quartz Wedge
    • Powered By Safety Low Voltage Charger, Input Wide Voltage 100V-240V, Output 5V1A, Support Power Bank Supply For Outdoor Use
    • Items A15.2601 Series Polarzing Microscope A15.2601-T
      Transmit
      A15.2601-R
      Reflect
      A15.2601-RT
      Trans&Reflect
      Cata. No.
      TB TT RB RT RTB RTT
      Head Professional Polarizing Seidentopf Binocular Head, Inclined 30°, Rotatable 360°, Interpupilary Distance 48-76mm, Eyepiece Tube Dia.30mm,
      Joint Move Design: Speically For Polarzing Microscope, To Keep Right Side Eyepiece's Cross In View Field Keep Vertical Direction Even When Eyepiece Tube Turned
            A53.2625-B
      Professional Polarizing Seidentopf Trinocular Head, Inclined 30°, Rotatable 360°, Interpupilary Distance 48-76mm,
      Light Split Switch E100:P0/E20:P80, Eyepiece Tube Dia.30mm
      Joint Move Design: Speically For Polarzing Microscope, To Keep Right Side Eyepiece's Cross In View Field Keep Vertical Direction Even When Eyepiece Tube Turned
            A53.2625-T
      Eyepiece WF10x/22mm, Dia.30mm, High Eyepoint, Diopter Adjustable         A51.2621-1022
      WF10x/22mm, Dia.30mm, With Micrometer X-0.1mm*180 Div / Y-Single Line, Diopter Adjustable, With Position Pin For Joint Move         A51.2622-1022P

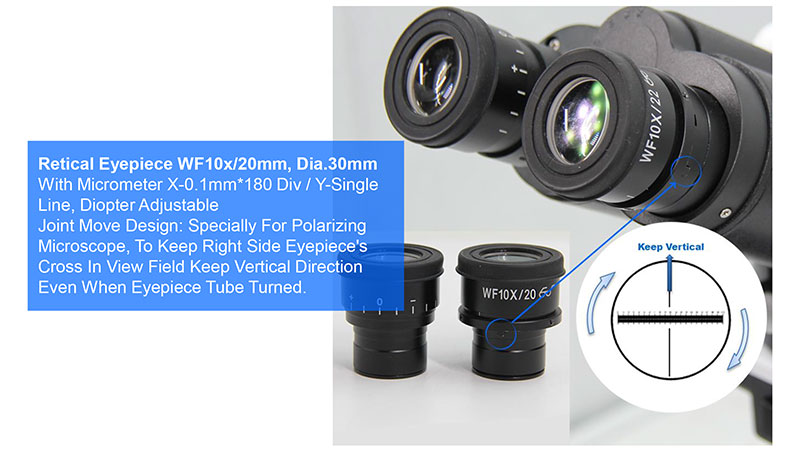

      WF10x/20mm, Dia.30mm, High Eyepoint, Diopter Adjustable     A51.2621-1020
      WF10x/20mm, Dia.30mm, With Micrometer X-0.1mm*180 Div / Y-Single Line, Diopter Adjustable, With Position Pin For Joint Move     A51.2622-1020P
      Nosepiece Quintuple, Center Adjustable A54.2610-N02
      Non-Stress
      Infinity Plan Objective
      (Transmitting)
      PLAN 4x/0.10, W.D.=12.1mm     A5P.2630-4
      PLAN 10x/0.25, W.D.=4.64mm     A5P.2630-10
      PLAN 20x/0.40(S), W.D.=2.41mm     A5P.2630-20
      PLAN 40x/0.66(S), W.D.=0.65mm     A5P.2630-40
      PLAN 60x/0.8(S), W.D.=0.33mm             A5P.2630-60
      PLAN 100x/1.25(S,Oil), W.D.=0.12mm             A5P.2630-100
      Non-Stress
      LWD Infinity
      Plan Objective
      (Reflecting)
      LPL5x/0.13, W.D.=16.04mm     A5M.2633-5
      LPL10x/0.25 W.D.=18.48mm     A5M.2633-10
      LPL20x/0.40 W.D.=8.35mm     A5M.2633-20
      LPL50x/0.70(S) W.D.=1.95mm     A5M.2633-50
      LPL100x/0.90(S,Dry) W.D.=1.10mm     A5M.2633-100
      Working Stage Round Stage Diameter Φ174mm, For Transmit Light,
      Rotatable 360°, Division 1', Vernier Division 6', Can Be Locked
      A54.2602-S06
      Round Stage Diameter Φ148mm, For Reflect Light,
      Rotatable 360°, Division 1', Vernier Division 6', Can Be Locked
              A54.2602-S06a
      Attachable Mechanical Stage For Polaring Microscope, Moving Range 40x40mm A5P.2616
      Attachable Mechanical Stage For Polaring Microscope, Moving Range 30x45mm, Lecia Type, Avoid Hitting Objective Lens A5P.2616-LK
      Condenser Swing Out Condnser, N.A.0.9/0.13, With Polarizer Lens In Bottom, With Scale, Can Be Locked     A56.2614-C10
      Polarizing Unit Analyzer Media Unit, Between Head And Body,
      Analyzer 0~360° Adjustable, Can Be Locked,
      With Betrand Lens Built-in Focus Adjustable,
      A5P.2621-BK
      Compensator Slide, With λ Slip (First Class Red) A5P.2614-16a
      Compensator Slide, With λ/4 Slip A5P.2614-15a
      Quartz Wedge Slide (I-IV Class) A5P.2615-17
      Quartz Wedge Slide (0-IV Class) Long Type A5P.2615-17a
      Polarizer Lens, Bulit-in Bottom Part Of Condenser A5P.2610-BK
      Focusing Coaxial Coarse & Fine Focusing, Coarse Focusing Travel Range: 22mm, Fine Focusing Div. 0.002mm
      Illumination Transmit Light 5W LED
      Koehler Illumination, Powered By Safety Low Voltage Charger, Input Wide Voltage 100V-240V, Output 5V1A, Support Power Bank Supply For Outdoor Use
          A56.2612-5W
      Transmit Light 6V30W Halogen
      Koehler Illumination, Wide Voltage 100V~240V
          A56.2613-30W
      Reflect Light 5W LED
      Koehler Illumination, Powered By Safety Low Voltage Charger, Input Wide Voltage 100V-240V, Output 5V1A, Support Power Bank Supply For Outdoor Use
          A56.2612-5W
      Reflect Light 12V50W Halogen
      Koehler Illumination, Wide Voltage 100V~240V
          A56.2613-50W
      Field Diaphragm For Kohler Illumnation A56.2615-BK
      Power ECO, Auto Power Off System.
      Power Off Automatically Upon User Leaving 10 Minutes,
      Power On Automatically Upon User Approaching Detected,
      This Function Can Be Shut Down Manually
          A56.2660
      Filter Dia.45mm, Blue A56.2616-45B
      Dia.45mm, Green A56.2616-45G
      Dia.45mm, Yellow A56.2616-45A
      Adapter C-Mount 0.5x, Focus Adjustable       A55.2601-05
      C-Mount 0.75x, Focus Adjustable       A55.2601-75
      C-Mount 1.0x, Focus Adjustable       A55.2601-10
      Digital Eyepiece Camera Adapter, Dia. 23.2mm/25mm       A55.2610
      Package & Weight Carton Size 520×470×285mm, 1 Unit/Ctn, Gross Weight: 12.5 kgs, Net Weight: 10.0 kgs A15.2601-TB,TT
      Carton Size 520×470×430mm, 1 Unit/Ctn, Gross Weight: 16.0 kgs, Net Weight: 12.5 kgs A15.2601-RB,RT
      Carton Size 520×470×430mm, 1 Unit/Ctn, Gross Weight: 15.0 kgs, Net Weight: 11.5 kgs A15.2601-RTB,RTT
      Note: "●"In Table Is Standard outfits, "○" Is Optional Accessories
