| Items | A16.2601 Fluorescent Microscope Specification | -B2 | -T2 | -B4 | -T4 | Cata. No. |
| Head | Seidentopf Binocular Head Inclined 30°,Rotatable 360°, Interpupilary Distance 48-75mm | ● | | ● | | A53.2621-B |
| Seidentopf Trinocular Head Inclined 30°,Rotatable 360°, Interpupilary Distance 48-75mm, , Light Split Fixed P20:E80 | | ● | | ● | A53.2621-T |
| Eyepiece | WF10X/20mm (High Eyepoint) | ●● | ●● | ●● | ●● | A51.2602-1020 |
| Nosepiece | Quadruple, Backward | ● | ● | ● | ● | A54.2610-N734 |
| Quintuple, Backward | ○ | ○ | ○ | ○ | A54.2610-N735 |
| Infinity E-Plan Objective | EPLAN 4x/0.10,W.D.=12.1mm | ● | ● | ● | ● | A52.2605-4 |
| EPLAN 10x/0.25,W.D.=4.14mm | ● | ● | ● | ● | A52.2605-10 |
| EPLAN 40x/0.65(S),W.D.=0.58mm | ● | ● | ● | ● | A52.2605-40 |
| EPLAN 100x/1.25(S, Oil),W.D.=0.19mm | ● | ● | ● | ● | A52.2605-100 |
Infinity Plan
Semi-APO Fluorescent Objective | UplanFLN 4x, N.A.0.16,W.D.=17.151mm | ○ | ○ | ○ | ○ | A5F.2611-4 |
| UplanFLN 10x, N.A.0.30,W.D.=7.68mm | ○ | ○ | ○ | ○ | A5F.2611-10 |
| UplanFLN 20x, N.A.0.50,W.D.=1.96mm | ○ | ○ | ○ | ○ | A5F.2611-20 |
| UplanFLN 40x, N.A.0.75,W.D.=0.78mm | ○ | ○ | ○ | ○ | A5F.2611-40 |
| UplanFLN 100x(Oil), N.A.1.30,W.D.=0.15mm | ○ | ○ | ○ | ○ | A5F.2611-100 |
| Working Stage | Mechanical Stage Size: 145 mm×140mm, Travel: 76mmX52mm, Scale: 0.1mm, Double Slide Holder | ● | ● | ● | ● | A54.2601-S04 |
Rackless (Integrated) Stage, Size 140×135mm,
Travel Range 75×35mm, Double Slide Holder | ○ | ○ | ○ | ○ | A54.2601-S12 |
| Focusing | Coaxial Coarse & Fine Focusing, Coarse Focusing Travel Range: 26mm, Fine Focusing Travel Range: 2µm/Division | ● | ● | ● | ● | |
| Condenser | Abbe Condenser N.A.1.25, Iris Diaphragm, Rack & Pinion Up/Down | ● | ● | ● | ● | A56.2614-C06b |
| Illumination | 3W-LED Illumination Systems
Powered By Safety Low Voltage Charger, Input Wide Voltage 100V-240V, Output 5V1A, Support Power Bank Supply For Outdoor Use | ● | ● | ● | ● | A56.2613-3W |
| 12V/20W Halogen Lamp | ○ | ○ | ○ | ○ | A56.2650-20W |
| 6V/30W Halogen Lamp | ○ | ○ | ○ | ○ | A56.2650-30W |
| Field Diaphragm | Upgrade To Kohler Illumnation | ○ | ○ | ○ | ○ | A56.2615-S |
| Filter | Dia.45mm, Blue | ○ | ○ | ○ | ○ | A56.2616-45B |
| Dia.45mm, Green | ○ | ○ | ○ | ○ | A56.2616-45G |
| Dia.45mm, Yellow | ○ | ○ | ○ | ○ | A56.2616-45A |
| Dark Field | Dark Field Condenser, Dry, N.A.0.83-0.91, For 4x10x40x Objective | ○ | ○ | ○ | ○ | A5D.2610-S |
| Polarizing | Analyzer + Polarizer Set | ○ | ○ | ○ | ○ | A5P.2601-S |
| Phase Contrast | Infinity Plan Phase Contrast Objective 10x + Phase Contrast Slide 10x + Phase Contrast Condenser + Telescope 11x + Green Filter | ○ | ○ | ○ | ○ | A5C.2601-10 |
| Infinity Plan Phase Contrast Objective 20x + Phase Contrast Slide 20x + Phase Contrast Condenser + Telescope 11x + Green Filter | ○ | ○ | ○ | ○ | A5C.2601-20 |
| Infinity Plan Phase Contrast Objective 40x + Phase Contrast Slide 40x + Phase Contrast Condenser + Telescope 11x + Green Filter | ○ | ○ | ○ | ○ | A5C.2601-40 |
| Infinity Plan Phase Contrast Objective 100x + Phase Contrast Slide 100x + Phase Contrast Condenser + Telescope 11x + Green Filter | ○ | ○ | ○ | ○ | A5C.2601-100 |
Turret Phase Contrast Attachment
Infinity Plan Phase Contrast Objective 10x20x40x100x, Turret Phase Contrast Condenser 5-Holes, Telescope 11x, Green Filter | ○ | ○ | ○ | ○ | A5C.2603-S |

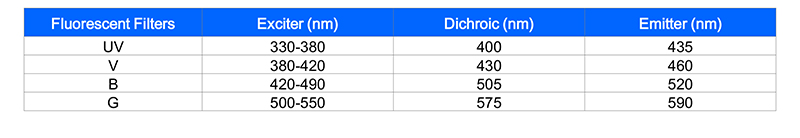

| Fluorescence Unit | Upgrade From A12.2601-C/CT Biological Microscope With:
B,G China Fluorescent Set
100W Mercury Lamp House
100W Mercury Power Box, Digital Disp.
6 Holes Disc Fluorescent Unit
Ultraviolet Protection Barrier
Centering Objective
China 100W Mercury Lamp 2 pcs | ● | ● | | | A5F.2601-2 |
Upgrade From A12.2601-C/CT Biological Microscope With:
B,G,U,UV China Fluorescent Set
100W Mercury Lamp House
100W Mercury Power Box, Digital Disp.
6 Holes Disc Fluorescent Unit
Ultraviolet Protection Barrier
Centering Objective
China 100W Mercury Lamp 2 pcs | | | ● | ● | A5F.2601-4 |
| Adapter | C-Mount 0.5x, Focus Adjustable | ○ | ○ | ○ | ○ | A55.2601-05 |
| C-Mount 0.75x, Focus Adjustable | ○ | ○ | ○ | ○ | A55.2601-75 |
| C-Mount1.0x, Focus Adjustable | ○ | ○ | ○ | ○ | A55.2601-10 |
| Digital Eyepiece Camera Adapter, Dia. 23.2mm/25mm | ○ | ○ | ○ | ○ | A55.2610 |
| Mirror | Reflecting Mirror & Holder | ○ | ○ | ○ | ○ | A56.2601 |
| Attachment | Wire Winding Device | ○ | ○ | ○ | ○ | A50.2602-S |
| Package | Carton Size 970×340×440mm, 1 pc / Ctn |
| Weight | Gross Weight: 22 kgs, Net Weight: 18 kgs |
| Note: "●"In Table Is Standard outfits, "○" Is Optional Accessories | | | | | |
