Specification

A12.0201-A1

A12.0201-A2

A12.0201-B1

A12.0201-B2

Eyepiece

WF10X(Φ20mm)

Objective

Plan 4X/0.10

Plan 4X/0.10

Plan 10X/0.25

Plan 10X/0.25

Plan 20X/0.40

Plan 40X/0.65(Spring)

Plan 40X/0.65(Spring)

Plan 100X/1.25(Spring, oil)

Plan 100X/1.25(Spring, oil)

Head

Binocular

Trinocular

Binocular

Trinocular

Focus System

Coaxial coarse/fine focus system, Minimum division of fine focusing: 2um
With tensional adjustable and up stop,

Nosepiece

Quadruple
backward ball bearing inner locating

Quintuple
backward ball bearing inner locating

Stage

Double layer mechanical, size 160x140mm, moving range 75x50mm

Condenser

Abbe N.A.1.25 Rack & pinion adjustment

Filter

Blue filter

Frosted filter

Collector

For halogen lamp

Light source

6V 20W halogen lamp with brightness control

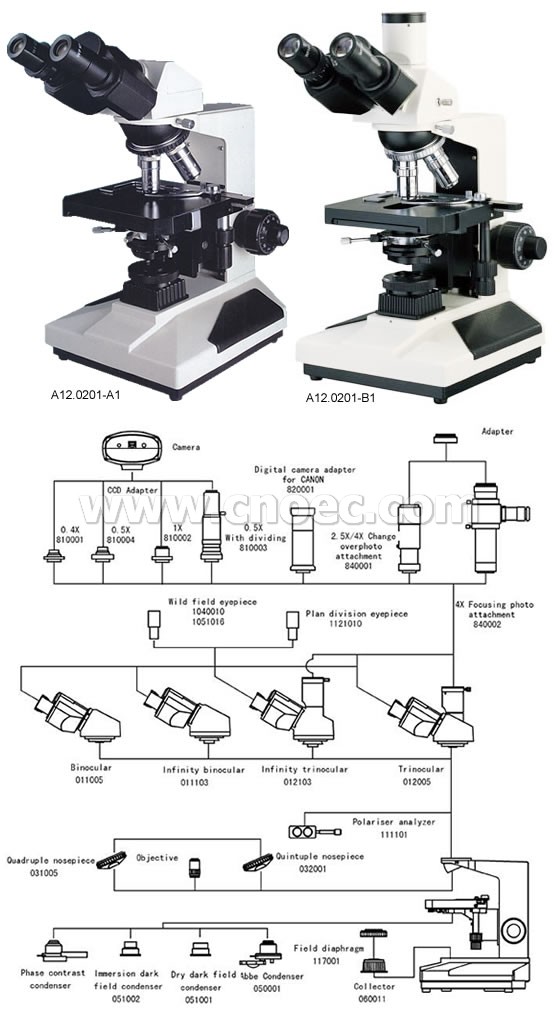

Optional Accessories

Item No.

Eyepiece

Wide field WF16x/11mm

A51.0203-16A

Divding 10x/20mm, 0.1mm/Div

A51.0205-10

Filter

Green filter

A56.0209-02

Yellow filter

A56.0209-03

Condenser

Dark field, dry

A5D.0210-D

Dark field, immersion

A5D.0210-I

Phase Contrast Attachment

Centering telescope

A5C.0212-1

Objective, Phase contrast plan 10x/0.25 PHP

A5C.0230-P10

Objective, Phase contrast plan 20x/0.40 PHP(Spring)

A5C.0230-P20

Objective, Phase contrast plan 40x/0.65 PHP(Spring)

A5C.0230-P40

Objective, Phase contrast plan 100x/1.25 PHP (Spring,oil)

A5C.0230-P100

PH-I Turnplate phase contrast condenser

A5C.0210-1

PH-II Turnplate phase contrast condenser

A5C.0210-4

Flashboard phase contrast set

A5C.0210-2

Pull board phase contrast set

A5C.0210-3

Infinity Optical System

Binocular head inclination of 30°

A53.0203-111

Trinocular head inclination of 30°

A53.0208-1

Centering telescope

A5C.0212-2

Objective, infinity plan achromatic 4x/0.10

A52.0205-04

Objective, infinity plan achromatic 10x/0.25

A52.0205-10

Objective, infinity plan achromatic 20x/0.25

A52.0205-20

Objective, infinity plan achromatic 40x/0.65(Spring)

A52.0205-40

Objective, infinity plan achromatic 100x/1.25(Spring, oil)

A52.0205-100

Objective, infinity phase contrast plan 10x/0.25 PHP

A5C.0233-10

Objective, infinity phase contrast plan 20x/0.40 PHP (Spring)

A5C.0233-20

Objective, infinity phase contrast plan 40x/0.65 PHP (Spring)

A5C.0233-40

Objective, infinity phase contrast plan 100x/1.25 PHP (Spring, oil)

A5C.0233-100

CCD adapter

0.4x

A55.0202-01

0.5x

A55.0202-04

1x

A55.0202-02

0.5x with dividing 0.1mm/Div

A55.0202-03

Digital Camera Adapter

For Canon EF ditigal SLR camera adapter

A55.0204-02

Photo Adapter

2.5x/4x change over photograph attachment with 10x viewing eypiece

A55.0201-01

4x focusing photograph attachment

A55.0201-02

MD adapter

A55.0201-03

PK adapter

A55.0201-04

Polarizing Attachment

Polarizer 360° rotatable

A5P.0210-1

Analyzer

A5P.0211-1
