    Portable Achromatic Binocular Compound Microscope A11.0202 For Lab

    Ask Lasest Price
    Brand Name : CNOEC, OPTO-EDU
    Certification : CE
    Model Number : A11.0202
    Price : Negotiation
    Delivery Time : 5~20 Days
    Payment Terms : T/T, West Union, Paypal
    Supply Ability : 5000 pcs/ Month
    • Product Details
    • Company Profile

    Portable Achromatic Binocular Compound Microscope A11.0202 For Lab

    Portable Achromatic Binocular Compound Microscope A11.0202 For Lab


    A11.0202 biological microscopes are equipped with monocular, achromatic objectives and wide field eyepieces. They have provides clear image, wide field, convenience operation. They can be used for medicine agriculture area widely. They are the ideal instruments in medical treatment, teaching demonstration.


    Features
    - With wide field eyepieces and achromatic objectives, the field of view is widely and clear
    - Separate coarse/fine system focus or coaxial coarse/fine focus system can be chosen, minimum division of fine focusing: 4μm
    ▲ 220V/110V 20W incandescent lamp transmission illumination.

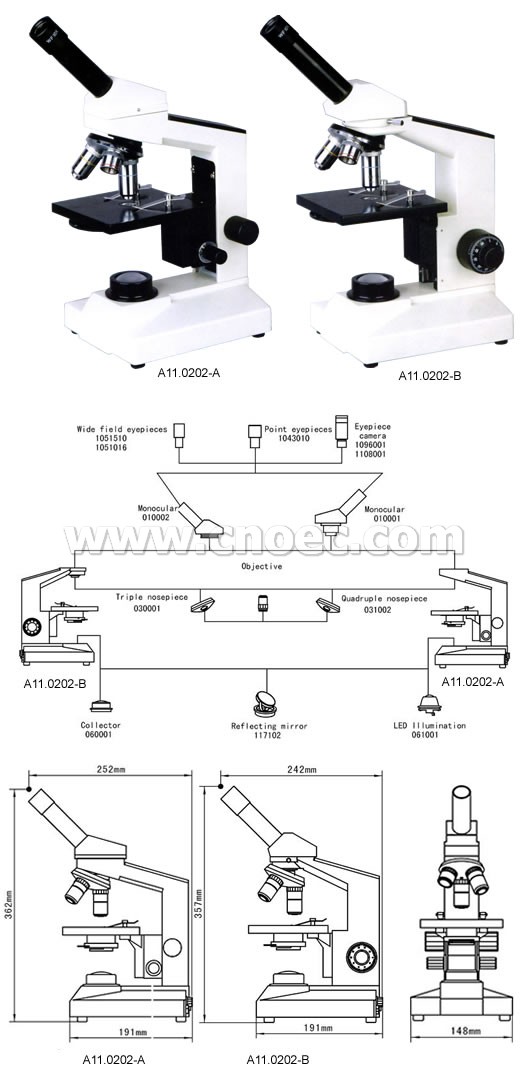

    Model

    A11.0202-A

    A11.0202-B

    Eyepiece

    Wide field WF10X(Φ18mm)

    Objective

    Achromatic 4X/0.10

    Achromatic 10X/0.25

    Achromatic 40X/0.65(Spring)

    Head

    Monocular, 360° rotatable, 45° Inclined

    Focus System

    Separate coarse/fine focusing, Minimum division of fine focusing 0.004mm

    Coaxial coarse/fine focusing, Minimum division of fine focusing 0.004mm

    Nosepiece

    Triple (Frontward ball bearing outer locating)

    Stage

    Fixed, size:120mmX120mm, with single lens and iris diaphragm

    Filter

    Blue filter

    Frosted filter

    Collector

    For incandescent lamp

    Light Source

    220V/110V 20W, Incandescent lamp

    Optional Accessories

    Item No.

    Eyepiece

    Wide field WF16X(Φ11mm)

    A51.0203-16A

    Point 10X(Φ18mm)

    A51.0204

    Objective

    Achromatic 100X/1.25(Spring, oil)

    A52.0201

    Nosepiece

    Quadruple(Frontward ball bearing outer locating)

    A54.0202

    Filter

    Green filter

    A56.0209-3

    Yellow filter

    A56.0209-4

    Light source

    Fluorescent lamp, 5W,110V/220V

    A56.0202-1

    LED Illumination,High brightness white

    A56.0204-1

    Transformer for LED Input: 230V~50/60HZ, Output: 9V,500mA

    A56.0205-1

    Transformer for LED Input: 110V~50/60HZ, Output: 9V,500mA

    A56.0205-2

    Reflecting mirror,Plane-concave reflecting mirror with stand

    A56.0206-1
