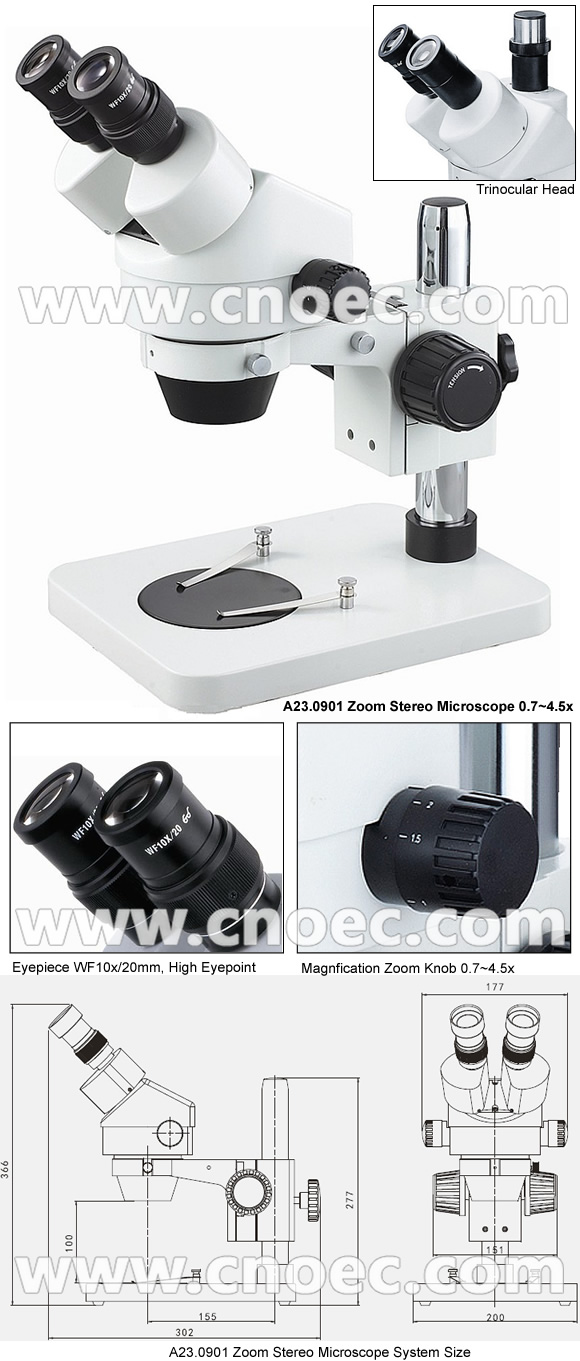

0.7x - 4.5x Stereo Optical Microscope , Zoom Stereo Microscope A23.0901

    Buy cheap 0.7x - 4.5x Stereo Optical Microscope , Zoom Stereo Microscope A23.0901 from wholesalers

    Buy cheap 0.7x - 4.5x Stereo Optical Microscope , Zoom Stereo Microscope A23.0901 from wholesalers
    • Buy cheap 0.7x - 4.5x Stereo Optical Microscope , Zoom Stereo Microscope A23.0901 from wholesalers
    • Buy cheap 0.7x - 4.5x Stereo Optical Microscope , Zoom Stereo Microscope A23.0901 from wholesalers

    0.7x - 4.5x Stereo Optical Microscope , Zoom Stereo Microscope A23.0901

    Ask Lasest Price
    Brand Name : CNOEC, OPTO-EDU
    Certification : CE
    Model Number : A23.0901
    Price : FOB $1~1000, Depend on Order Quantity
    Delivery Time : 5~20 Days
    Payment Terms : T/T, West Union, Paypal
    Supply Ability : 5000 pcs/ Month
    • Product Details
    • Company Profile

    0.7x - 4.5x Stereo Optical Microscope , Zoom Stereo Microscope A23.0901


    0.7x - 4.5x Stereo Optical Microscope , Zoom Stereo Microscope A23.0901



    --0.7~4.5x Zoom Lens, with WF10x/20mm Eyepiece,
    --Total Optical Magnification 7~45x
    --Pole Stand, No Light Source


    A23.0901 Zoom Stereo Microscope Specification

    B1

    T1

    Head

    Binocular Head, 45° inclined, 360°Rotatable, ±5 Diopter Adjustable, Interpupillary Adjustment 54-75mm

    o


    Trinocular Head, 45° inclined, 360°Rotatable, ±5 Diopter Adjustable, Interpupillary Adjustment 54-75mm


    o

    Eyepiece

    WF10x/20mm, High Eyepoin

    Zoom Lens

    0.7~4.5x

    Zoom Ratio

    1:6.5

    Magnification

    7x-45x, Up to 3.5x-180x With Optional Eyepieces and Auxiliary Objectives

    Working Distance

    100mm, With Auxiliary Objectives 30~165mm

    Field of View

    1~95.2mm

    Light Source

    No Light Source

    Stand

    Pole Stand ST1, Height 248mm, Base 200*255*22mm

    A23.0901 Zoom Stereo Microscope Optical Data Sheet

    Objective

    Standard 1.0x

    Auxiliary 0.5X

    Auxiliary 1.5X

    Auxiliary 2X

    W,D.

    100mm

    165mm

    45mm

    30mm

    Eyepiece

    Mag

    View field

    Mag

    View field

    Mag

    View field

    Mag

    View field

    10X/20mm

    7.0X

    28.6mm

    3.5X

    57.1mm

    10.5X

    19mm

    14X

    14.3mm

    45.0X

    4.4mm

    22.5X

    8.9mm

    67.5X

    3mm

    90X

    2.2mm

    15X/15mm

    10.5X

    21.1mm

    5.25X

    42.8mm

    15.75X

    14.3mm

    21X

    10.7mm

    67.5X

    3.3mm

    33.75X

    6.7mm

    101.25X

    2.2mm

    135X

    1.7mm

    20X/10mm

    14.0X

    14.3mm

    7.0X

    28.6mm

    21.0X

    9.5mm

    28X

    7.1mm

    90.0X

    2.2mm

    45.0X

    4.4mm

    135.0X

    1.5mm

    180X

    1.1mm


    A23.0901 Zoom Stereo Microscope Optional Accessories

    Cata. No.

    Head

    Binocular Head + WF10x/20mm

    A23.0901-BH

    Trinocular Head + WF10x/20mm

    A23.0901-TH

    Eyepiece

    WF10x/20mm, High-eyepoint, Outside Dia. 30mm

    A51.0922-10

    WF15x/15mm, High-eyepoint, Outside Dia. 30mm

    A51.0922-15

    WF20x/10mm, High-eyepoint, Outside Dia. 30mm

    A51.0922-20

    WF10x/20mm,with Reticle

    A51.0932-10

    WF15x/15mm,with Reticle

    A51.0932-15

    WF20x/10mm,with Reticle

    A51.0932-20

    Auxiliary Lens

    0.5X,W.D. 165mm

    A52.0927-05

    0.75X,W.D. 105mm

    A52.0927-75

    1.5X,W.D. 45mm

    A52.0927-15

    2.0X,W.D. 30mm

    A52.0927-20

    CCD Adapter

    0.50x, For 1/2" CCD

    A55.0932-05

    0.35x, For 1/3" CCD

    A55.0932-35
