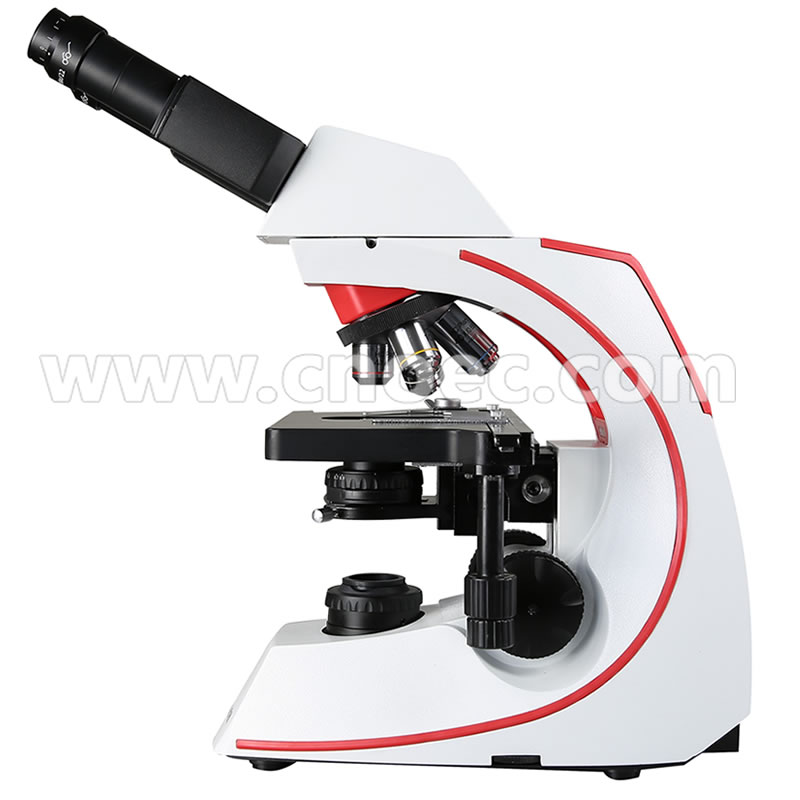

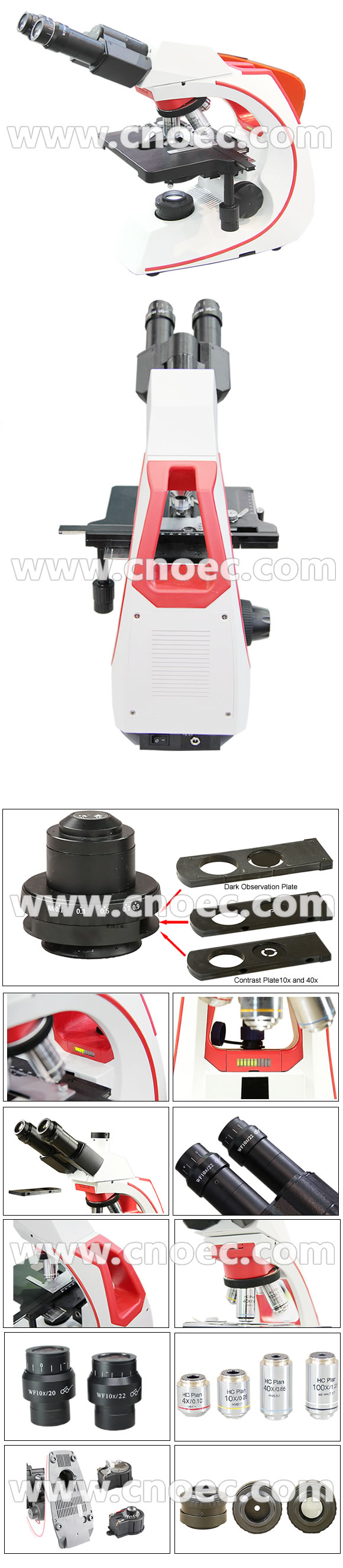

High Contrast Compound Optical Microscope Halogen Illumination Microscopes A12.0810

High Contrast Compound Optical Microscope Halogen Illumination Microscopes A12.0810

--ICCF Infinite High Contrast Achromatic Objectives

Ultra-flat field, high contrast, high-resolution, flat-field full Infinity achromatic objective lens, observe the observation in any way, can be rendered completely natural realistic microscopic images, even weakly stained slices can guarantee excellent imaging results

--High Point, Wild Field Eyepiece
Plan without design, Ultra-flat field(dia 22mm),diopter adjustable.

--Koller Illumination
Adjustable Field Diaphragm

--Exchangable Light
High power LED light and Halogen light can be exhanged without switch or changing electrical board.

-- Design of Microscope is based on ergonomics,easy to operate.

A12.0810 Specification		A	B
Total Magnification	40x-1600x	●	●
Eyepiece	WF10x/20mm, High point,diopter adjustable	●	●
Eyepiece	WF16x/16mm, High point,diopter adjustable	●	●
Head	Compensation brinocular head, 30° inclined, 360° rotatable, interpupillary distance 55-75mm, infinity optical system	●	-
Head	Compensation trinocular head, 30° inclined, 360° rotatable, interpupillary distance 55-75mm, infinity optical system	-	●
Nosepiece	4 Holes revolving nosepiece, inward	●	●
Objective	ICCF Infinity Opitcal HC Plan Achromatic 4x	●	●
	ICCF Infinity Opitcal HC Plan Achromatic10x	●	●
	ICCF Infinity Opitcal HC Plan Achromatic 40x (Spring)	●	●
	ICCF Infinity Opitcal HC Plan Achromatic 100x (Spring, Oil )	●	●
Focusing	Coaxial coarse and fine focusing knob, with tension adjustable ring and rack stop. coarse focusing range 20mm, fine focusing graduation is 0.001mm	●	●
Stage	Double layer mechanical stage, size 145x188mm, moving range 76x54mm	●	●
Condenser	Abbe condenser N.A.=1.25	●	●
Light Source	Kohler illumination,halogen lamp 6V30W and 3W LED can interchange easily	●	●
Power	Input AC90-240Vm,output DC 5V/6A	●	●
Optional Accessories
Eyepiece	WF10x/22mm, diopter adjustable	A51.0802-10
Eyepiece	WF16x/16mm, diopter adjustable	A51.0802-16
Objectvie	ICCF Infinity Opitcal HC Plan Achromatic 20X	A52.0805-20
Objectvie	ICCF Infinity Opitcal HC Plan Achromatic 60X	A52.0805-60
Nosepiece	5 Holes revolving nosepiece, inward	A54.0811
Dark attachment	Dark Plate (10x/40x)	A5D.0811
Phase Contrast Attachement	Infinity Plan High Contrast Achromatic HC PLAN-PH 4X	A5C.0802
	Infinity Plan High Contrast Achromatic HC PLAN-PH 20X
	Infinity Plan High Contrast Achromatic HC PLAN-PH 40X
	Infinity Plan High Contrast Achromatic HC PLAN-PH 100X
	Center Telescope
	Contrast Plate 10x
	Contrast Plate 40x
Polarizing Attachment	Polarizer	A5P.0802-P
Polarizing Attachment	Analyzer	A5P.0802-A
CCD adapter	0.5x	A55.0810-05
	0.65x	A55.0810-65
	1x	A55.0810-10
