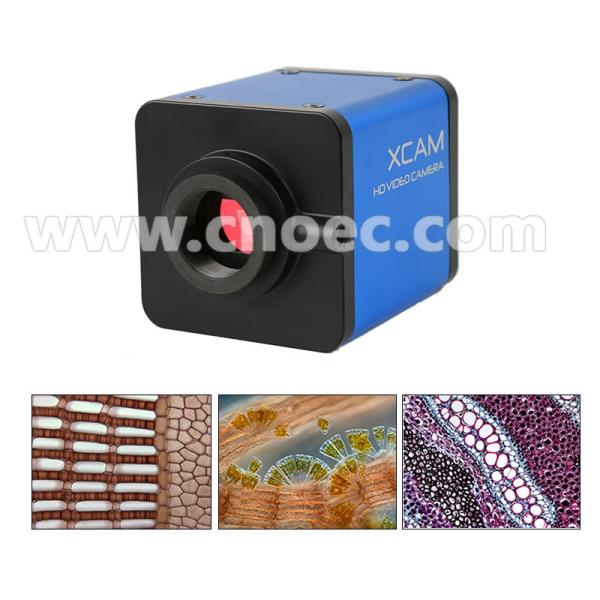

    COMS Camera / VGA Output Digital Microscope Camera Microscope Accessories A59.2217

    Ask Lasest Price
    Brand Name : CNOEC, OPTO-EDU
    Certification : CE
    Model Number : A59.2217
    Price : FOB $1~1000, Depend on Order Quantity
    Delivery Time : 5~20 Days
    Payment Terms : T/T, West Union, Paypal
    Supply Ability : 5000 pcs/ Month
    • Product Details
    • Company Profile

    COMS Camera / VGA Output Digital Microscope Camera Microscope Accessories A59.2217

    COMS Camera / VGA Output Digital Microscope Camera Microscope Accessories A59.2217


    --Through standard VGA 15pin or HDMI interface to stream the video to displayer or HDTV


    --Easy connecting to other equipment on the production line with the C-mount optical interface.

    --High-resolution and high frame rate, perfect color reproduction, highly integrated and compact, low failure rate and stable performance.

    --1280 × 720 (720P) resolution to match the current high-definition displayer on the market.

    --Supporting various OSD cursors which can be toggled On/Off (functions shift as users press the button). The OSDs including: scale, double horizontal line, double vertical line, double cross line, Tri-cross line.


    A59.2217 Digital Camera,VGA

    Image Pickup Device

    Aptina MT9P03 CMOS(Color)

    Scan Mode

    Progressive

    Max. Resolution

    1280 x 720 (Approx.921,600 Pixels)

    Sensor Size (Diagonal)

    1/2.5“ (5.70mm(H) x 4.28mm(V), Diagonal 7.13mm)

    Pixel Size

    2.2µm x 2.2µm

    G Sensitivity

    1.4v/lux-sec(550nm)

    Dynamic Range

    70.1dB

    A/D Converter

    12-bit Parallel, 8-bit R.G.B

    SN Ratio

    38.1dB

    Spectral Range

    380-650nm (with IR-filter)

    Video Format & Frame Rate

    30fps @1280 x 960

    Binning

    1 x 1

    Exposure

    0.21~33ms, Auto & Manual

    White balance

    Auto / Manual

    Color Rendering Technique

    Ultra Fine Color Engine

    Peak Quantum Efficiency

    NA

    Readout Noise

    N/A

    Extinction Ratio

    N/A

    Smear

    N/A

    Cooling System*

    Natural

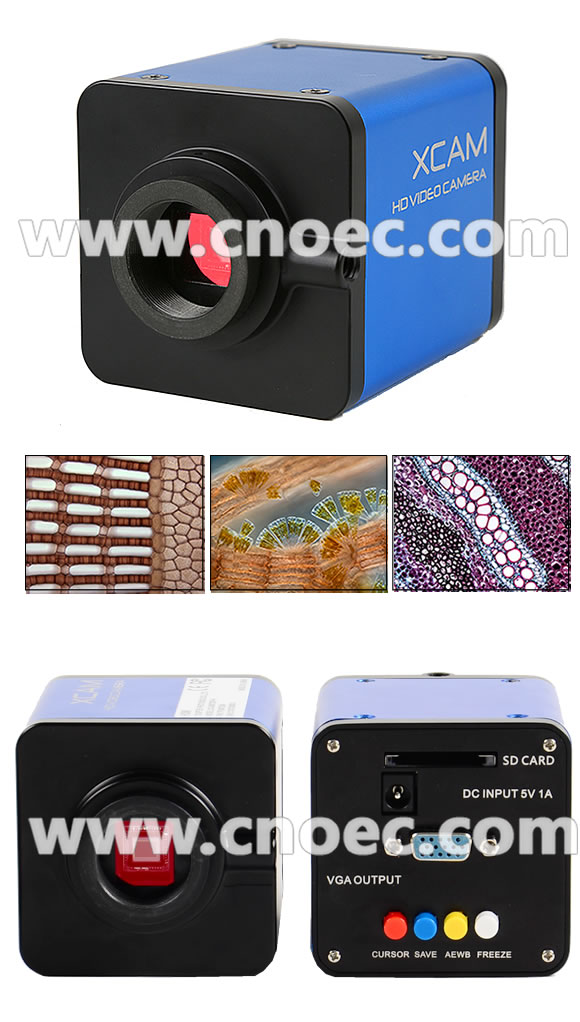

    INTERFACE

    1X VGA Output Port

    1X SD Card Slot

    1X Power Input Slot

    1X Remote Switch Slot

    Width X Depth X Height

    68mm (2.67") X 68mm (2.67") X 92mm (3.62")

    Shipping Weight

    0.25 kg (0.55lbs)

    Operating Environment

    Operating Temperature

    -10℃~ 50℃

    Storage Temperature

    -20℃~ 60℃

    Operating Humidity

    30~80%RH

    Storage Humidity

    10~60%RH

    Power Supply

    DC 5V over PC USB Port


    Optional Accessory

    Lens

    C-mount Lens

    Cable

    VGA Cable

    Memory Card

    SD Card

    Remote Image Save Switch

    2.5mm Headphone Jack Remote Image Save Switch
