Brand Name : | CNOEC, OPTO-EDU |
Model Number : | A11.1550 |
Certification : | CE|Rohs |
Price : | Negotiation |
Payment Terms : | T/T, West Union, Paypal |
Supply Ability : | 5000 pcs/ Month |
Delivery Time : | 5~20 Days |

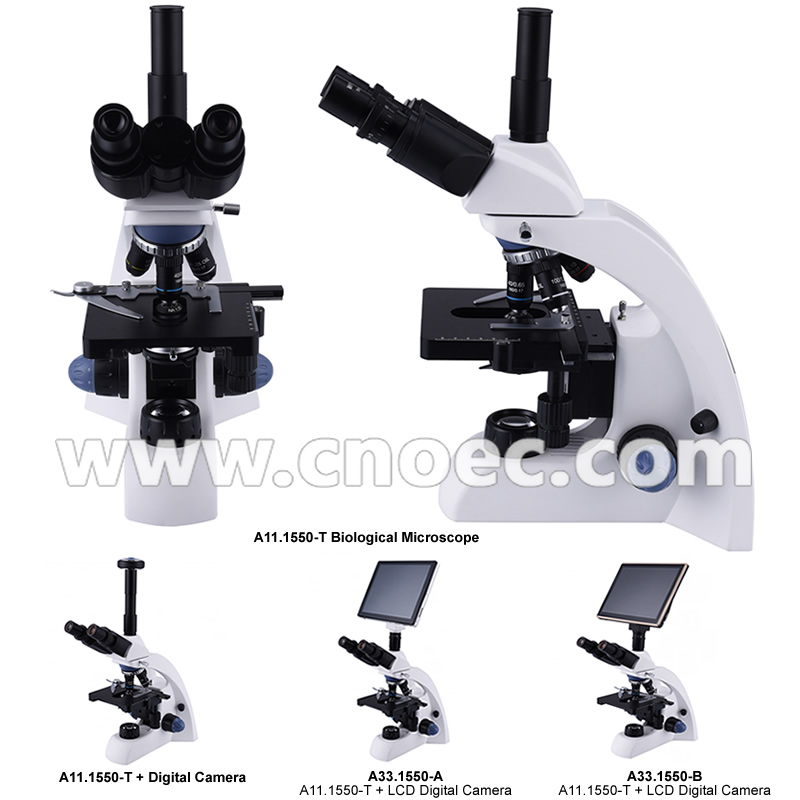

Finity Optical System WF10X/18mm Biological Microscope A11.1550 With Halogm Lamp Illumination
Specifications:
A11.1550 Biological Microscope | |||
---|---|---|---|
A11.1550-B | A11.1550-T | ||
Optical System | Finity Optical System | ||
Head | Seidentopf Binocular Viewing Head, Inclined at 30º ,360ºRotatable | Seidentopf Trinocular Head,Inclined at 30º ,360ºRotatable | |
Eyepiece | Wide Field Eyepiece WF10X/18mm | ||
Objective | Achromatic Objectives 4X 10X 40Xs 100Xs(oil) | ||
Nosepiece | Quadruple Nosepiece | ||
Condenser | Abbe Condenser N.A.1.25 with Diaphragm, Filter | ||
Focusing System | Coaxial Coarse and Fine Adjustment, Fine Division 0.002mm, Coarse Stroke36mm | ||
Stage | Double Layer Mechanical Stage 142x132mm , Moving Range75mmx50mm | ||
Illumination | 6V/20W Halogm Lamp,Brightness Adjustment | ||
Adapter | N/A | Eyepiece Tube Adapter | |
A11.1550 Biological Microscope Optional Accessories | |||
Eyepiece | Wide Field Eyepiece WF16X/13mm | A51.1503 | |
Wide Field Eyepiece WF20X/11mm | A51.1503 | ||
Objective | Plan Achromatic CF Objectives 4X 10X 40Xs 100Xs(oil) | A52.1510 | |
Nosepiece | Quintuple Nosepiece | A54.1502-5A | |
Illumination | 3W/LED Adjustment Rechargeable Battery | A56.1503 | |
CCD Adapter | 1.0x | A55.1550-10 | |
0.5x | A55.1550-05 |
![]() |
