| Items | A31.2601 Digital Biological Microscope Specification | 3.2M | 5.0M | Cata. No. |

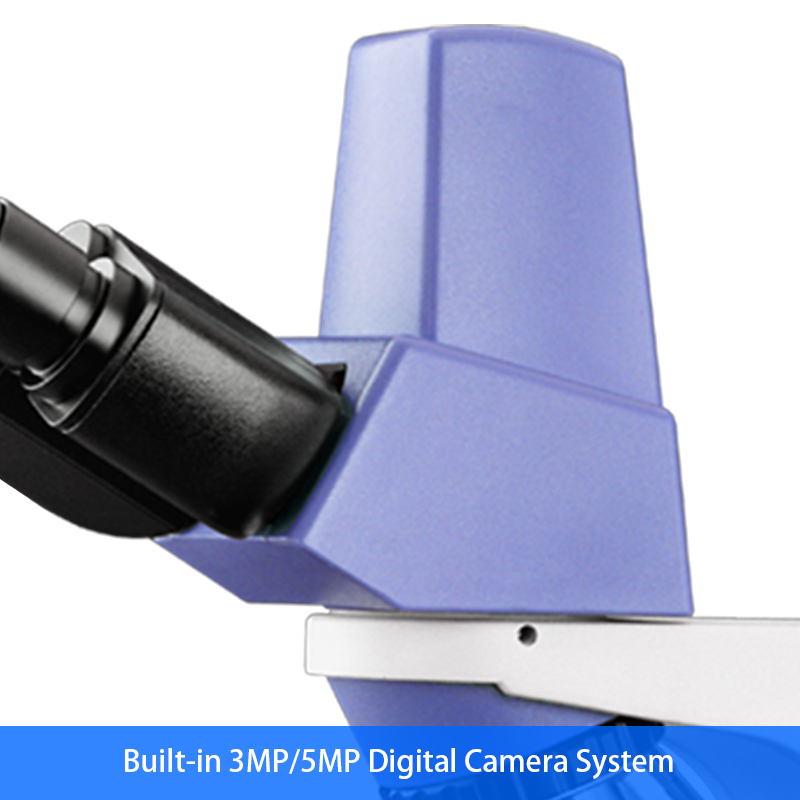

| Digital Camera | 3.2M Pixels, 1/2"CMOS, USB 2.0 | ● | | |
| 5.0M Pixels, 1/2"CMOS, USB 2.0 | | ● | |
| Head | Seidentopf Binocular Head , Inclinded 30°, 360° Rotatable, Interpupillary Distance 50-75mm |

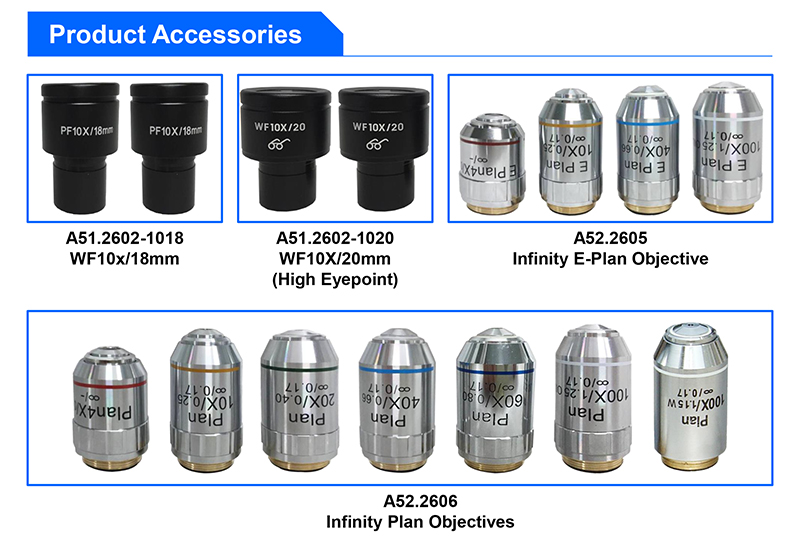

| Eyepiece | WF10x/18mm | ○○ | ○○ | A51.2602-1018 |
| WF10X/20mm (High Eyepoint) | ●● | ●● | A51.2602-1020 |
| Nosepiece | Quadruple, Backward | ● | ● | A54.2610-N734 |
| Quintuple, Backward | ○ | ○ | A54.2610-N735 |
| Infinity E-Plan Objective | EPLAN 4x/0.10,W.D.=12.1mm | ● | ● | A52.2605-4 |
| EPLAN 10x/0.25,W.D.=4.14mm | ● | ● | A52.2605-10 |
| EPLAN 20x/0.4 | ○ | ○ | A52.2605-20 |
| EPLAN 40x/0.65(S),W.D.=0.58mm | ● | ● | A52.2605-40 |
| EPLAN 100x/1.25(S, Oil),W.D.=0.19mm | ● | ● | A52.2605-100 |
| Infinity Plan Objectives | PLAN 2.5x/0.07,W.D.=8.47mm | ○ | ○ | A52.2606-2.5 |
| PLAN 4X/0.10.W.D.=12.1mm | ○ | ○ | A52.2606-4 |
| PLAN 10X/0.25.W.D.=4.64mm | ○ | ○ | A52.2606-10 |
| PLAN 20X/0.40(S).W.D.=2.41mm | ○ | ○ | A52.2606-20 |
| PLAN 40X/0.66(S).W.D.=0.65mm | ○ | ○ | A52.2606-40 |
| PLAN 60X/0.80(S).W.D.=0.33mm | ○ | ○ | A52.2606-60 |
| PLAN 100X/1.25(S,Oil).W.D.=0.12mm | ○ | ○ | A52.2606-100 |
| PLAN 100X/1.15(S,Water).W.D.=0.19mm | ○ | ○ | A52.2606-100W |
| Working Stage | Mechanical Stage Size: 145 mm×140mm, Travel: 76mmX52mm, Scale: 0.1mm, Double Slide Holder | ● | ● | A54.2601-S04 |
Rackless (Integrated) Stage, Size 140×135mm,
Travel Range 75×35mm, Double Slide Holder | ○ | ○ | A54.2601-S12 |
| Focusing | Coaxial Coarse & Fine Focusing, Coarse Focusing Travel Range: 26mm, Fine Focusing Travel Range: 2µm/Division | ● | ● | |
| Condenser | Abbe Condenser N.A.1.25, Iris Diaphragm, Rack & Pinion Up/Down, With Filter Holder | ● | ● | A56.2614-C06b |
| Illumination | 3W-LED Illumination Systems
Powered By Safety Low Voltage Charger, Input Wide Voltage 100V-240V, Output 5V1A, Support Power Bank Supply For Outdoor Use | ● | ● | A56.2613-3W |
| Field Diaphragm | Upgrade To Kohler Illumnation | ○ | ○ | A56.2615-S |
| Dark Field | Dark Field Condenser, Dry, N.A.0.83-0.91, For 4x10x40x Objective | ○ | ○ | A5D.2610-S |
| Polarizing | Analyzer + Polarizer Set | ○ | ○ | A5P.2601-S |
| Phase Contrast | Infinity Plan Phase Contrast Objective 10x + Phase Contrast Slide 10x + Phase Contrast Condenser + Telescope 11x + Green Filter | ○ | ○ | A5C.2601-10 |
| Infinity Plan Phase Contrast Objective 20x + Phase Contrast Slide 20x + Phase Contrast Condenser + Telescope 11x + Green Filter | ○ | ○ | A5C.2601-20 |
| Infinity Plan Phase Contrast Objective 40x + Phase Contrast Slide 40x + Phase Contrast Condenser + Telescope 11x + Green Filter | ○ | ○ | A5C.2601-40 |
| Infinity Plan Phase Contrast Objective 100x + Phase Contrast Slide 100x + Phase Contrast Condenser + Telescope 11x + Green Filter | ○ | ○ | A5C.2601-100 |
Turret Phase Contrast Attachment
Infinity Plan Phase Contrast Objective 10x20x40x100x, Turret Phase Contrast Condenser 5-Holes, Telescope 11x, Green Filter | ○ | ○ | A5C.2603-S |
| Mirror | Reflecting Mirror & Holder | ○ | ○ | A56.2601 |
| Attachment | Wire Winding Device | ○ | ○ | A50.2602-S |
| Package | Carton Size 575*380*550mm, 1 Unit/Ctn |
| Weight | Gross Weight 8.0kgs, Net Weigth 7.0kgs |
| Note: "●"In Table Is Standard outfits, "○" Is Optional Accessories |
