C - Mount Digital Microscope Camera A59.4910 With USB2.0 High Speed
Port Or Compatible Port
Introduction
A59.4910 Camera eyepiece is upgrade version of A59.4904. It can be connected to any standard trinocular biological
microscopes, stereo microscopes, metallographic microscopes, etc.
It has advantages of high frame rate, very nice color performance,
clear image, convenient storage, widely used in industrial
inspection, teaching research, clinical test, material analysis,
machine vision, etc.
A59.4910 has compact design, with USB cable (demountable and non-demountable
USB cable available), users just need to plug and play. And the
software used is not only provide snapshot, record, zoom control,
contrast, brightness, saturation, but also professional measurement functions.
| A59.4910 Hardware Configuration |
| Image Sensor | Color |
| Expose | Rolling Shutter |
| Maximum Resolution | 2592x1944(5,038,848 Pixels) |
| Sensor Optical Format | 1/2.5" (5.70mm(H) x 4.28mm(V), Diagonal 7.13mm) |
| Pixel Size | 2.2μm x 2.2μm(BSI) |
| Dynamic Range | 74.3 dB Linear, More Than 96 dB (Interleaved) |
| SNRmax | 40dB |
| Spectral Charatristics | 380-650nm |
| Exposure Capability | 3.9ms-320ms, Automatic And Manual |
| White Balance | Automatic And Manual |
| Preview Modes | 30FPS @2592X1944,
30FPS @1920X1080
30FPS @800X600, 640X480 |
| Record Format | Snapshot
Picture Format: JPG, BMP, PNG, TIFF, PDF
Resolution: 2592x1944, 1920x1080, 800x600, 640x480
Record
Video Format: MJPG Format AVI File
Resolution: 1920x1080, 800x600, 640x480 |
| Softwware Environment |
| Windows System Demand | Microsoft®Windows® XP/7/8/8.1/10 (32&64 Bit) |
| CPU: Equal Or More Than The Second Generation Intel Core 2.8GHz |
| Memory: 2G Or More |
| USB Port: USB 2.0 High Speed Port Or Compatible Port |
| Displayer: Suggest 17 Inches Or Larger |
| Operating Environment |
| Operating Temperature | 0℃-40℃ |
| Storage Temperature | -20℃-60℃ |
| Operating Humidity | 30-80%RH |
| Storage Humidity | 10-60%RH |
| Power Supply | Direcct-Current 5V, Supply By USB Port |
1. A closed structure with color filter inside, preventing dust from
CMOS sensor. Standard C-mount, optional accessories adapters
(23.2mm /30mm /30.5mm).
2. Structured with commonly used tripod mount (1/4-20A standard). Reliable electronic double plates design, resolve the problem of
heat radiation in long working time.
3. A59.4910 camera eyepiece can make your work become easy, interesting and efficient. It’s an ideal microscopic imaging system.
With maximum 2.5k x 2k resolution and 10 fps frame rate, the device displays the zoomed screen easily;
Rotate preview image with any angle for getting better observation
easily;

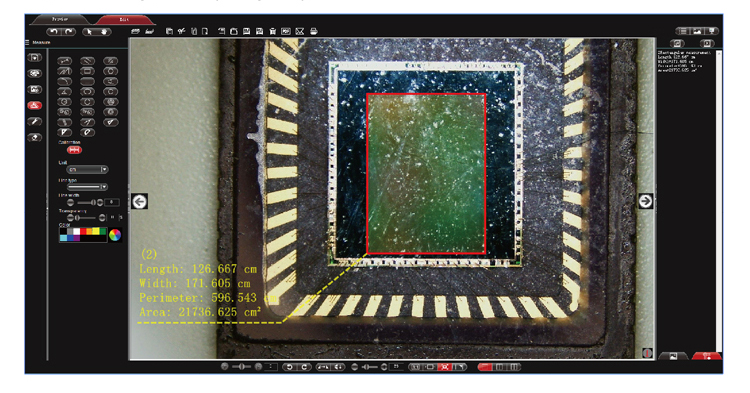

Embed 18 measure tools, support dynamic & static annotate and
measure;
Smart time-lapse to full tracking on process of changing (such as
cell division).

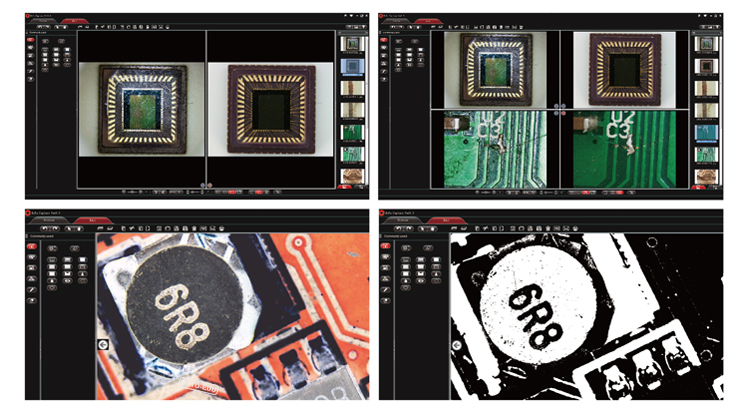

Support two screens and four screens display for comparative
analysis;
Embed 13 image special effect tools ;
Support 5 languages for software operation.
One key to export measure results to Word Excel Outlook;
Support “Hot Plug”, humanity design, fully consider for users.
