    0.7~4.5X Zoom Lens Stereo Optical Microscope A23.1502 With WF 10x/20mm Eyepiece

    Ask Lasest Price
    Brand Name : CNOEC, OPTO-EDU
    Model Number : A23.1502
    Certification : CE|Rohs
    Price : FOB $1~1000, Depend on Order Quantity
    Payment Terms : T/T, West Union, Paypal
    Supply Ability : 5000 pcs/ Month
    Delivery Time : 5~20 Days
    • Product Details
    • Company Profile

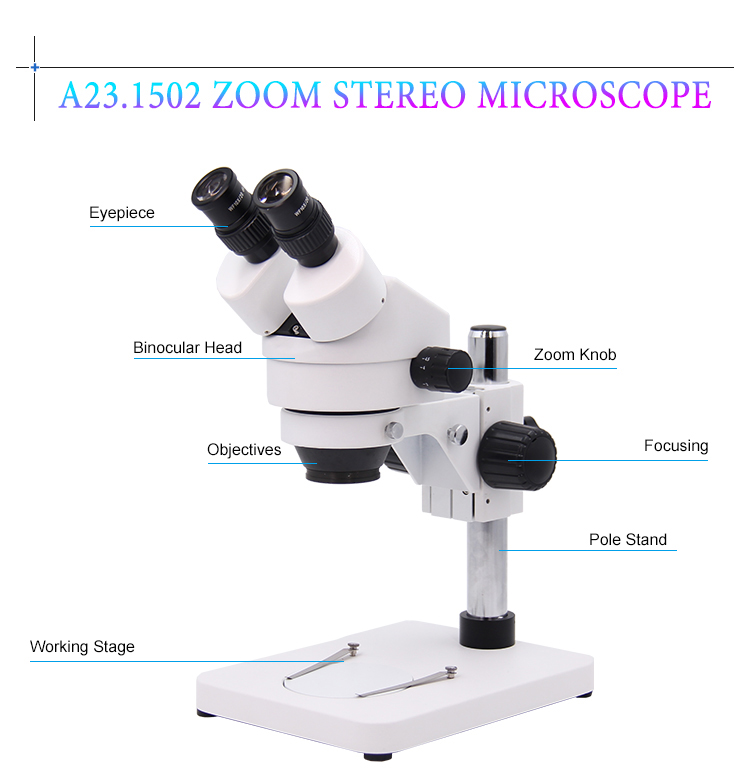

    0.7~4.5X Zoom Lens Stereo Optical Microscope A23.1502 With WF 10x/20mm Eyepiece


    0.7~4.5X Zoom Lens Stereo Microscope A23.1502 With WF 10x/20mm Eyepiece


    Introduction

    A23.1502 is a type of stereo microscope whose price is a litter bit higher than others, because it is a professional stereo microscope in teaching demonstration, biological engineering, IT testing and some other fields. With zoom lens 0.7-4.5x, you can get the continuous zoom image you need. A23.1502 has high eyepoint with WF10x/20mm eyepiece, and the field of view is 1~95.2mm.



    A23.1502 Zoom Stereo Microscope SpecificationB1T1

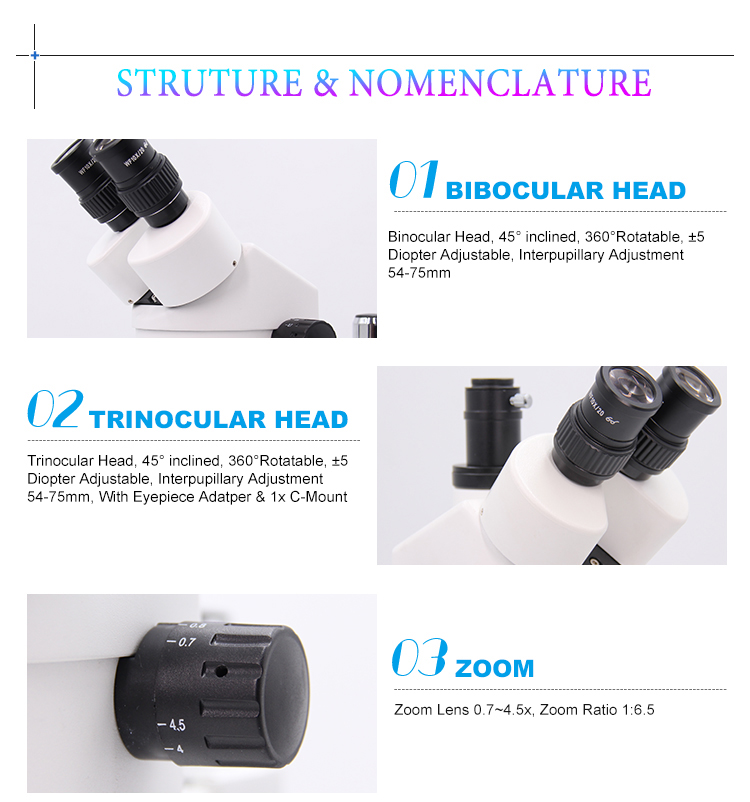

    HeadBinocular Head, 45° Inclined, 360°Rotatable, ±5 Diopter Adjustable, Interpupillary Adjustment 54-75mmo
    Trinocular Head, 45° Inclined, 360°Rotatable, ±5 Diopter Adjustable, Interpupillary Adjustment 54-75mmo
    EyepieceWF10x/20mm, High Eyepoint
    Zoom Lens0.7~4.5x
    Zoom Ratio1:6.5
    Magnification7x-45x, Up To 3.5x-180x With Optional Eyepieces And Auxiliary Objectives
    Working Distance100mm, With Auxiliary Objectives 30~177mm
    Field Of View1~95.2mm
    Light SourceNo Light Source
    StandPole Stand ST1, Height 248mm, Base 200*255*22mm

    0.7~4.5X Zoom Lens Stereo Optical Microscope A23.1502 With WF 10x/20mm Eyepiece

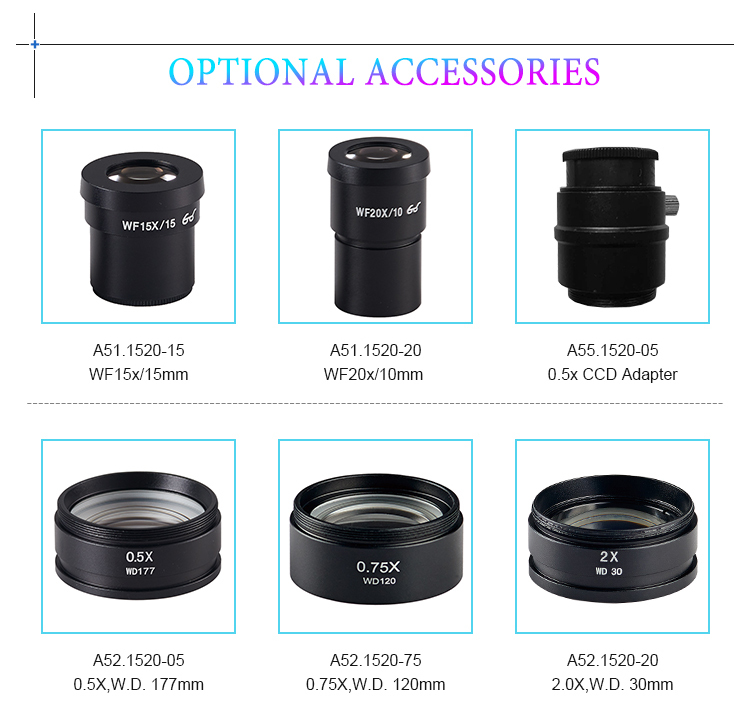

    A23.1502 Zoom Stereo Microscope Optional AccessoriesCata. No.
    EyepieceWF15x/15mm, High eyepointA51.1520-15
    WF20x/10mm, High eyepointA51.1520-20
    Auxiliary Lens0.5x,W.D. 177mmA52.1520-05
    0.75x,W.D. 120mmA52.1520-75
    2.0x,W.D. 30mmA52.1520-20
    CCD Adapter0.5xA55.1520



    Application

    Zoom stereo microscope is widely used in teaching demonstration, bio-engineering, IT industry testing and other fields. A23.1502 has a high resolution and large field of view clarity, so it is also good at electronics industry and precision machinery industry parts assembly and testing, agricultural seed inspection and so on.

    0.7~4.5X Zoom Lens Stereo Optical Microscope A23.1502 With WF 10x/20mm Eyepiece
