    Led Fluorescent Light Microscopy A16.2601-l With Double Layer Mechanical Stage

    Ask Lasest Price
    Brand Name : CNOEC, OPTO-EDU
    Model Number : A16.2601-L
    Certification : CE, Rohs
    Price : Negotiation
    Payment Terms : T/T, West Union, Paypal
    Supply Ability : 5000 pcs/ Month
    Delivery Time : 5~20 Days
    • Product Details
    • Company Profile

    Led Fluorescent Light Microscopy A16.2601-l With Double Layer Mechanical Stage

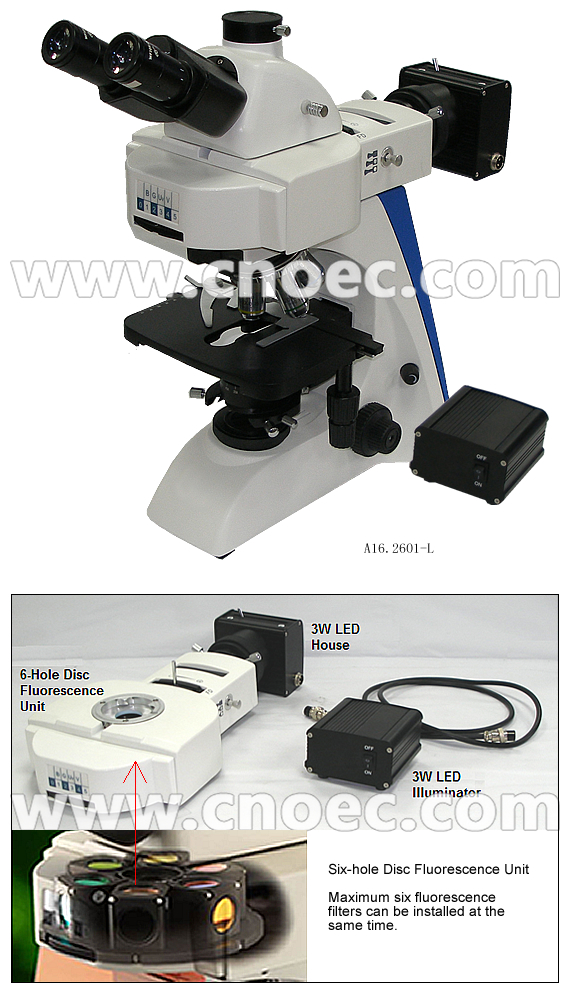

    LED Fluorescence Light Microscope A16.2601-L


    Specification
    A16.2601-L-B2
    A16.2601-L-T2
    A16.2601-L-B4
    A16.2601-L-T4
    Seidentopf Viewing Head
    Binocular

    Trinocular

    Binocular
    Trinocular
    30° inclined, Interpupilary distance 50-75mm, For trinocular head, light distribution (binocular tube:photo tube): both 100:0 and 20:8030° inclined, Interpupilary distance 50-75mm, For trinocular head, light distribution (binocular tube:photo tube): both 100:0 and 20:80
    EyepieceWF10x/20mm
    ObjectiveInfinity Plan Achromatic Objective 4x / 0.10
    Infinity Plan Achromatic Objective 10x / 0.25
    Infinity Plan Achromatic Objective 20x / 0.40(s)
    Infinity Plan Achromatic Objective 40x / 0.66(s)
    Infinity Plan Achromatic Objective 100x / 1.25(s, oil)
    Focusing SystemLow positioned, coaxial coarse and fine focusing knobs
    NosepieceQuintuple
    StageDouble layer mechanical, size 175x145mm, moving range 78x55mm, two slide holder
    CondenserAbbe N.A.1.25 with aperture iris diaphragm
    Fluorescent Attachment
    Fluorescent Filter (B,G)

    Fluorescent Filter (UV,V) are under development

    Six-hole Disc Epi-Fluorescence Set
    3W LED Lamp House
    3W LED Power Supply
    Transmitted IlluminationKoehler, 6V20W Halogen Lamp With Brightness Adjustable
    FilterBlue
    Power Supply100-240V, 50/60Hz
    PackingCarton, Size 99x34x40cm, G/N weight 23/20Kgs
    Optional Accessories
    Item No.
    EyepieceWF16x/13mmA51.2602-16
    WF10x/18mm with pointerA51.2604-10
    WF10x/20mm with micrometer 0.1mm/DivA51.2605-10A
    ObjectiveInfinity Plan Objectives 2.5x/0.07A52.2606-2.5
    Infinity Plan Objectives 60x/0.80(s)A52.2606-60
    Light SourceUpgrade to 6V 30WA56.2650
    LED Fluorescent AttachmentChroma Filter, Wavelength 455nm Speically Used for Tuberculosis InspectionA5F.2602-TB
    CondenserSwing out achromatic condenser N.A.0.9/0.13A56.2614-2
    Filtergreen,A56.2616-G
    grayA56.2616-N
    yellowA56.2616-Y
    CCD AdapterC-Mount 0.57xA55.2601-BK057
    C-Mount 1.0xA55.2601-BK10
    Digital Camera AdapterFor CANON digital cameraA55.2621
    For OLYMPUS digital cameraA55.2620
    For NIKON SLR digital cameraA55.2622-N
    For SONY SLR digital cameraA55.2622-S
    For Canon SLR digital cameraA55.2622-C
